–remove the dirt with a jet of compressed air;
– apply an unlocking spray and repeat the pin-
ion movement;
– clean again with a jet of compressed air when
movement becomes smooth;
– apply more unlocking spray as a lubricant.
Avoid the use of grease or oil that could favour
the accumulation of dirt.

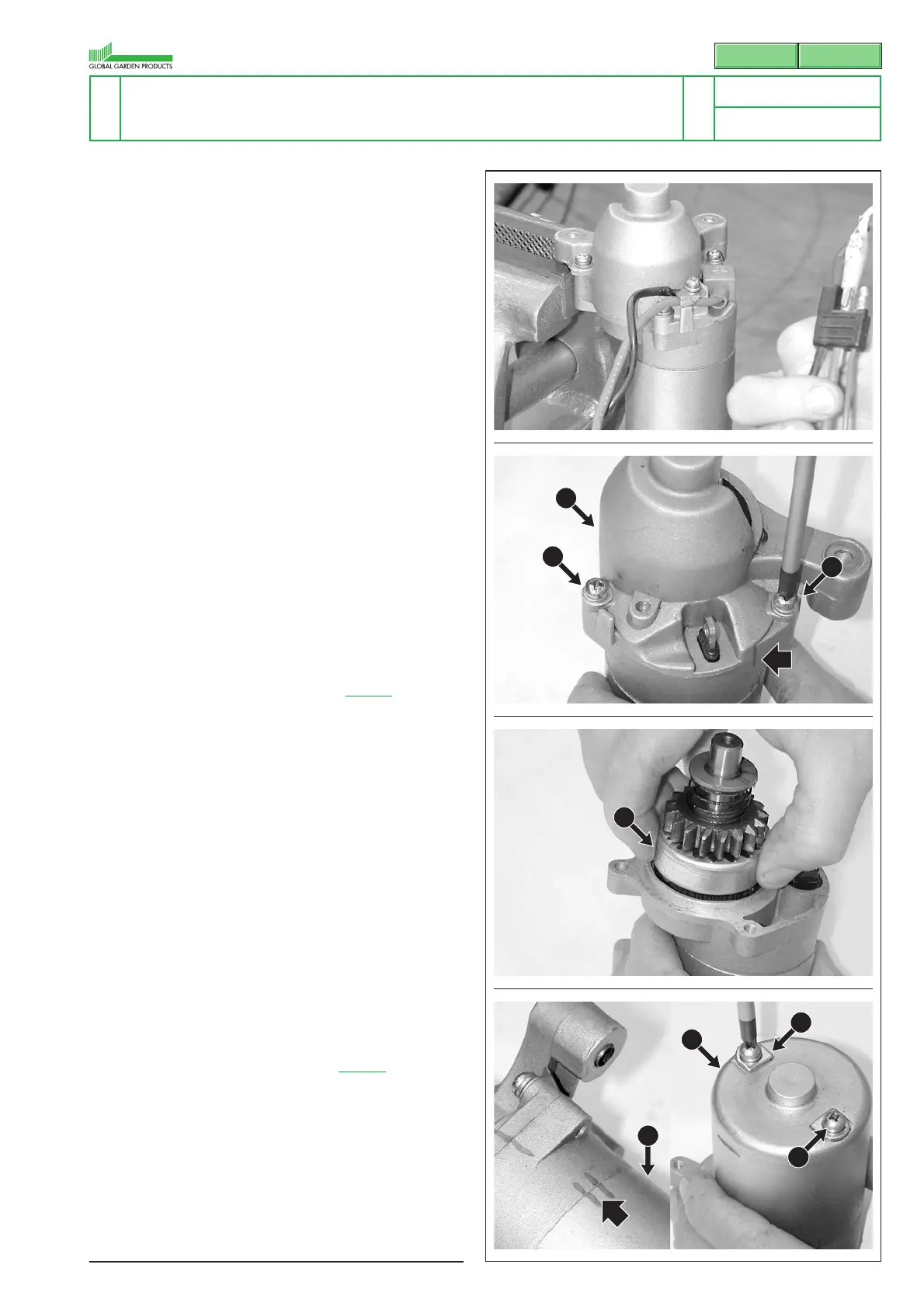

14 Fix the motor in a vice, connect it to a 12 Volt
battery for 15-20 seconds and check that it
operates regularly without overheating.
15 If operation is noisy, make a reference mark on
the joint between the starter motor body and
the pinion housing (13) and unscrew the three
screws (14) to remove the pinion housing.
16 Extract the pinion group (15) and check the con-
dition of the gears below.
17 Remount the pinion housing matching up the
reference marks.
18 Remount the starter motor [
6.11.A].
C) Removing and checking the starter motor
rotor
21 Remove the starter motor [ 6.11.A
].
22 Make a reference mark on the joint between the
motor body and the lower cover (21) of the elec-
trical part, unscrew the two screws (22) and
remove the cover (21).
23 Remove the lower cover (21) taking care not to
damage the sealing ring (23).
6.11.0 - ELECTRICAL STARTING SYSTEM
AND RECHARGE ALTERNATOR
2 / 4
SERVICE MANUAL
page
from
2007 to ••••
4/2007© by GLOBAL GARDEN PRODUCTS
SV200 R200
13
14
14
15
21
21
22
22
