Installation Manual Series CF (excluding encapsulated screw compressors) 23042013 Rev. A / May 2007 26 of 60
8 Annex I Technical data
CF75G Technical data (Page 1 of 3)
Dimensions: 510 mm x 319 mm x 225 mm (LxWxH)
Weight: 70 kg
Permissible areas of operation:
min max
Speed of male rotor 1787 1/min 8935 1/min
Suction pressure 0.62 bar(abs)
atmospheric
pressure
Discharge pressure 6 bar(abs) * 16 bar(abs)
Discharge temperature 110°C
Gear ratio 1.0984 3.2667
* without additional oil pump

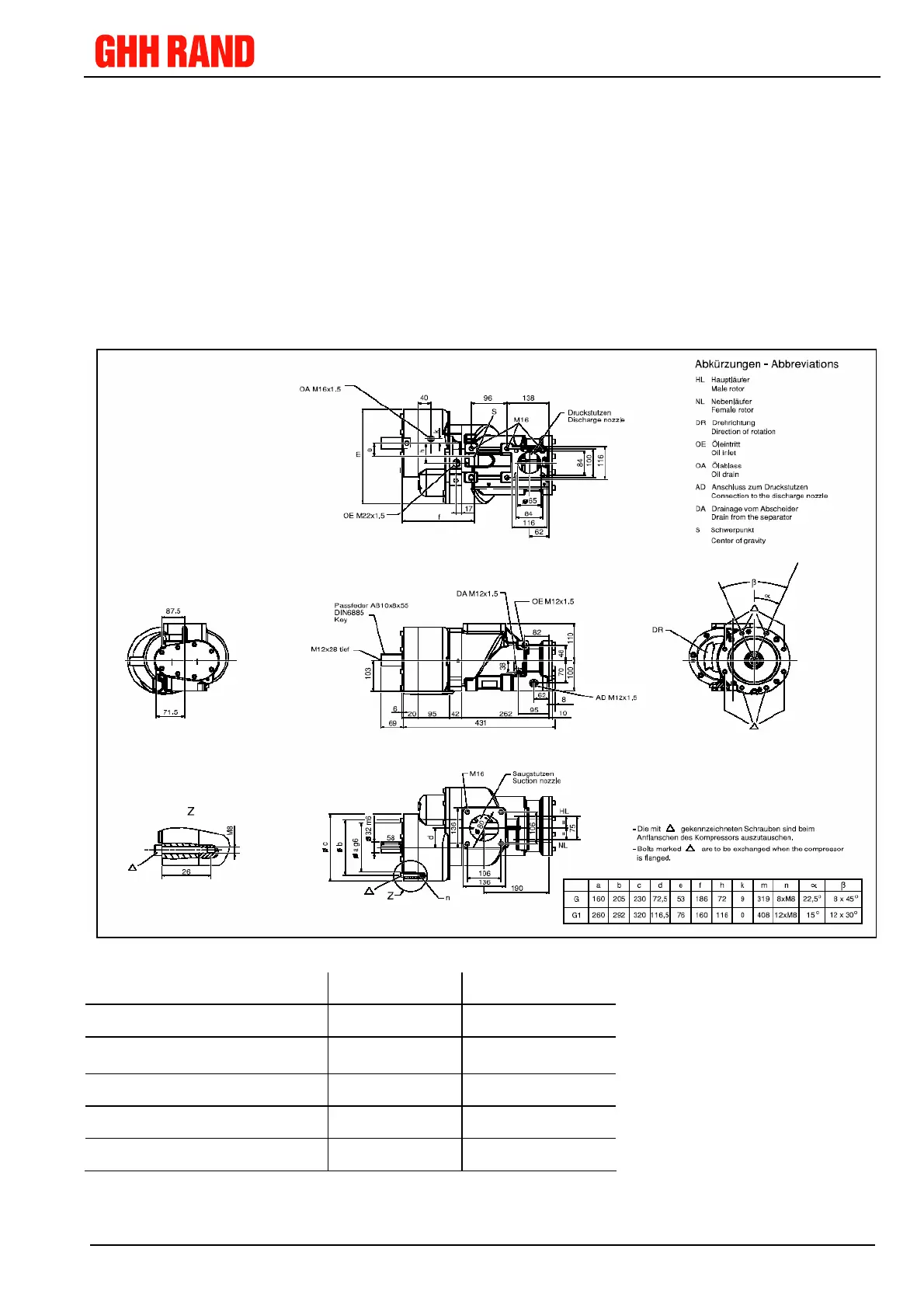

Installation drawing and 3D-files
separately available. Current ver-
sions available upon request.
