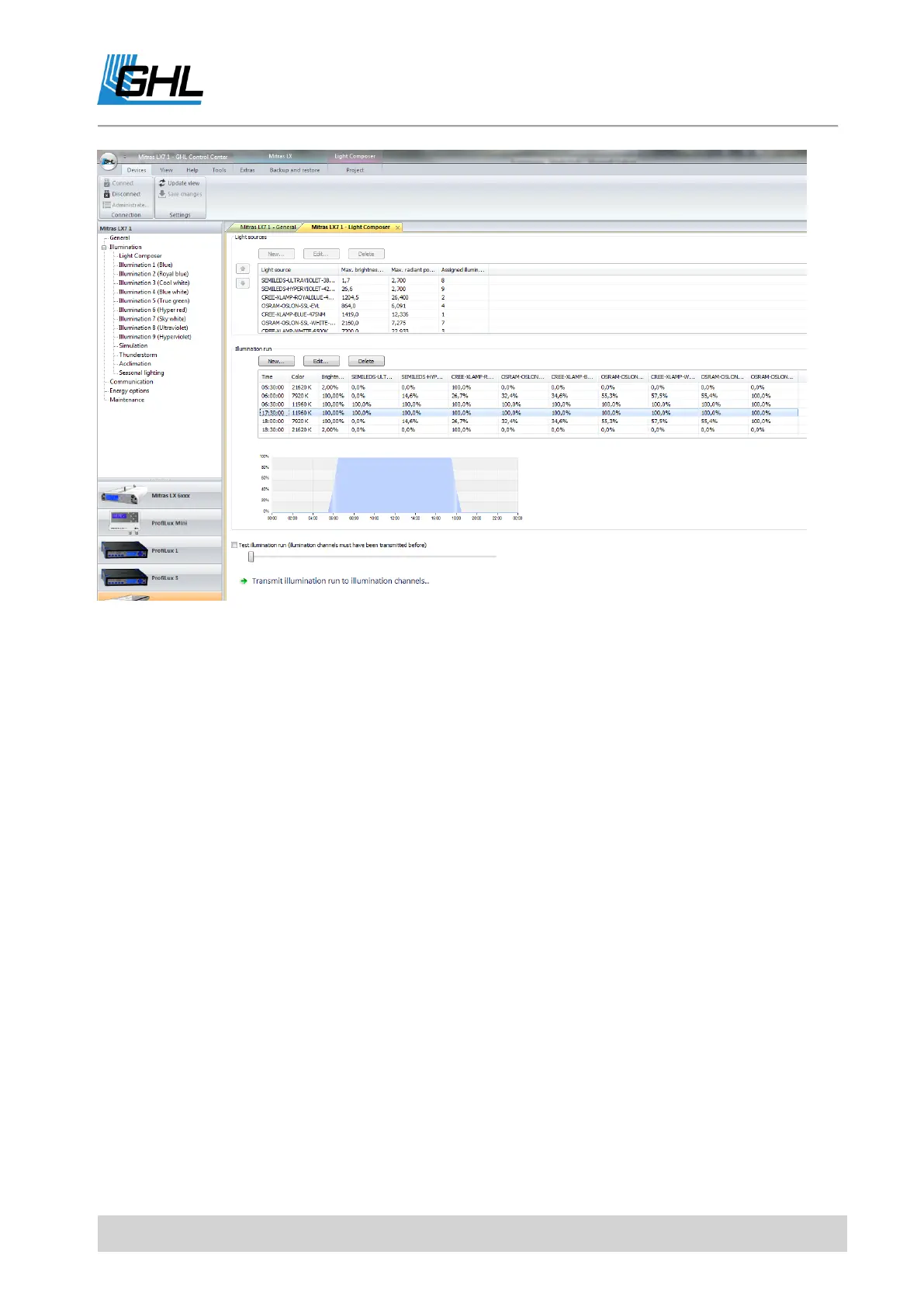

In the Illumination Run menu shown above, you can create your own light schedule. All
lighting projects work in relation to 24 h. For example, 13:00, 16:00, etc.
Double-clicking on a time-slot allows you to change the color mixing, color temperature or
brightness for that given time. Here, you can create your desired spectrum and dimming
times.
The following example shows the adjusted light spectrum exactly at 17:30 (5:30 pm).
Displayed are:
 Brightness (lm) at the selected time (here 17:30)
 The estimated light color in Kelvin, which result from the settings/changes that were
made
 The intensity of the different light channels in %
 Pre-defined light colors which can be created, saved and reloaded
