Giant TRINITY ADVANCED PRO - Armrest Pad Reach Adjustment; Pad Locking to Clamp: First and Second Hole; Pad Locking to Clamp: First and Third Hole

Version 9 /2015
12
Armrest Pad Reach Adjustment
The armrests can be bolted onto the extension clamps in 4 positions and reversed to
achieve 5 different armrest fore/aft positions. With 15mm increments between
positions, Trinity offers a total of 60mm of adjustment range. The 0mm mark
represents the shortest armrest reach adjustment attainable for each given frame
size. Please refer back to the armrest stack and reach range information on page 4
for more information.

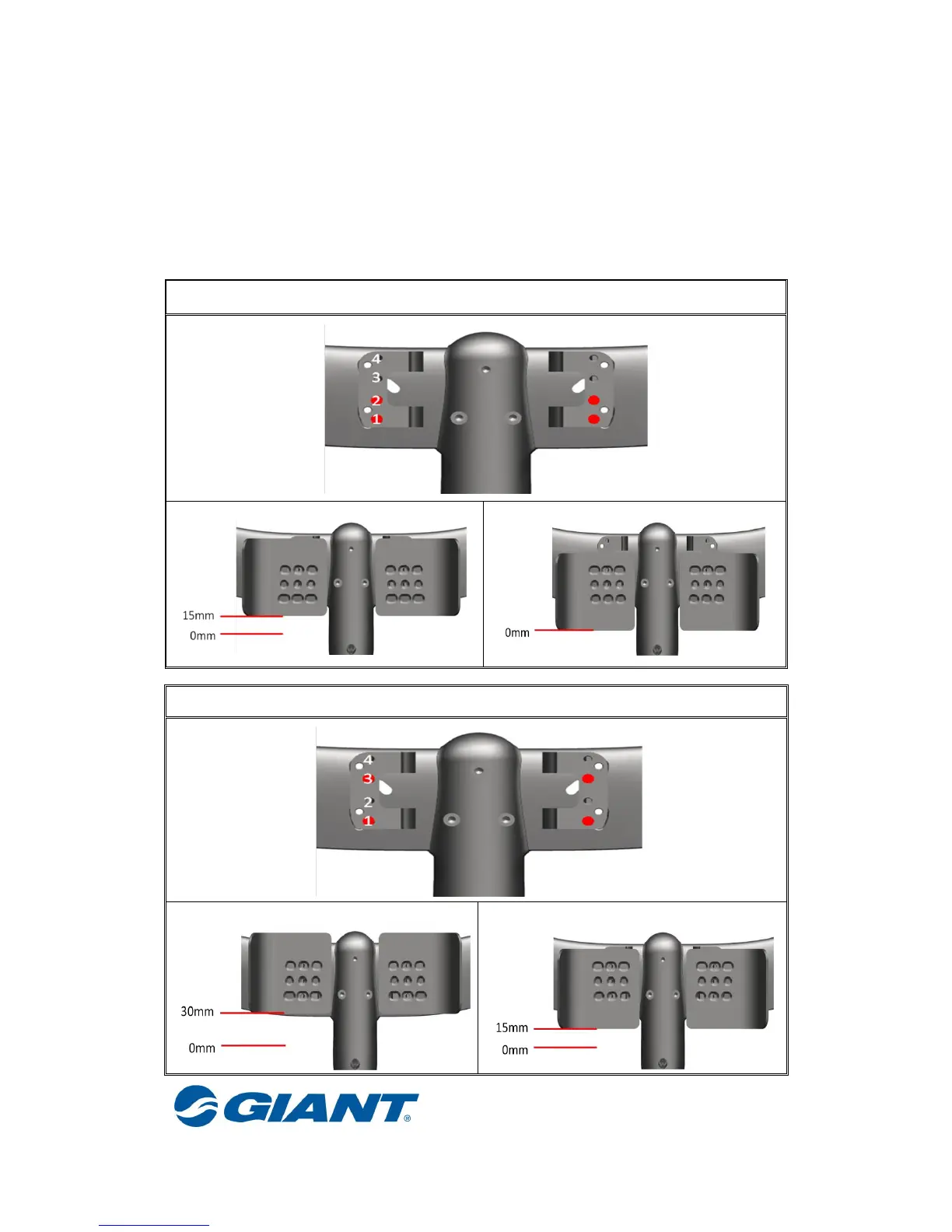

Pad locking to clamp: First and second hole
Pad locking to clamp: First and third hole
