Aero Vault Stem Hydration Assembly

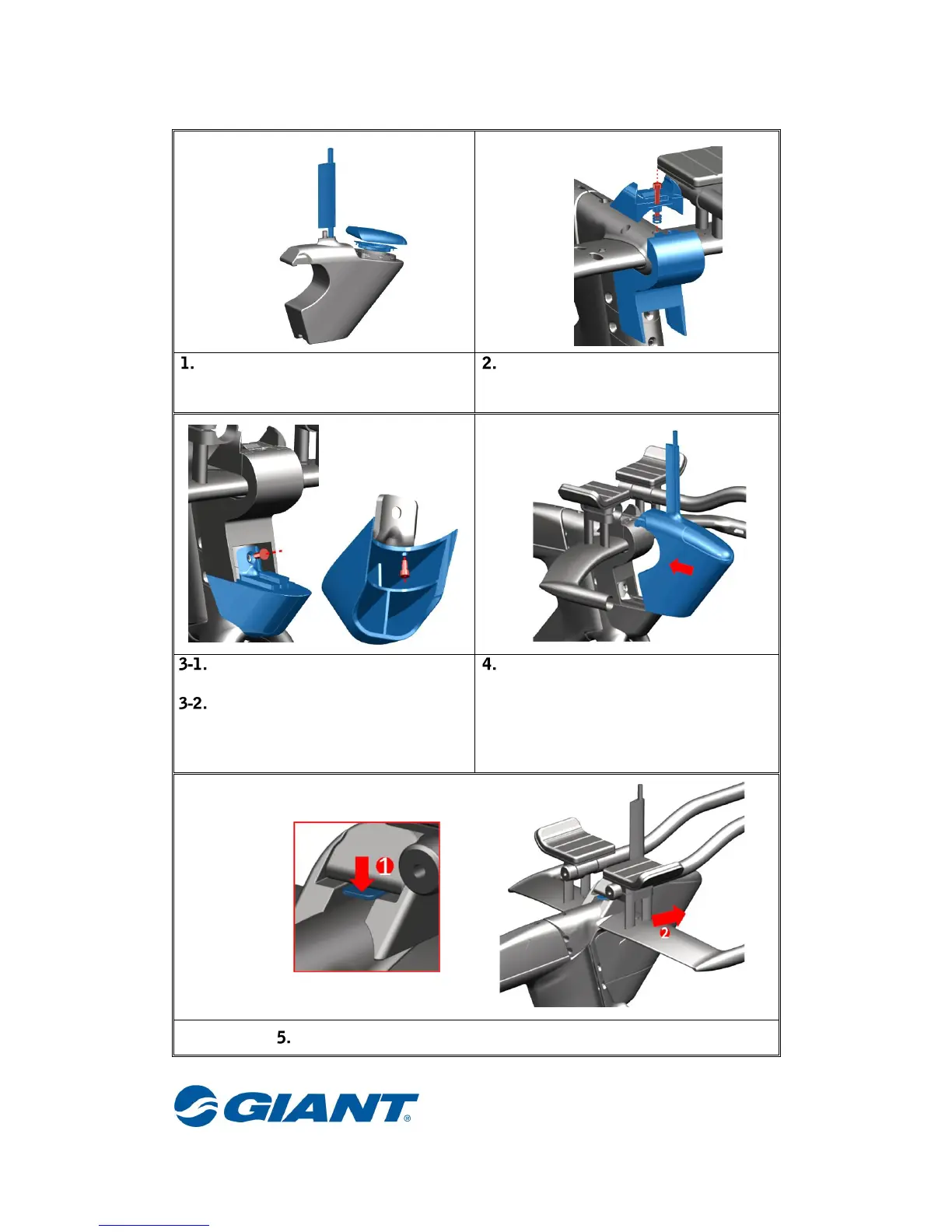

Assemble straw and cover on the bottle
Assemble latch and S-type parts to the
upper stem with M5 screws, locking torque
3Nm
Assemble spacer with M3 screws in the
bottle bracket
Assemble bottle bracket in lower stem
or stem spacer with M5 Hexagon
socket countersunk head screws,
locking torque 3Nm
Slide bottle into the spacer and fixed to
the latch then it can be used
Pressing the latch and pulled forward to remove the bottle
