Giant TRINITY ADVANCED PRO - Handlebar & Stem Assembly Instructions

Version 9 /2015
8
Handlebar & Stem Assembly Instructions
Warning: Please ensure you are using correct assembly parts in the correct order.

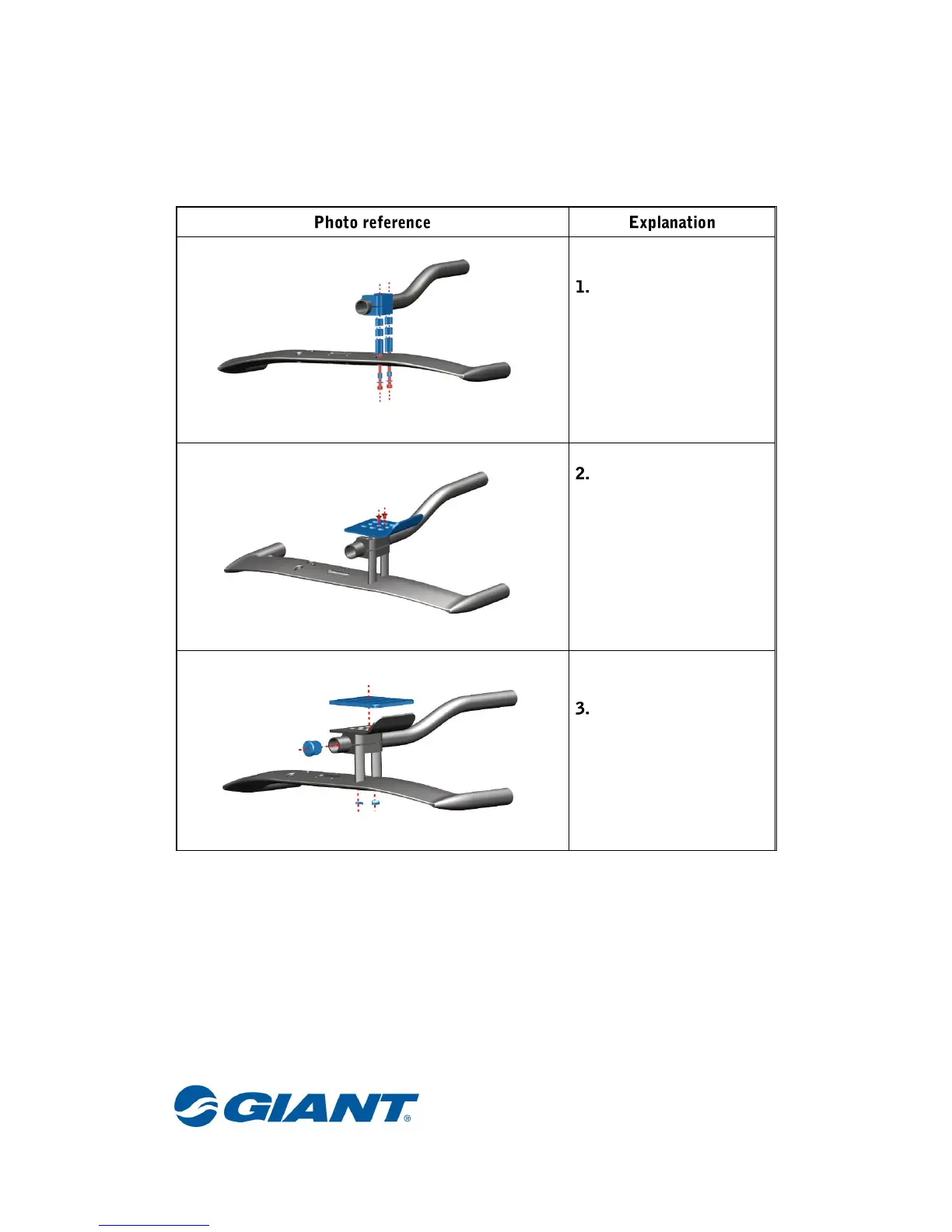

Assemble extension bar
on the handlebar with M5
screws, locking torque
6Nm
Assemble armrest pad to
the clamp with M5
Hexagon socket
countersunk head screws,
locking torque 3Nm
Handlebar alignment and
assembly handlebar
attachments
M5
M5
M5
M5
M5
