Giant TRINITY ADVANCED PRO - Page 9

Version 9 /2015
9

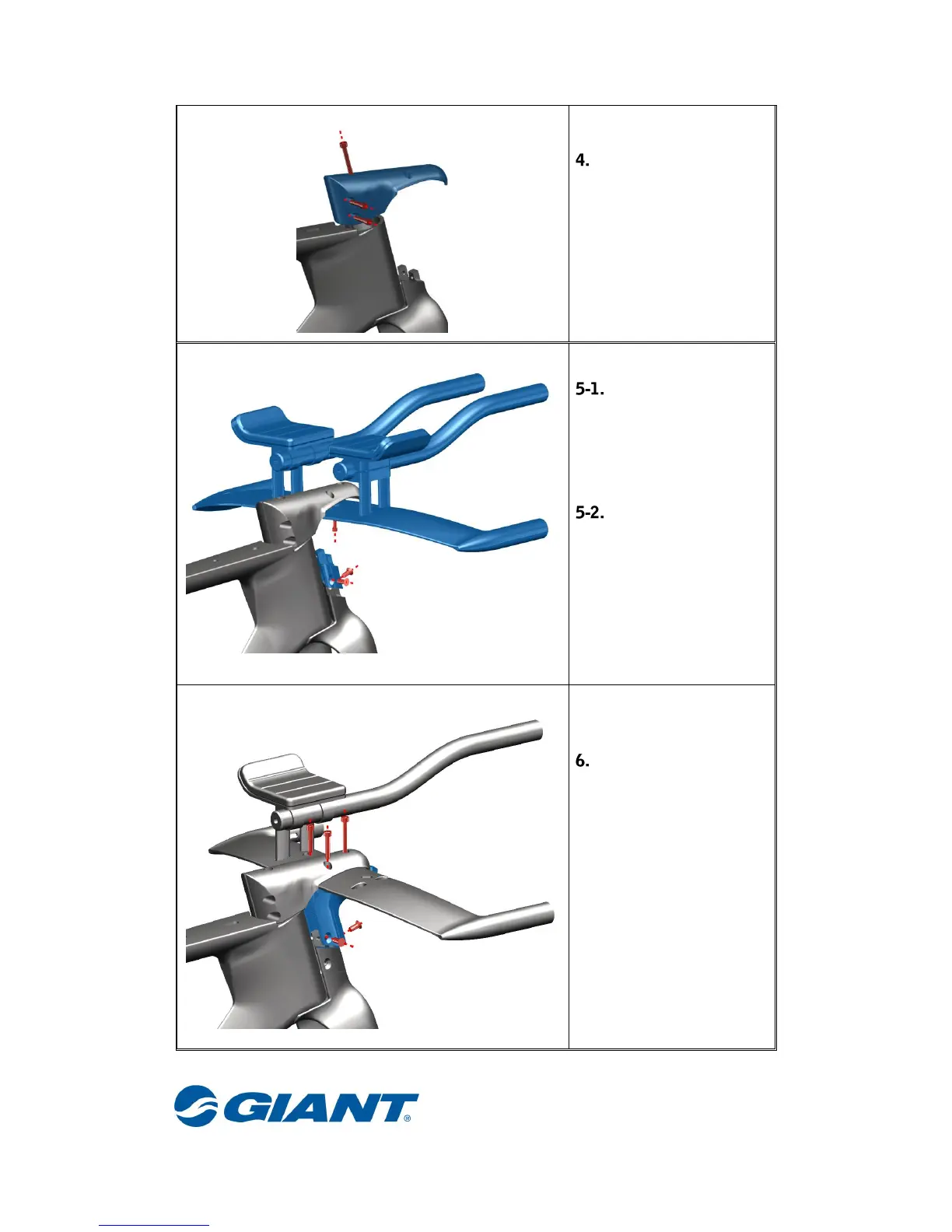

Assemble upper stem to
the fork steering tube.
Lock M6 screws first then
M5 screws, locking torque
6Nm
Assemble handlebar in
upper stem with M4
screws, locking
torque4Nm
Assemble stem spacer at
fork with M5 Hexagon
socket countersunk head
screws, locking torque
3Nm
Assemble lower stem with
M5 screws and M5
Hexagon socket
countersunk head screws
M5 screws locking torque
front 3Nm, rear 6Nm,M5
Hexagon socket
countersunk head screws
locking torque 3Nm
M5
M6
M4
M5
M5
M5
