Version 9 /2015
10
Armrest and Extensions

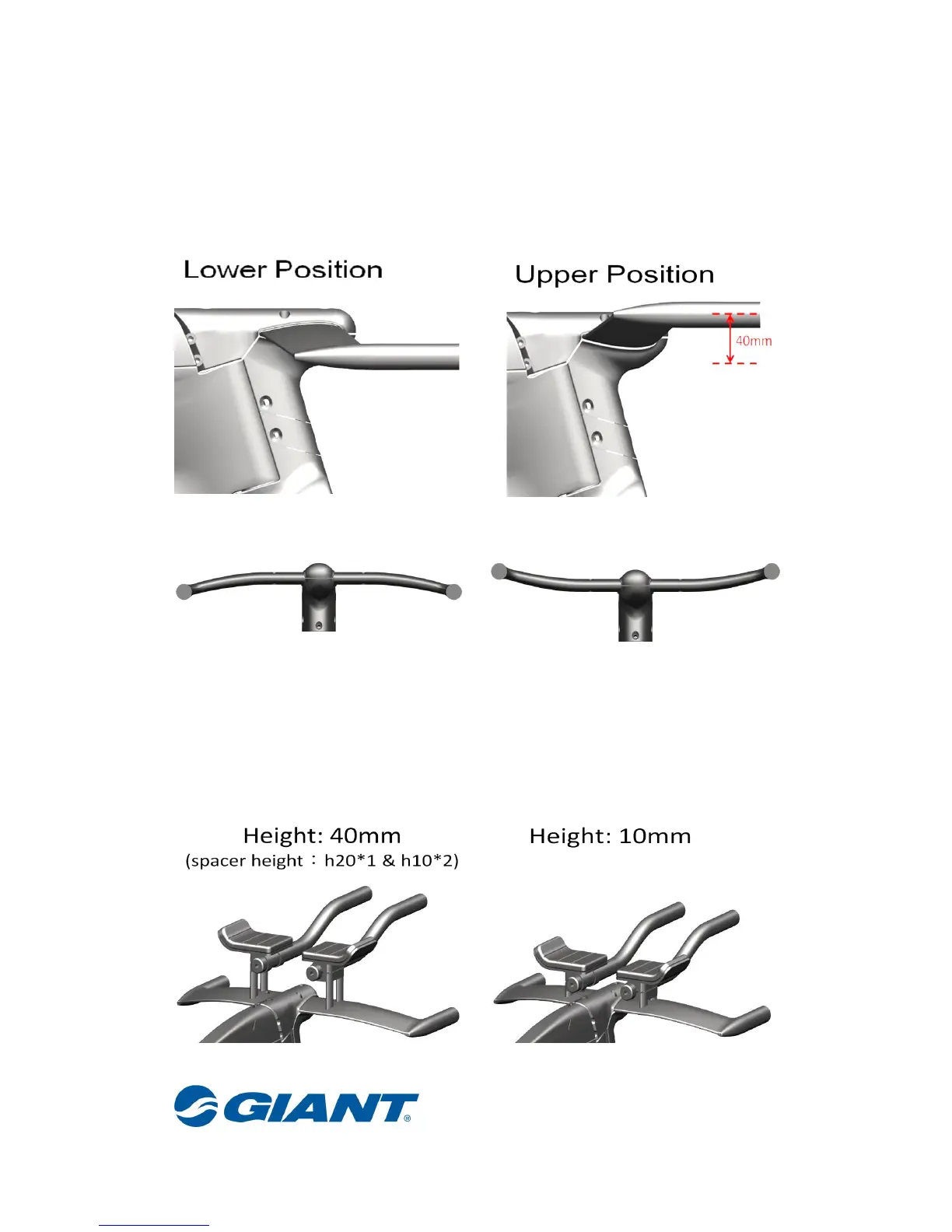

Basebar Height Adjustment
By inverting the handlebar, you can choose either the low position or the
high position. The height difference between the two is 40mm.
Armrest Pad Height Adjustment
The armrest supports height can be adjusted up to 40mm with the
teardrop spacers.
Depending on the selected height, make sure you are using the correct
extension clamp screw lengths as detailed.
