Giant TRINITY ADVANCED PRO - Stem;Basebar Parts Assembly Chart

Version 9 /2015
7

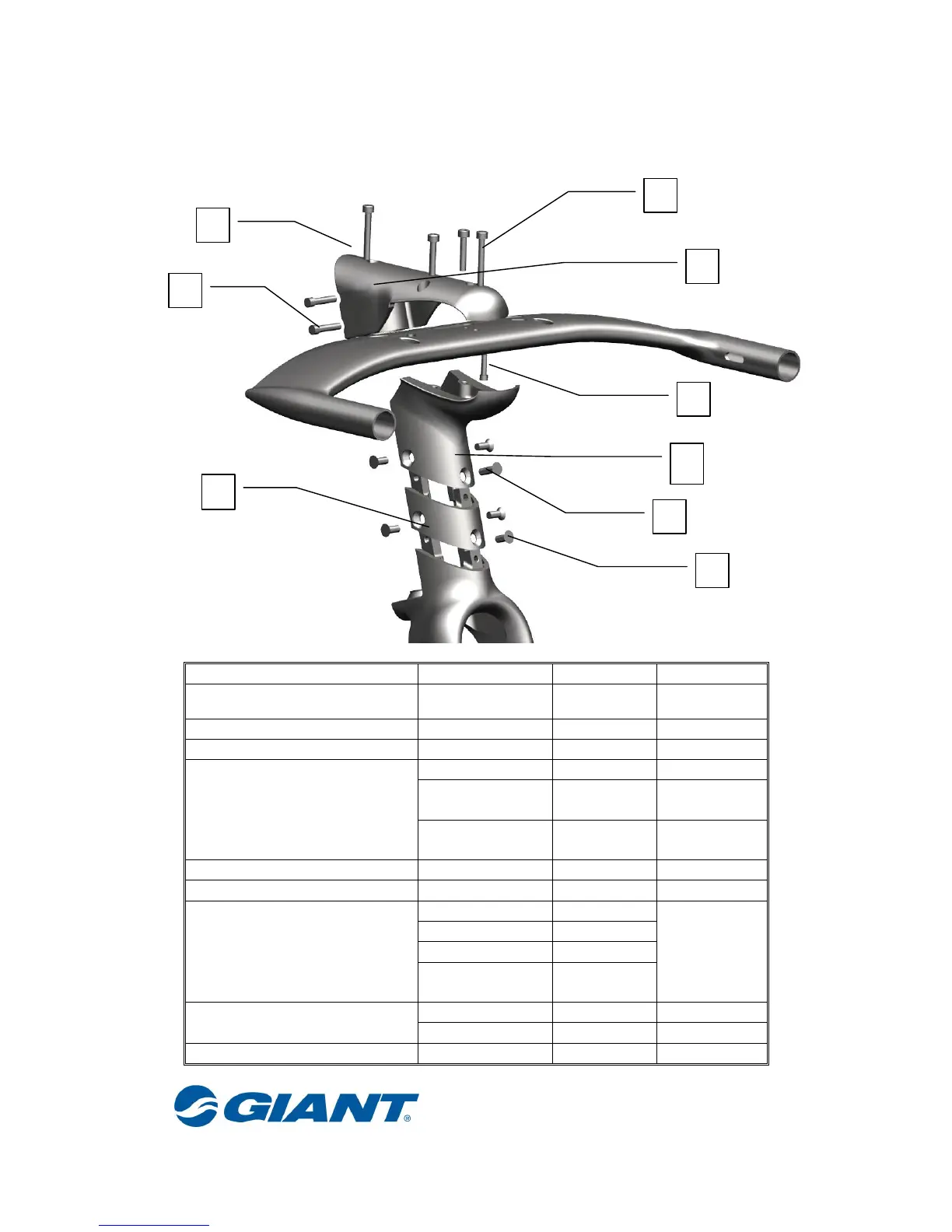

Stem/Basebar Parts Assembly Chart
Specification
Quantity
Torque range
[1] Headset compression bolts
M6X30
1
6 Nm
[2] Upper stem bolts
M5X15
2
6 Nm
[3] Upper stem
-
1
[4] Stem bolts
M5X25
2
6 Nm
M5X35
(w/o stem bottle)
1
3 Nm
M5X45
(w/ stem bottle)
1
3 Nm
[5] Handlebar bolt
M4X25
1
4 Nm
[6] Lower stem
-
1
-
[7] Stem spacer
XS size
-
-
-
S size
H:25mm*1
M size
H:51mm*1
L size
H:25mm*1
& H:51mm*1
[8] Lower stem bolts
M5X10 tapered
2
3 Nm
M5X15 tapered
1
3 Nm
[9] Stem spacer bolts
M5X10 tapered
3
3 Nm
4
2
3
1
