Giant TRINITY ADVANCED PRO - Cockpit Parts Assembly Chart

Version 9 /2015
6

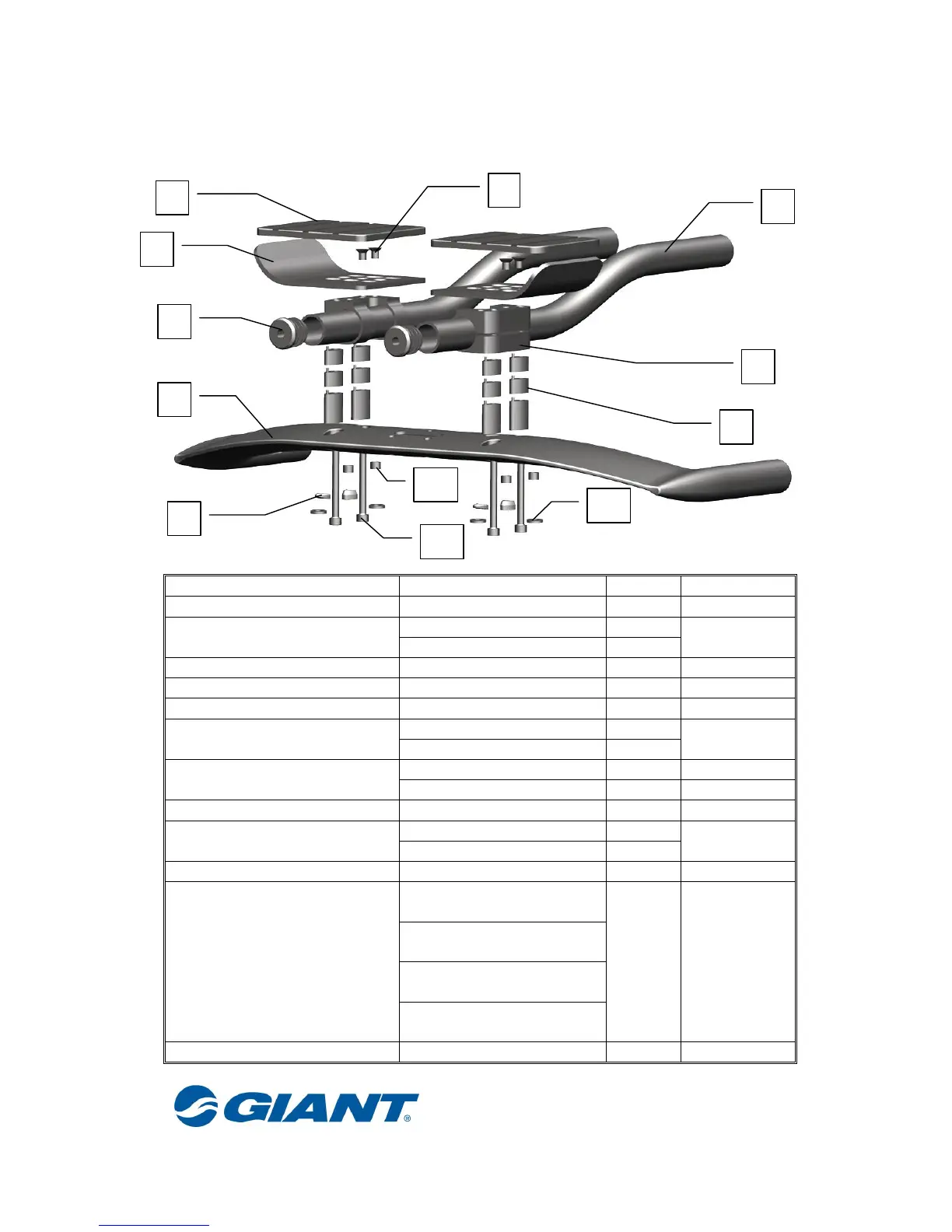

Cockpit Parts Assembly Chart
Specification
Quantity
Torque range
[1] Armrest pad
2
-
[2] Armrest
Right
1
-
Left
1
[3] Armrest bolt
M5X8 tapered
4
3 Nm
[4] Extension plug
2
-
[5] Extension
2
-
[6] Extension clamp
Right
1
-
Left
1
[7] Tear drop spacer
10mm
8
-
20mm
4
-
[8] Handlebar
1
[9] Handlebar plug
Front
2
-
Rear
2
[10] Handlebar ring
4
[11] Extension clamp bolts
M5X70
(w/ Tear drop spacer H:40)
4
6 Nm
M5X60
(w/ Tear drop spacer H:30)
M5X50
(w/ Tear drop spacer H:20)
M5X40
(w/ Tear drop spacer H:10)
[12] Extension clamp bolt washer
4
1
2
6
4
5
7
8
9
10
11
3
12
