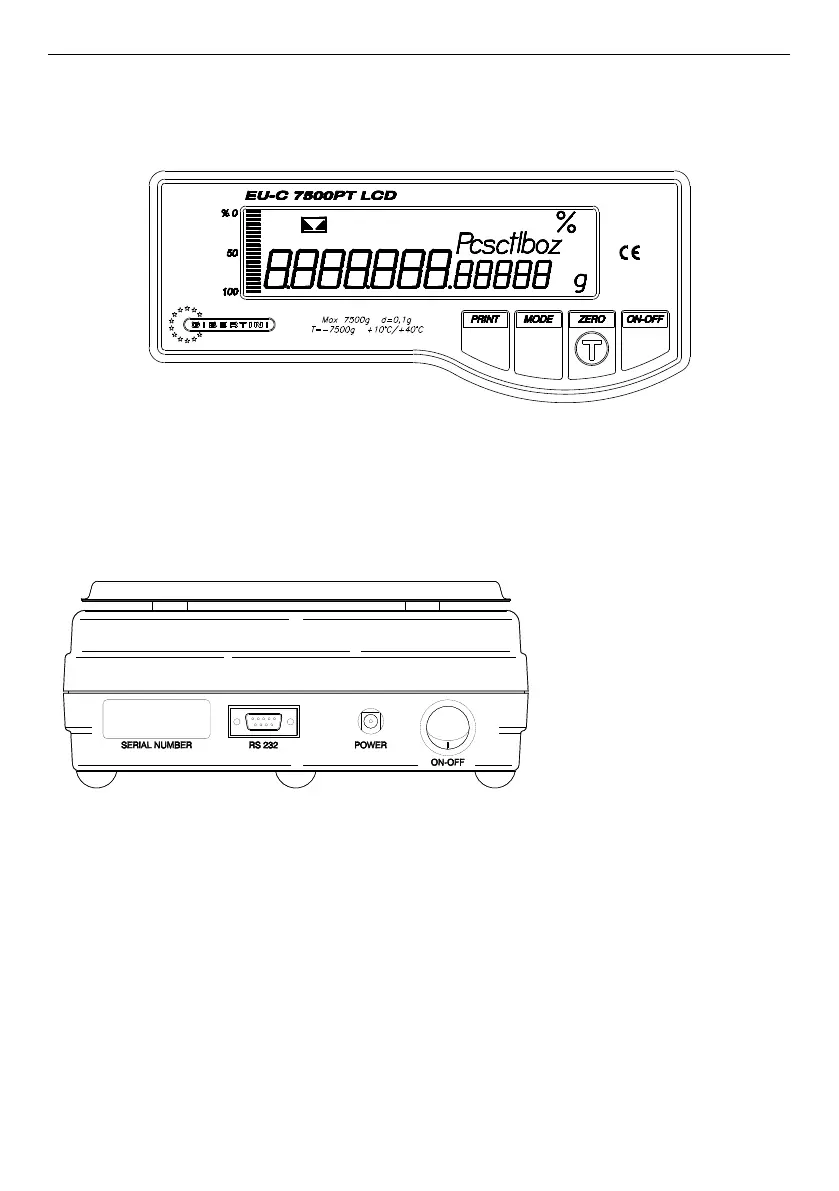

In the front of the balance (Fig. 1) there is the control panel, which is constituted by a LCD
display and four command keys. The function of the keys is described in the correspondent
section.
In the rear (Fig. 2) the balance presents the connector for the power supply, the connector
for the I/O RS232 serial interface (or USB 2.0) and the ON-OFF power switch (only for
“BP” version).
3. INSTALLATION
For an optimum installation of the balance respect the following indications:
▪ Place the balance on a rigid surface, away from vibrations, heat sources and
air currents, especially for the EU-C2002 and EU-C7500DR models.
▪ The operating voltage must comply with the declared Technical Characteristics.
▪ Avoid connecting the balance to an electric network subject to great tension swings.
▪ Connect the power supply, supplied in equipment, to the balance and then to a
100÷240V network socket.
After the initial test the display will show "0.0 g". Now the balance is in operating mode.
At the first ignition after the installation, or if the balance was switched-off for a long time,
wait for 15 minutes minimum (preheating) before using the instrument so that will be
thermally stabilised.
