- 37 - Hardware Installation

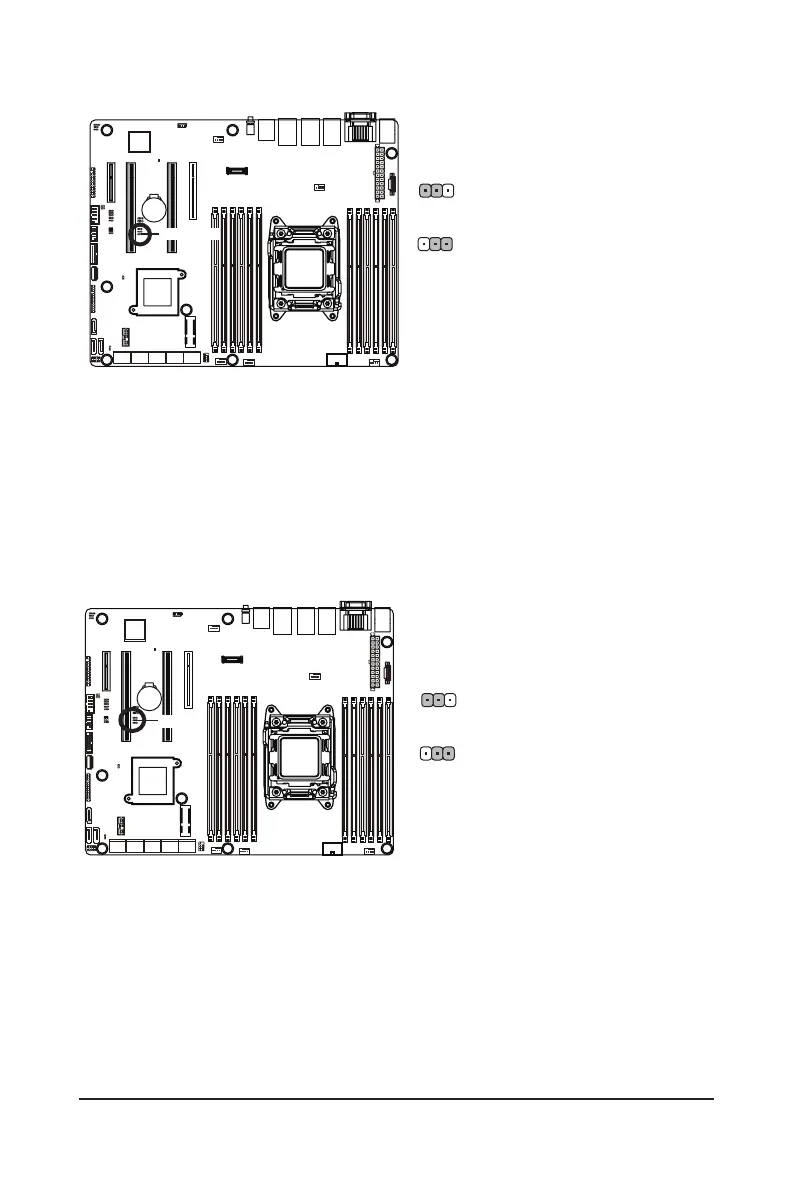

7) ME_UPDATE (ME Update Jumper)
1-2 Close: Normal operation (Default setting)
2-3 Close: ME recovery mode.
ME_UPDATE
1
1
1
1
8) ME_RCVR (ME Recovery Jumpers)
1-2 Close: Normal operation.(Default setting)
2-3 Close: ME recovery mode.
ME_RCVR
