i1520 SERIES USER’S MANUAL
1.6 Left View
i1520N

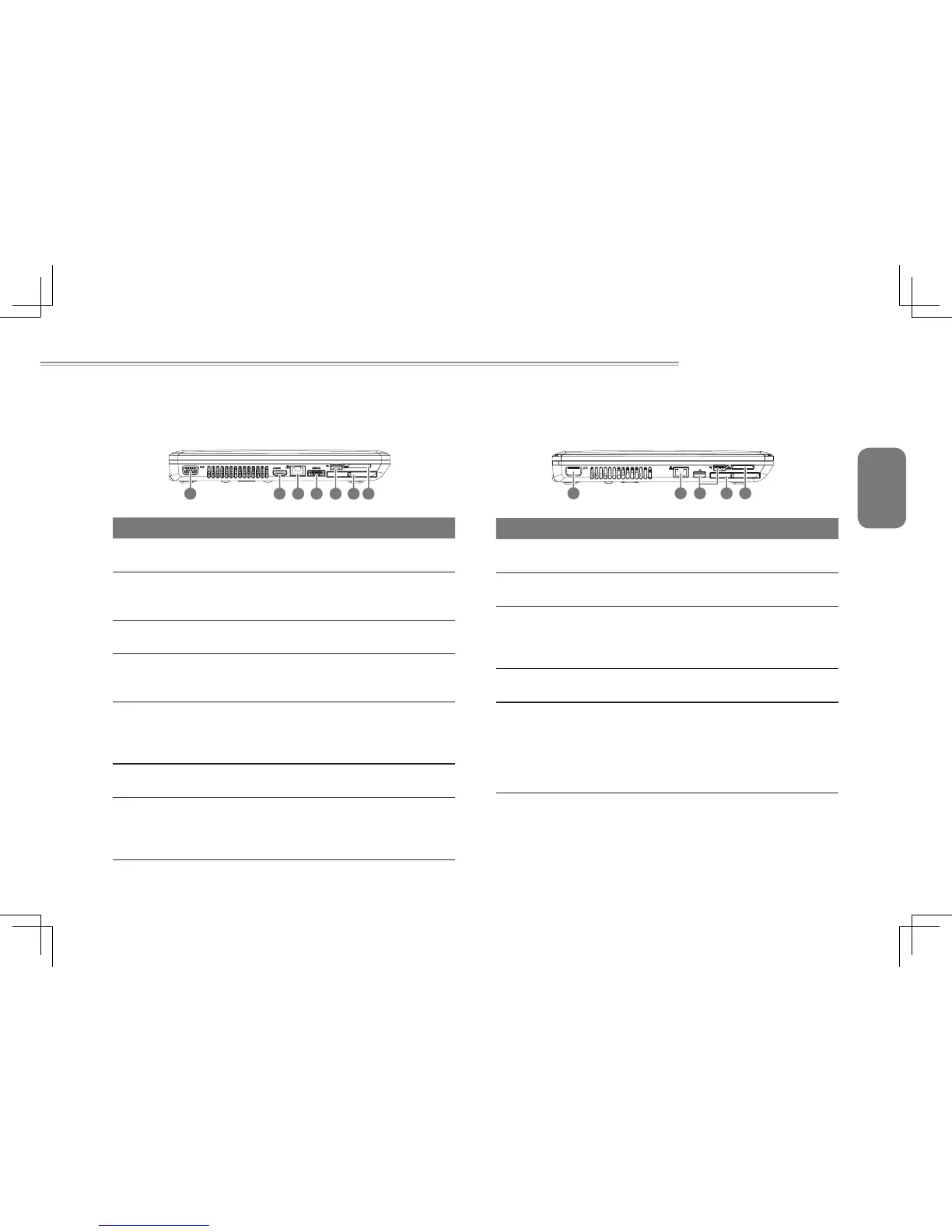

The following is a brief description of the left side of the notebook.
1 2 3 4 5 76
NO. Item Function
1
External
Monitor Port
The external monitor port allows you to
connect an external monitor.
2 HDMI Port
The HDMI port allows you to connect a
video device to your computer for outputing
ahighdenitionsignal.
3
LAN (RJ-45)
Port
The LAN port is designed to support a
10/100/1000 Base-T standard RJ-45 plug.
4
e-SATA/USB
combo port
The e-SATA/USB combo port allows you
to connect an external device as well as
any type of USB device.
5 USB 2.0 Port
The USB port allows you to connect a
Universal Serial Bus device. It supports
v2.0 of the USB standard, which allows
data exchange rates as high as 480 Mb/s.
6
Express Card
Slot
The Express Card Slot allows you to install
one Type-II Express Card Slot.
7
Multi Card
Reader
The memory card reader offers the fastest
and most convenient method to transfer
pictures, music and data between your
notebookandashcompatibledevices.
i1520M
The following is a brief description of the left side of the notebook.
1 2
4
53
NO. Item Function
1
External
Monitor Port
The external monitor port allows you to
connect an external monitor.
2
LAN (RJ-45)
Port
The LAN port is designed to support a
10/100/1000 Base-T standard RJ-45 plug.
3 USB 2.0 port
The USB port allows you to connect a
Universal Serial Bus device. It supports
v2.0 of the USB standard, which allows
data exchange rates as high as 480 Mb/s.
4
Express Card
Slot
The Express Card Slot allows you to install
one Type-II Express Card Slot.
5
Multi Card
Reader
The memory card reader offers the fastest
and most convenient method to transfer
pictures, music and data between your
notebookandashcompatibledevices
such as digital cameras, MP3 players,
mobile phones, and PDAs.
To Next Page
