3.3 How to Connect an HDMI Display

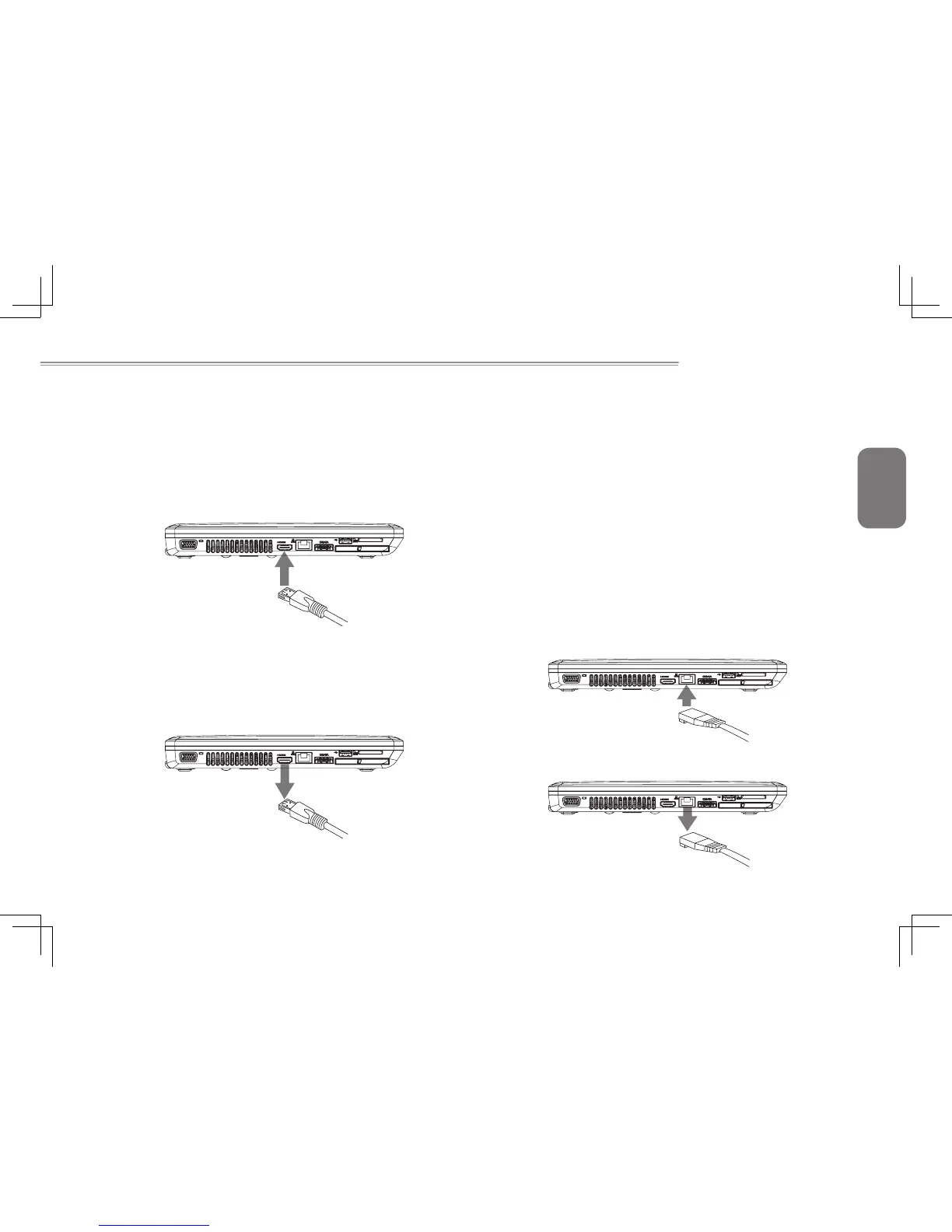

Connect an HDMI Display
To insert the cable, simply line it up with the HDMI port on the
i1520 unit and press it into the port securely. It will click lightly
into place when it is inserted properly. Use the operating systems
display properties to then get an image on the HDMI Output port.
DependingonyourcongurationtheHDMIportcanalsocarrya
sound signal.
Disconnect an HDMI Display
To remove the cable simply grab the head of the cable and gently
pull out of the i1520, ensuring that the port is no longer active with
a display output. DO NOT pull by the cable itself is this can damage
the HDMI cable or the cables connector head as well as the HDMI
port.
3.4 Ethernet LAN Connection
The i1520 features an RJ45 Ethernet port with an integrated LAN
controller capable of operational speeds of 10Mbps, 100Mbps or
Gigabit(1000Mbps),dependingonconguration.
Ethernet LAN Connection
The built-in LAN controller defaults to Auto Discovery when any LAN
cable is connected and will be able to operate on a Peer 2 Peer
basis. If the Notebook will be part of a domain, the controller and
systemsettingswillneedtobeconguredtoconnecttothedomain
network. This will need to be done by the network administrator.
The connection speed will also be determined by the cable used
and the network hardware that you connect to.
For Gigabit (1000Base-T) a CAT5E (Category 5E) Cable is required
For 100Mbps (100BASE-T) a CAT5 (Category 5) Cable is required
To connect to a LAN, simply take the cable and align it, contacts facing
down, and push it into the RJ45 LAN port until it clicks into place.
To disconnect, simply push the clip arm down and pull the cable out
of the port to remove it.
