i1520 SERIES USER’S MANUAL
3.7 WWAN 3G Connection (Only Optional for i1520N)
Thei1520,dependingonconguration,featuresaWWAN3G
Connection.Thissectionwillbrieyexplainhowtoinstallandsetup
the WWAN 3G unit if it did not ship with your i1520.
If you purchased the GIGABYTE WWAN 3G Module separately you
should have these items in the package:

1x WWAN 3G Mobile Broadband Card

1x Driver CD

1x Quick Installation Guide
To install the 3.5G Mini Card please follow these steps, however
if you are not comfortable doing so, please contact the supplier to
install the Module for you. Ensure the i1520 is off before proceeding:

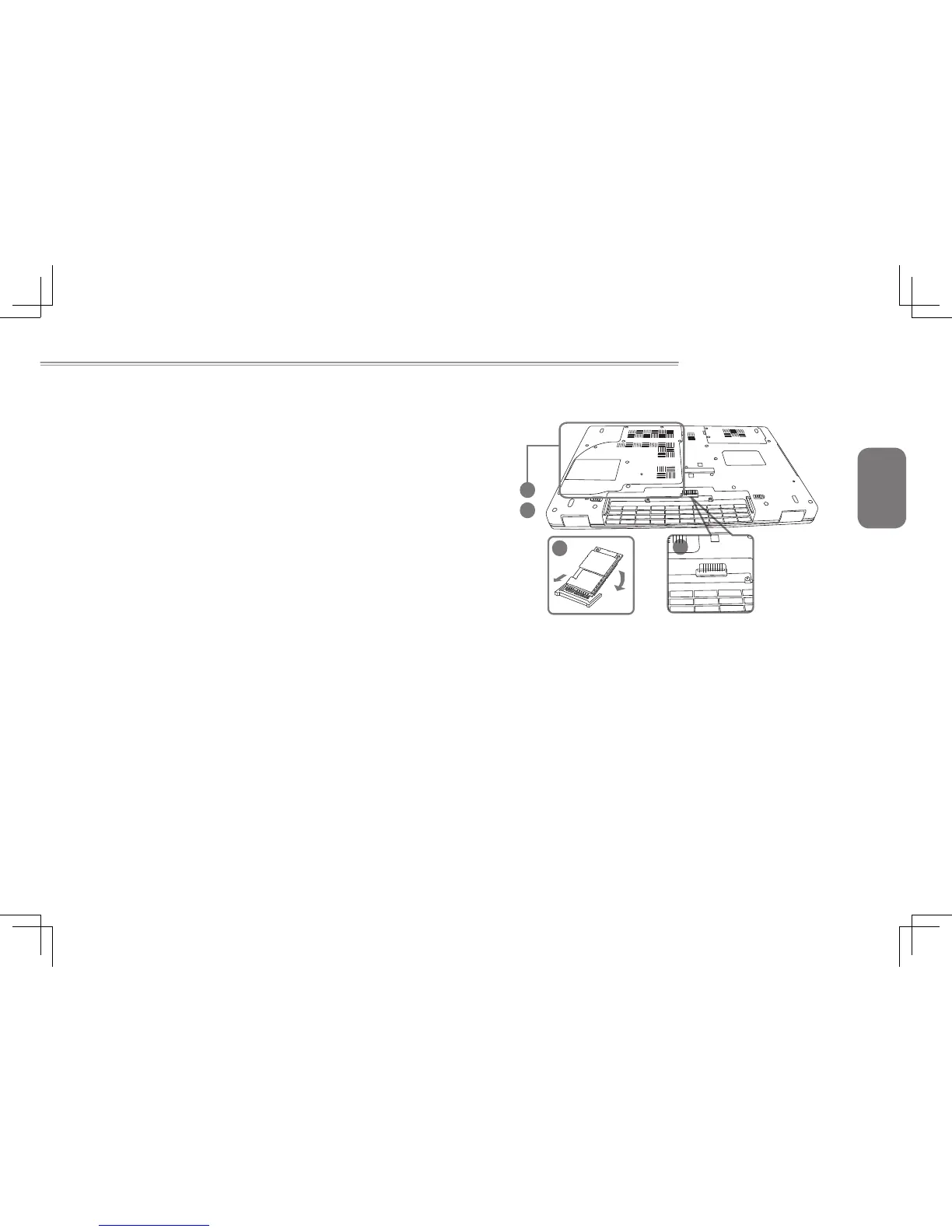

1. Remove the Comm. Bay cover shown above to reveal the Mini
Card slots. There should be one open slot available.
2. Line up the 3.5G Mini Card with the slot, making sure to check
the alignment of the notch, and press the card into the slot.
3. There should be two antenna plug available to plug into the Mini
Card to allow for signal reception and transmission - Plug this into
the port on the card. Follow the software installation steps.
4. The SIM Card slot is under the battery in the battery bay.
