Hardware Installation - 14 -

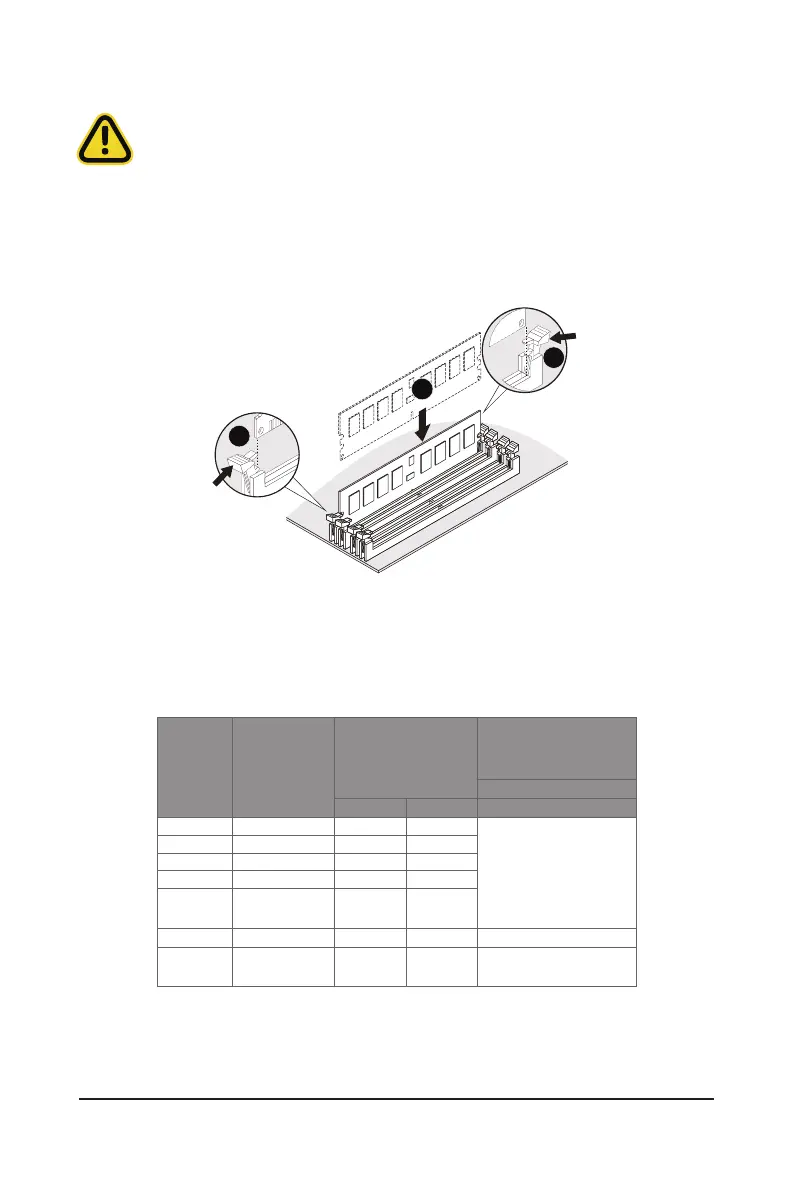

1-4-2 Installing and Removing a Memory Module

Before installing a memory module, make sure to turn off the computer and unplug the

power cord from the power outlet to prevent damage to the memory module.

Be sure to install DDR4 DIMMs on this motherboard.

Follow these instructions to install a DIMM module:

1. Insert the DIMM memory module vertically into the DIMM slot and push it down.

2. Close the plastic clip at both edges of the DIMM slots to lock the DIMM module.

3. Reverse the installation steps when you want to remove the DIMM module.

1-4-3 Memory Population Table

Note:

DIMM must be populated in sequential alphabetic order, starting with bank A0.

Type

Ranks Per DIMM and

Data Width

DIMM Capacity (GB)

Speed (MT/s); Voltage (V);

Slots per Channel(SPC) and

DIMM per Channel (DPC)

1DPC

8Gb 16Gb 1.2V

RDIMM SRx8 8GB 16GB

3200

RDIMM SRx4 16GB 32GB

RDIMM DRx8 16GB 32GB

RDIMM DRx4 32GB 64GB

RDIMM 3DS (4R/8R)x4

2H-64GB

4H-128GB

2H-128GB

4H-256GB

LRDIMM QRx4 64GB 128GB 3200

LRDIMM 3DS (4R/8R)x4 4H-128GB

2H-128GB

4H-256GB

3200
