Gigabyte MZ72-HB0 User Manual

BIOS Setup - 82 -

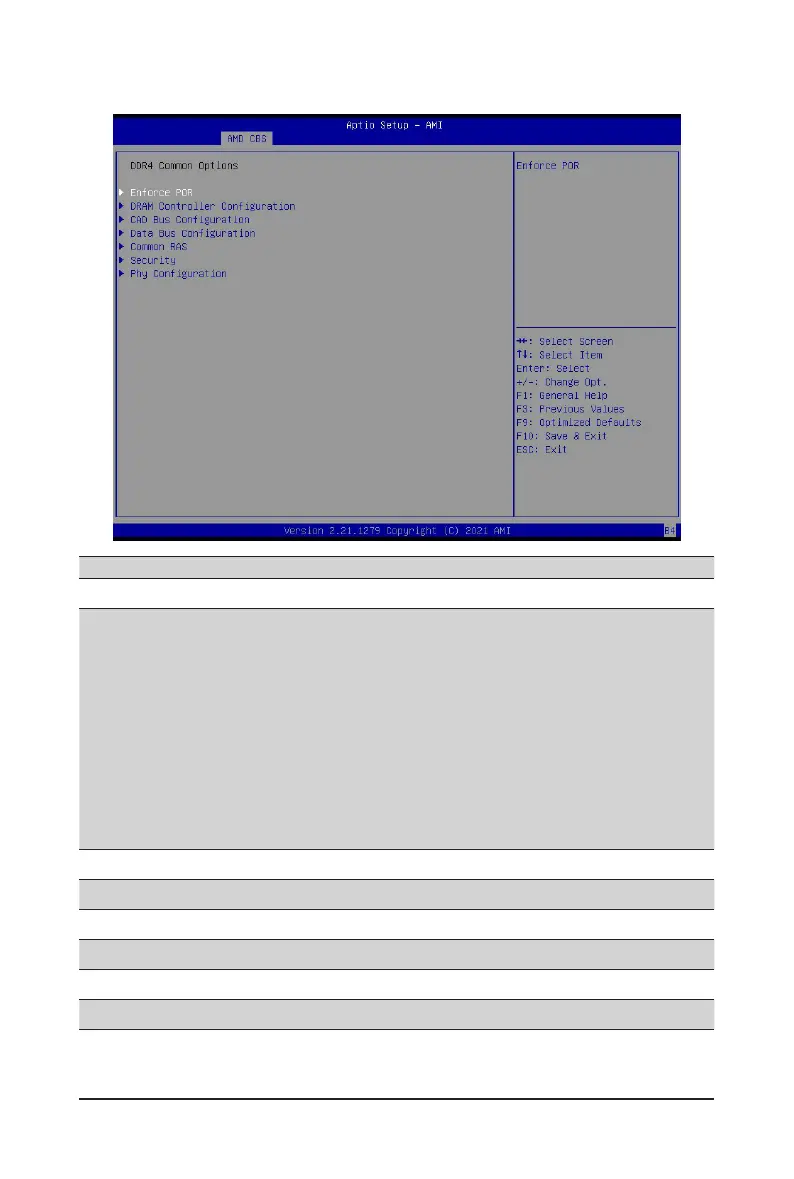

2-3-3-1 DDR4 Common Options
Parameter Description
DDR4 Common Options
Enforce POR
Press[Enter] tocongurethePlanof Record(POR)toenable/ disable
restrictions for DDR4 frequency and voltage programming. Memory speeds
will be capped at AMD guidelines.

Decline

Accept
– Overclock
»
Enable/Disable Memory Overclock Settings
»
Options available: Auto, Enabled. Default setting is Auto.
Note: To enable 2 DIMMs per Channel at 3200MHz function, select
[Accept] at warning message, change Overclock from [Auto] to
[Enabled], and then set memory speed to 3200MHz.
DRAMControllerConguration Press[Enter]tocongureDRAMControllerConguration.
CADBusConguration Press[Enter]tocongureCADBusConguration.
DataBusConguration Press[Enter]tocongureDataBusConguration.
Common RAS Press[Enter]tocongureCommonRAS.
Security Press[Enter]tocongureSecurity.
PhyConguration Press[Enter]tocongurePhyConguration.

Gigabyte MZ72-HB0 Specifications

General

PS/2 ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
PCI Express x16 slots	5
Memory channels	Octa-channel
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2933, 3300 MHz
On-board graphics card model	Aspeed AST2500
Parallel processing technology support	Not supported
Cables included	SATA
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	10 - 40 °C
Storage relative humidity (H-H)	20 - 95 %
Operating relative humidity (H-H)	8 - 80 %
Processor socket	Socket SP3
Processor manufacturer	AMD
Compatible processor series	AMD EPYC
Processor number of cores supported	64
Component for	Server
Motherboard chipset	System on Chip
Motherboard form factor	Extended ATX
Compatible operating systems	Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 7.6 ( x64) Red Hat Enterprise Linux 8.0 ( x64) SUSE Linux Enterprise Server 12 SP4 ( x64) SUSE Linux Enterprise Server 15 SP1 ( x64) Ubuntu 16.04.6 LTS (x64) Ubuntu 18.04.3 LTS (x64) Ubuntu 20.04 LTS (x64) VMware ESXi 6.5 EP15 VMware ESXi 6.7 VMware ESXi 7.0 Citrix Hypervisor 8.1.0
TPM connector	Yes
Number of SATA III connectors	4
Number of DIMM slots	16
Supported storage drive interfaces	SATA III
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	330 mm
Width	305 mm
