- 17 -
Hardware Installation

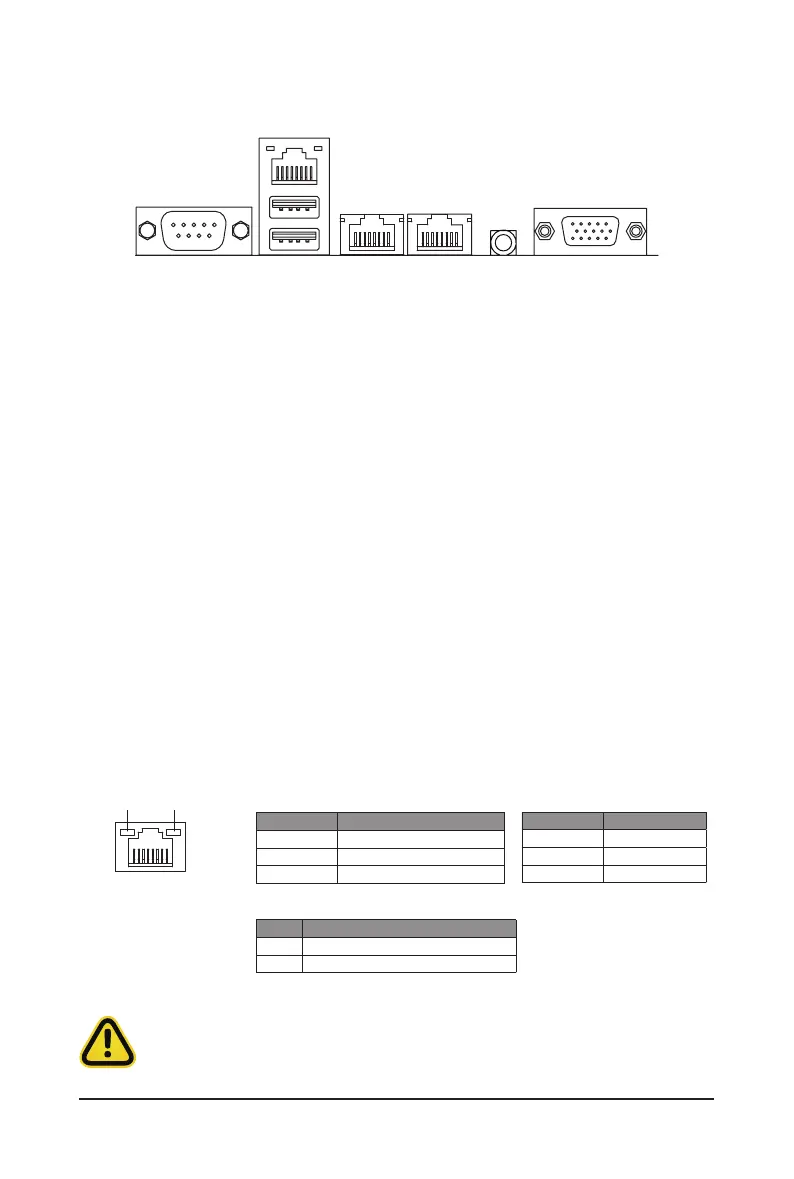

1-6 Back Panel Connectors
u
Serial Port
Connects to serial-based mouse or data processing devices.
v
10/100/1000 Server Management LAN Port
The LAN port provides Internet connection with data transfer speeds of 10/100/1000Mbps. This port is
the dedicated LAN port for Server Management.
w
USB 3.0 Ports
The USB port supports the USB 3.0 specification. Use this port for USB devices such as a USB
keyboard/mouse,USBprinter,USBashdriveetc.
x
10GBASE-T RJ-45 LAN Port #2
The 10 Gigabit Ethernet LAN port provides Internet connection at up to 10 Gbps data rate. See the
section below for a description of the states of the LAN port LEDs.
y
10GBASE-T RJ-45 LAN Port #1
The 10 Gigabit Ethernet LAN port provides Internet connection at up to 10 Gbps data rate. See the
section below for a description of the states of the LAN port LEDs.
z
ID button with LED
Whenthesystemidenticationisactive,theIDLEDonthefront/backpanelglowsblue.
{
VGA Port
Connects to a monitor device.
v
x y
z
{
u
LAN and ID Button LEDs
Link/Activity LED
Speed LED
LAN Port
Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour
device and then remove it from the motherboard.
When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.
ID button/LED:
10/100/1000 LAN LED:
State Description
Yellow On 1Gbps data rate
Green On 100Mbps data rate
Off 10Mbps data rate
State Description
Blue On Systemidenticationisactive
Off Systemidenticationisdisabled
10GbE LAN LED:
State Description
Yellow On 5Gbps, 2.5Gbps, 1Gps data rate
Green On 10Gbps data rate
Off 100Mbps data rate
w
