- 45 -
BIOS Setup
2-2-7

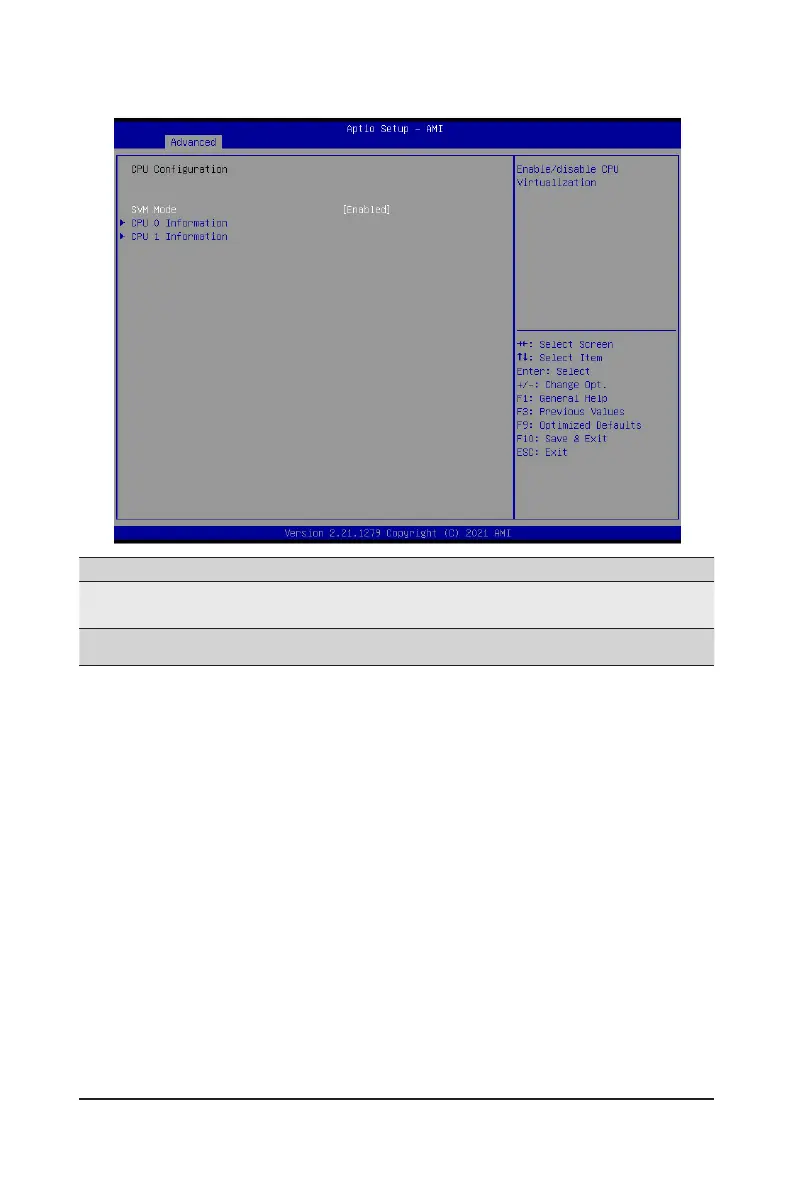

CPU Conguration
Parameter
Description
SVM Mode
Enable/Disable the CPU Virtualization.
Options available: Enabled, Disabled. Default setting is
Enabled
.
CPU 0/1 Information
Press [Enter] to view the memory information related to CPU 0/1.
44
46
Table of Contents
default chapter
3
Table of Contents
3
MZ72-HB2 Motherboard Layout
5
Block Diagram
7
Chapter 1 Hardware Installation
8
Installation Precautions
8
Product Specifications
9
Installing and Removing the CPU and Heat Sink
12
Installing and Removing Memory
13
8-Channel Memory Configuration
13
Installing and Removing the Memory Module
14
Processor and Memory Module Matrix Table
14
Memory Population Table
15
Installing and Removing the M.2 SSD Module
16
Back Panel Connectors
17
Internal Connectors
18
Jumper Settings
27
Chapter 2 BIOS Setup
28
The Main Menu
30
Advanced Menu
33
Trusted Computing
35
PSP Firmware Versions
36
Legacy Video Select
37
Ast2600 Super Io Configuration
38
S5 RTC Wake Settings
40
Serial Port Console Redirection
41
Cpu Configuration
45
PCI Subsystem Settings
46
Usb Configuration
48
Network Stack Configuration
50
Nvme Configuration
51
Sata Configuration
52
Graphic Output Configuration
53
Amd Mem Configuration Status
54
Tls Auth Configuration
55
Iscsi Configuration
56
Broadcom BCM57416 10GBASE-T Network Connection
57
Vlan Configuration
63
Mac Ipv4 Network Configuration
64
Mac Ipv6 Network Configuration
65
AMD CBS Menu
66
CPU Common Options
68
DF Common Options
73
UMC Common Options
78
NBIO Common Options
93
FCH Common Options
99
SOC Miscellaneous Control
103
Workload Tuning
104
AMD PBS Menu
105
Ras
106
Chipset Setup Menu
108
North Bridge
109
Fabric Resource
110
Server Management Menu
111
System Event Log
113
View FRU Information
114
Bmc Network Configuration
115
Ipv6 Bmc Network Configuration
116
Security Menu
117
Secure Boot
118
Boot Menu
120
Save & Exit Menu
122
BIOS Recovery
123
BIOS POST Beep Code (AMI Standard)
124
PEI Beep Codes
124
DXE Beep Codes
124
4
