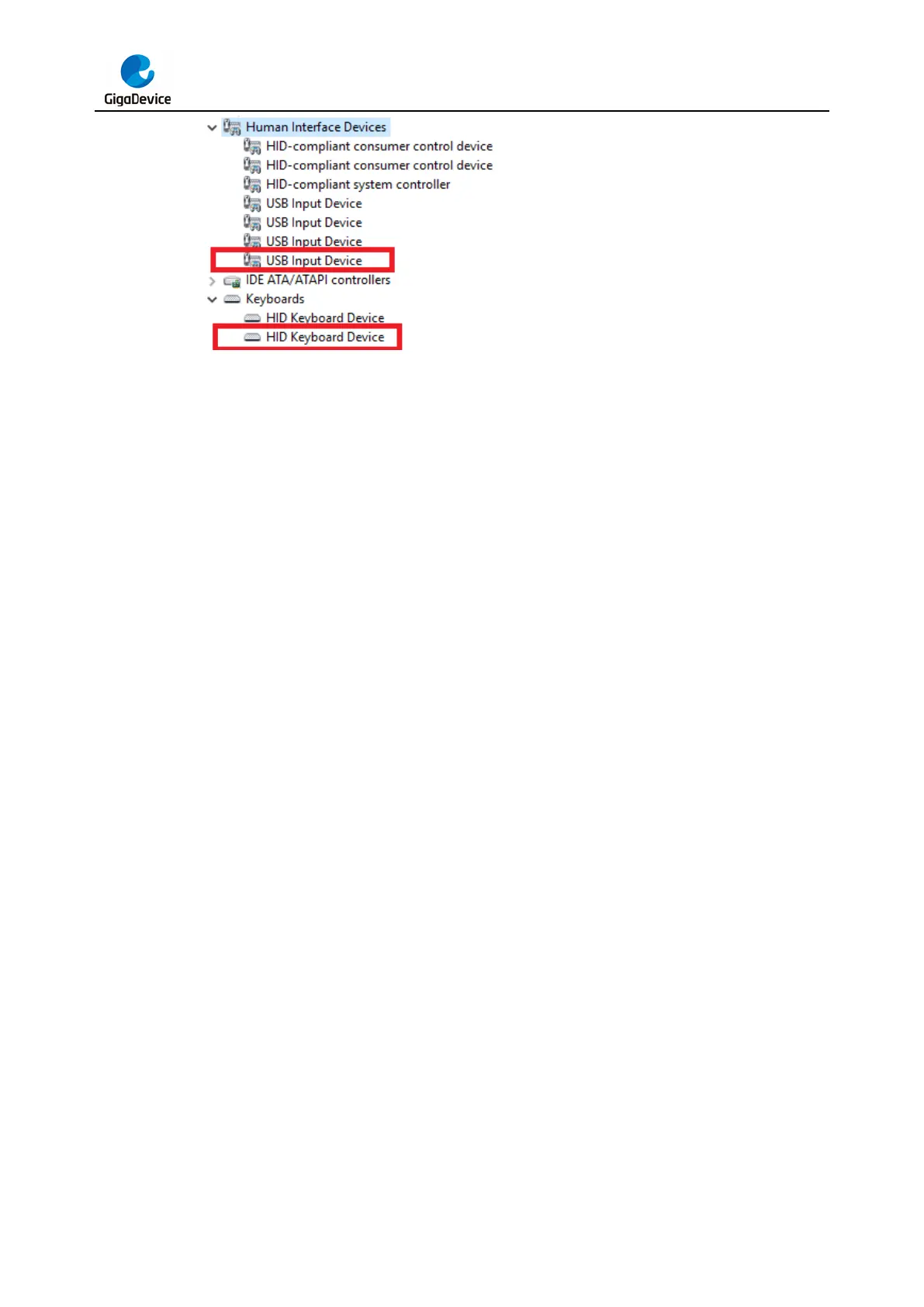

DEMO Running Result
Download the program < 25_USBHS\USB_Device\HID_Keyboard > to the EVAL board and
run. The USB Keyboard uses Joystick to output three characters (‘b’, ‘a’ and ‘c’).
If you want to test USB remote wakeup function, you can do as follows:
- Manually switch PC to standby mode
- Wait for PC to fully enter the standby mode
- Push the ‘a’ key
- If PC is ON, remote wakeup is OK, else failed.
5.25.2. MSC_Udisk
DEMO Purpose
This demo includes the following functions of GD32 MCU:
Learn how to use the USBHS
Learn how to implement USB MSC(mass storage) device
This demo mainly implements a U disk. U disk is currently very widely used removable MSC
devices. MSC, the Mass Storage device Class, is a transport protocol between a computer
and mobile devices, which allow a universal serial bus (USB) equipment to access a host
computing device, file transfer between them, mainly including mobile hard disk, mobile U
disk drive, etc. The MSC device must have a storage medium, and this demo uses the MCU's
internal SRAM as the storage medium. For more details of the MSC protocol please refer to
the MSC protocol standard.
MSC device will use a variety of transport protocols and command formats for communication,
so it need to choose the appropriate protocol and command format in the realization of the
application. This demo selects the BOT (bulk only transport) protocol and the required SCSI
(small computer interface) command, and is compatible with a wide variety of Window
operating systems. Specific BOT protocol and SCSI command specification please refer to
the standard of their agreement.
DEMO Running Result
