Download the program < 25_USBHS\USB_Device\MSC_Udisk > to the EVAL board and run.
When the EV-board connect to the PC, you will find a USB large capacity storage device is
in the universal serial bus controller, and there is 1 more disk drives in the equipment manager
of PC.

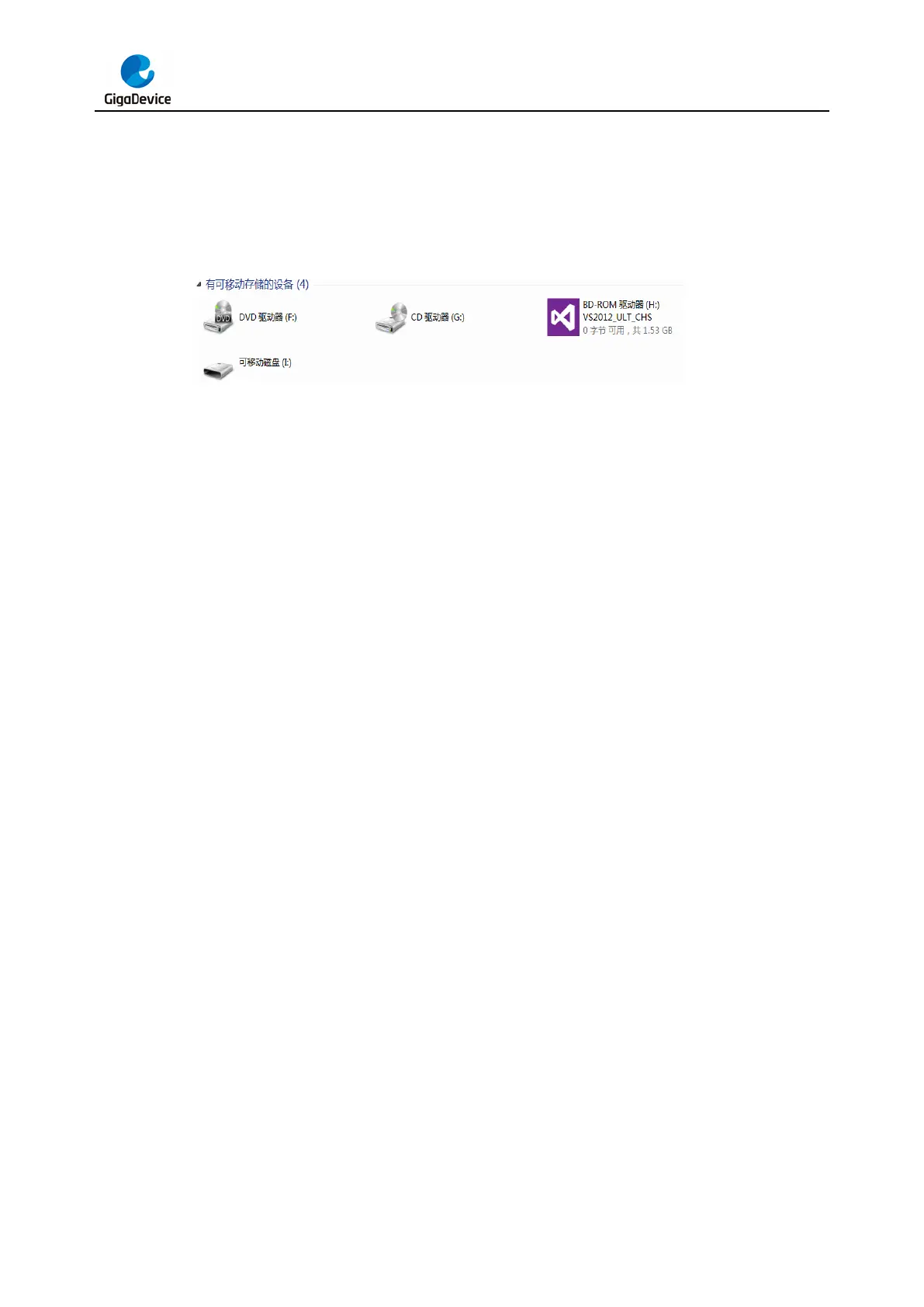

Then, after opening the resource manager, you will see more of the 1 disk, as shown in the
following diagram:
At this point, the write/read/formatting operation can be performed as the other mobile devices.
5.26. USBHS_Host
5.26.1. HID
DEMO Purpose
This demo includes the following functions of GD32 MCU:
Learn to use the USBHS as a HID host
Learn the operation between the HID host and the mouse device
Learn the operation between the HID host and the keyboard device
GD32E507Z-EVAL board integrates the USBHS module, and the module can be used as a
USB device, a USB host or an OTG device. This demo mainly shows how to use the USBHS
as a USB HID host to communicate with external USB HID device.
DEMO Running Result
Download the program < 25_USBHS\USB_Host\Host_HID > to the EVAL board and run.
If a mouse has been attached, the user will see the information of mouse enumeration. First
pressing the CET key will see the inserted device is mouse, and then moving the mouse will
show the position of mouse and the state of button in the screen.
If a keyboard has been attached, the user will see the information of keyboard enumeration.
First pressing the CET key will see the inserted device is keyboard, and then pressing the
keyboard will show the state of the button in the screen.
5.26.2. MSC
DEMO Purpose
This demo includes the following functions of GD32 MCU:
