Mini-ITX Motherboard mITX-Q47EA (MQ47EAI-SI)

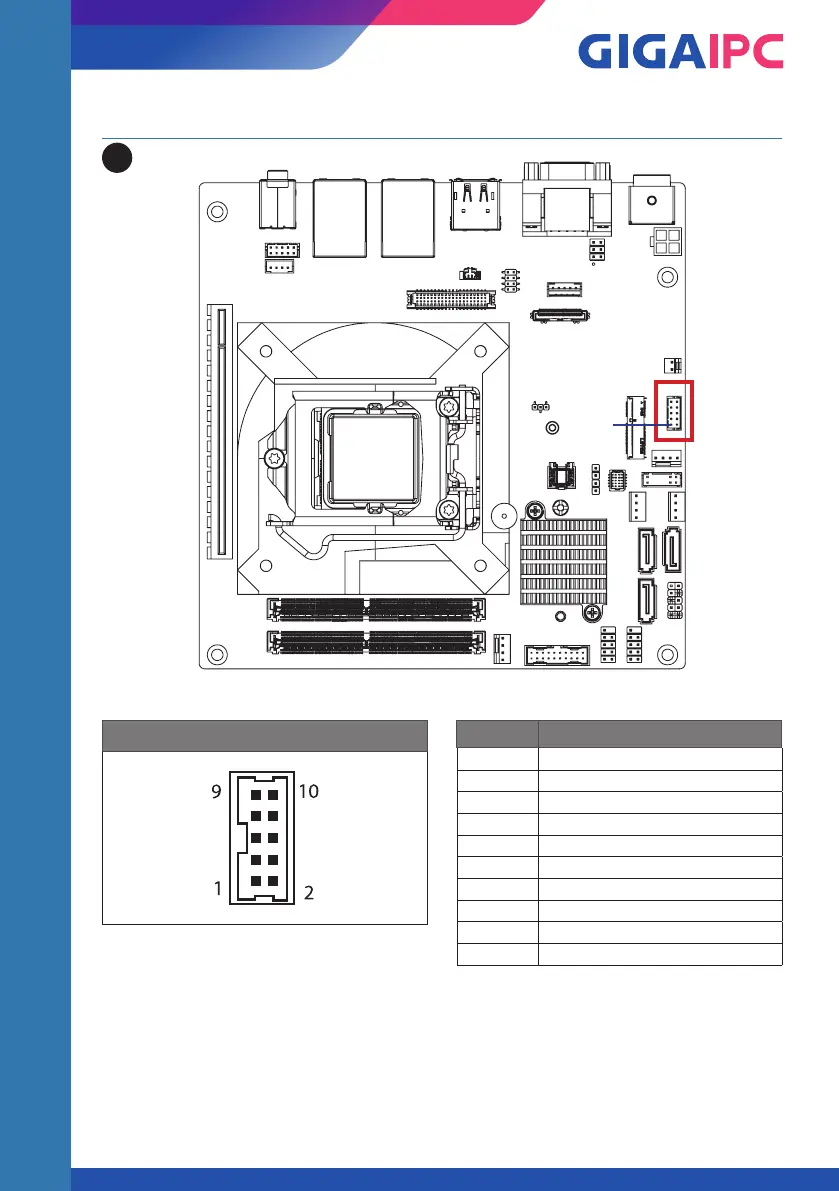

2.2.14 COM2 (RS232 Seriel Port Header)
22
COM 2 Header
Pin No. Definition
1 RX
2 DCD
3 DTR
4 TX
5 DSR
6 GND
7 CTS
8 RTS
9 RI
10 NC
Pin 1
