Mini-ITX Motherboard mITX-Q47EA (MQ47EAI-SI)

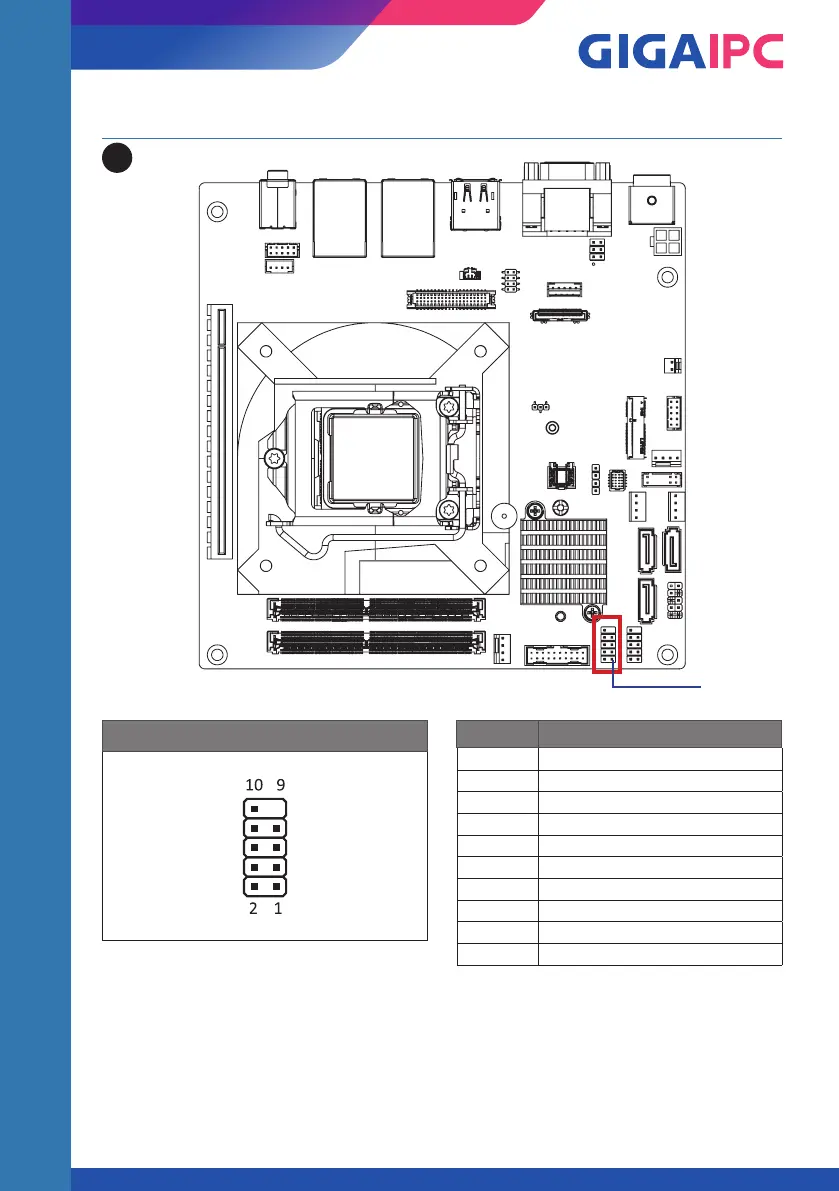

2.2.24 F_USB2_2 (USB 2.0 Header)
32
USB 2.0 Header
Pin No. Definition
1 5V
2 5V
3 D2n
4 D1n
5 D2p
6 D1p
7 GND
8 GND
9 No Pin
10 NC
Pin 1
