46
www.gigaipc.com

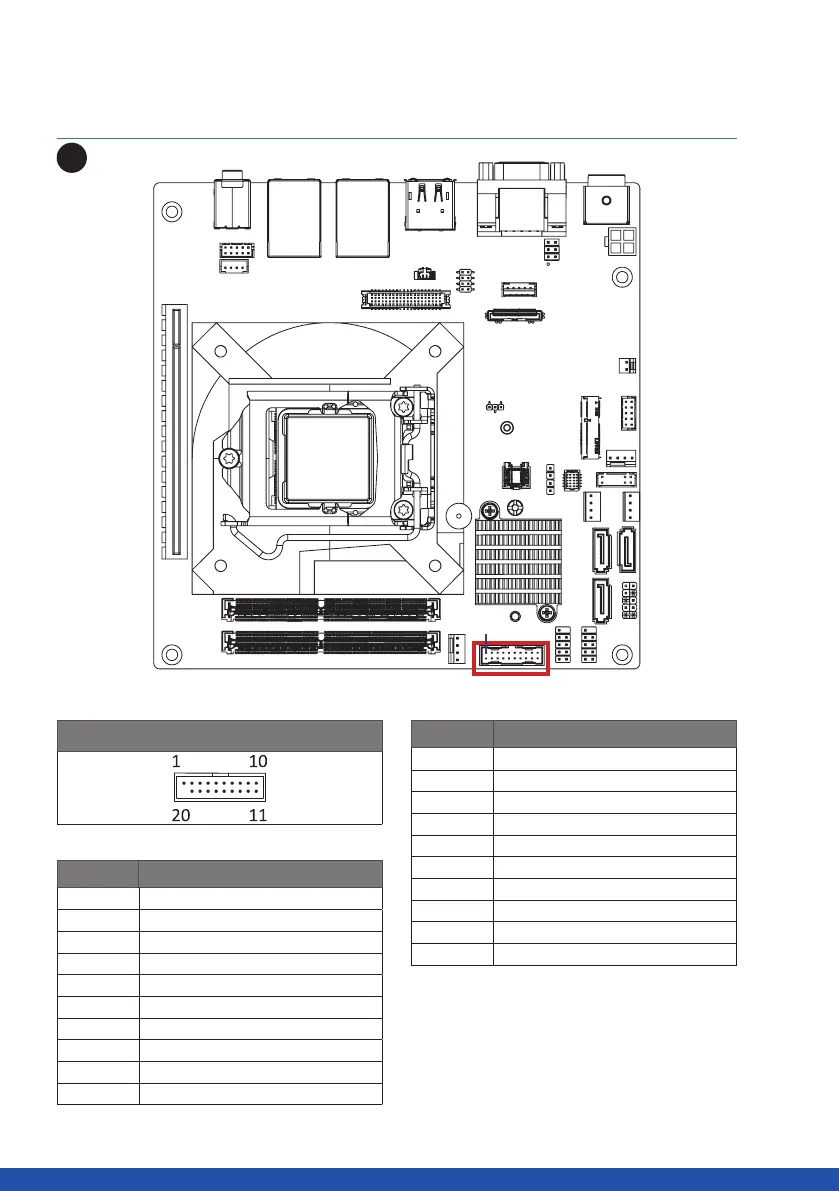

2.2.25 F_USB3 (USB 3.2 Gen1x1 Header)
33
USB 3.2 Gen1x1 Header
Pin No. Definition
1 5V
2 RX1n
3 RX1p
4 GND
5 TX1n
6 TX1p
7 GND
8 D1n
9 D1p
10 OC
Pin No. Definition
11 D2p
12 D2n
13 GND
14 TX2p
15 TX2n
16 GND
17 RX2p
18 RX2n
19 5V
20 NC
Pin 1
