Pin 1
JCOM1 Jumper Select
1-2 Close:
5V (Power COM)
3-4 Close:
RI (Stand COM)
5-6 Close:
12V (Power COM)
Connector PN Vendor
220-97-03GB01 PINREX
PH06N53BAZ000 HORNGTONG

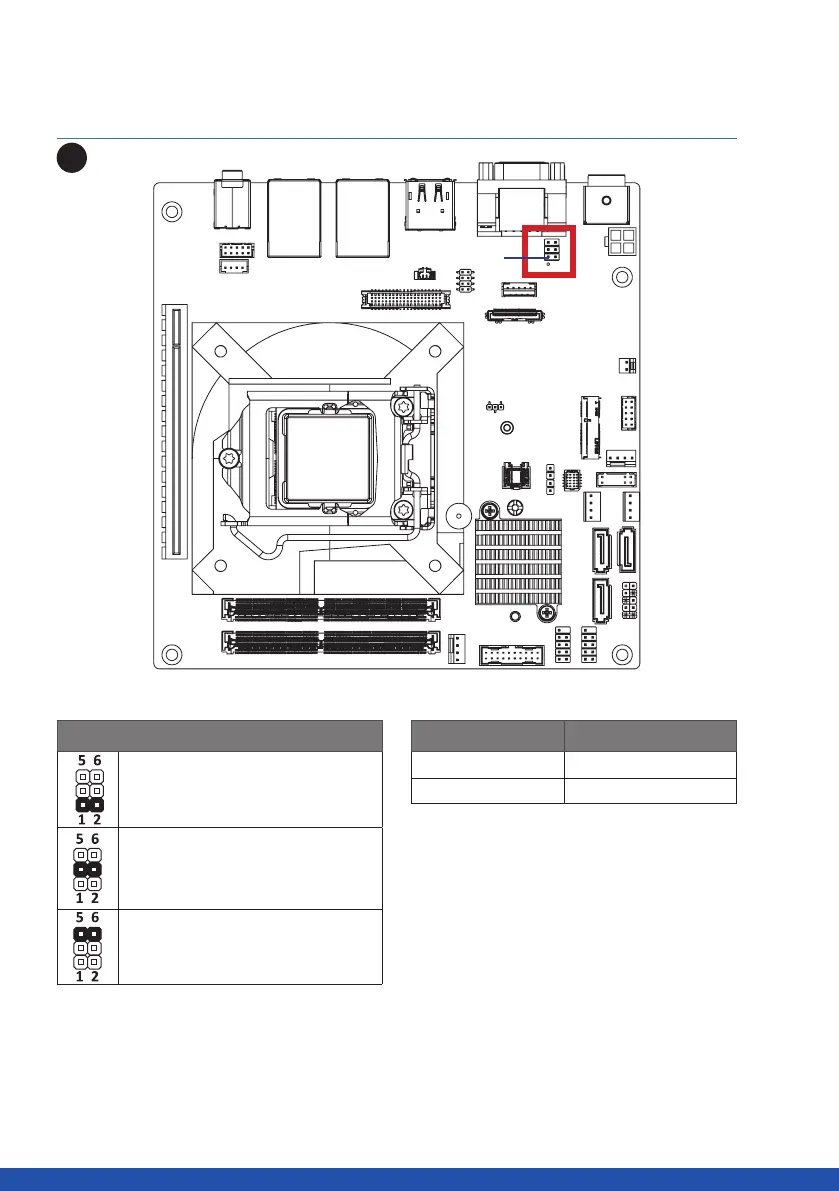

2.2.27 JCOM1 (COM1 RI# pin RI#/5V/12V Select)
