Mini-ITX Motherboard mITX-Q47EA (MQ47EAI-SI)

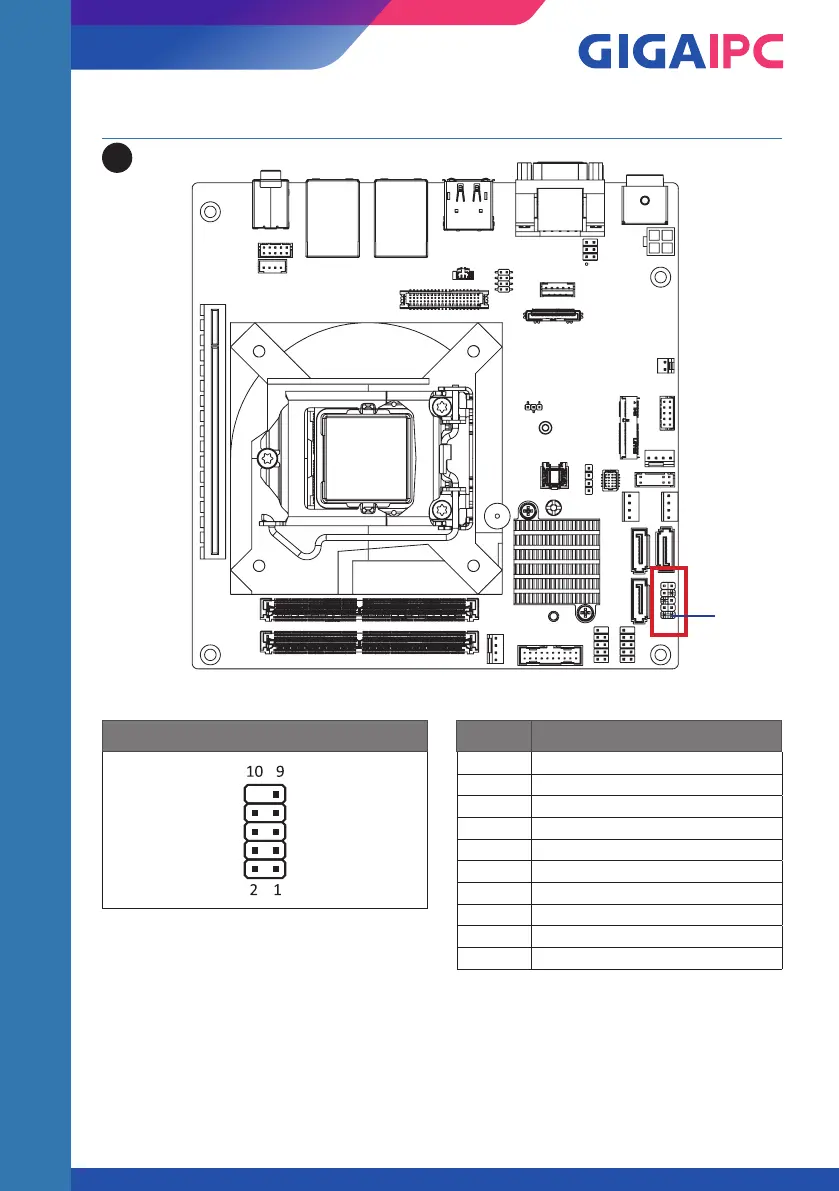

2.2.22 SYS_PANEL (System Panel Header)

System Panel Header

Pin No. Definition

1 HD-P

2 MPD-P

3 HD-N

4 MPD-N

5 GND

6 POWER-ON

7 Reset

8 GND

9 Reserved

10 NC

Pin 1
