GigRig G3 ATOM User Manual

THE ADVANCED SWITCHING SYSTEM
THE GIGRIG G3 ATOM USER MANUAL
9

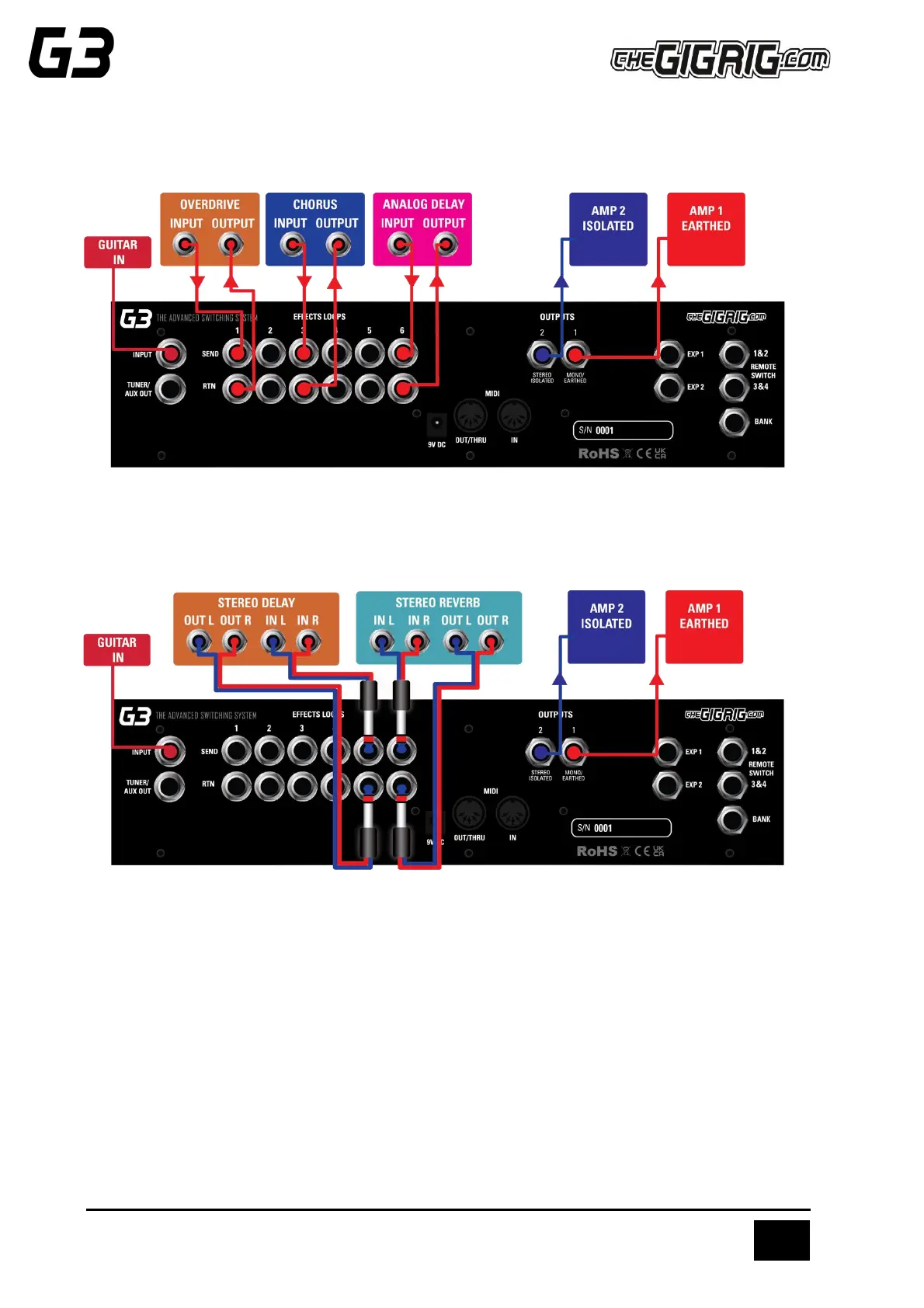

3.10 CONNECTION EXAMPLES:
CONNECTING MONO EFFECTS
Connect G3 Atom FX Loop SEND to FX Pedal Input. Connect FX Pedal OUTPUT to G3 Atom Loop
Return.
CONNECTING STEREO EFFECTS
If you want to use stereo effects with the G3 Atom, you can pair two mono loops together into a single stereo
loop. G3 Atoms’ loops are paired as follows:
Each of G3 Atoms’ loops can be configured into stereo loops using TRS to Dual Mono connectors.
To activate this functionality, enter the DEEP EDIT Menu then select GLOBAL, then select STEREO.
Then set the loops to stereo, as required.
