Page 26 MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021

Upgrading to BRCM2.x

The green LEDs on the field wiring board indicate that the power supply to the board is

established successfully.

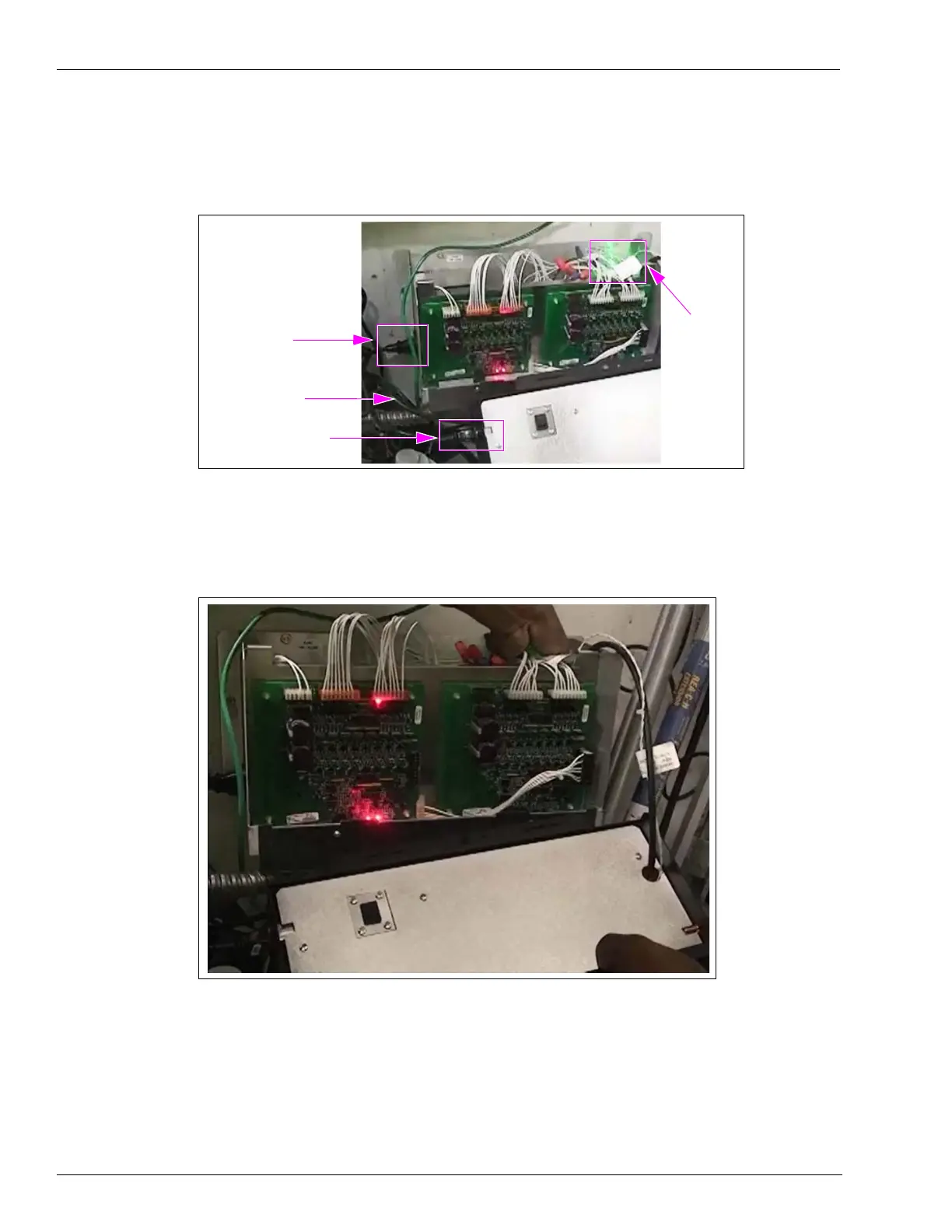

Figure 22: Green LED Indication

D-Box AC Inlet

Lid AC Power Output

AC Power Cord

Green LEDs

6 Verify that Communication (COMM) LEDs are blinking on the D-Box boards. This indicates

that the units on the forecourt are online with a current loop.

Figure 23: COMM LEDs Blinking on D-Box Board
