03_10
03_11
03_12

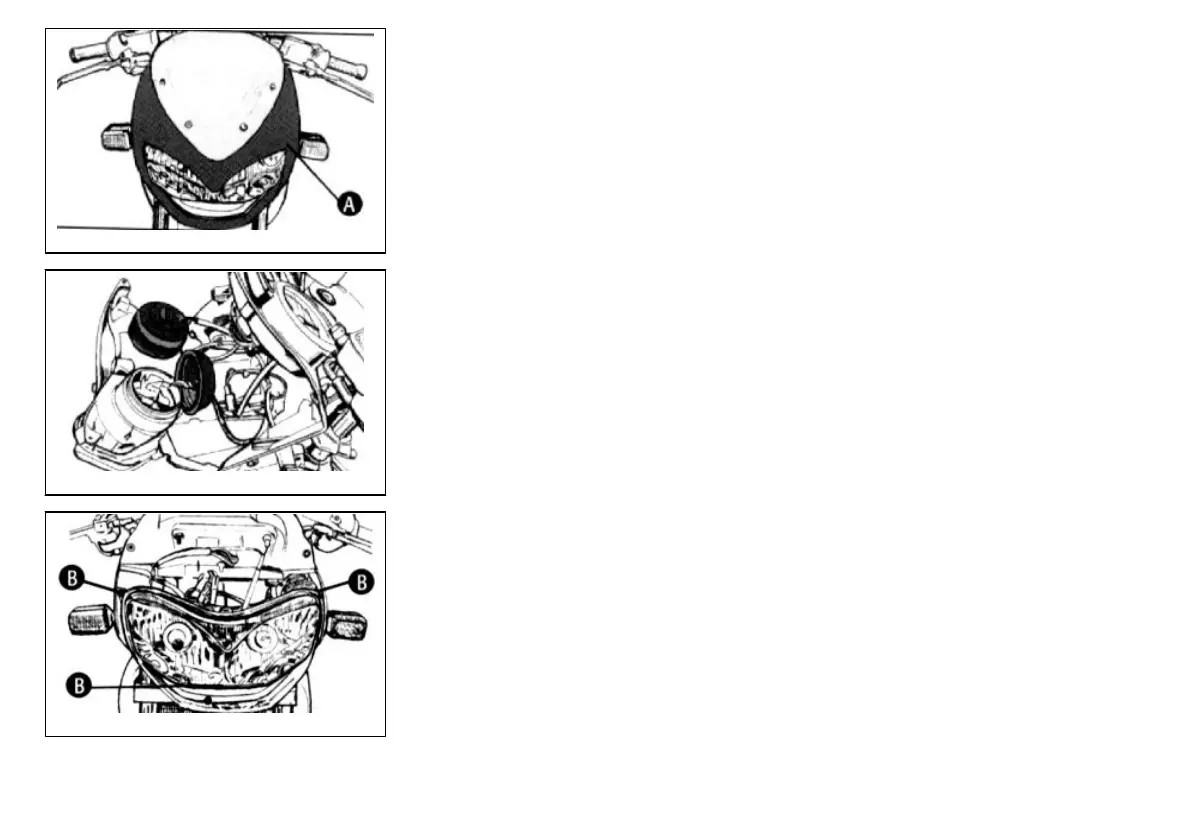

Front light group (03_10, 03_11, 03_12)
To gain access to the headlight bulb (2 dual-filament light bulbs for high and low-
beam), it is necessary to proceed as follows: remove the front cover "A" by loosening
the 6 fixing screws located behind it. Remove the headlight by loosening the 3 screws,
"B", one of which is located underneath the headlight. Remove the two rubber buffers
and detach the electrical connections. The light bulbs are fitted onto a plastic socket
and must be turned anti-clockwise by about 30 degrees to be released, observing the
reference markings on the bulb socket. Upon refitting follow the same procedure
backwards.
39
