Headlight adjustment (03_13, 03_14)

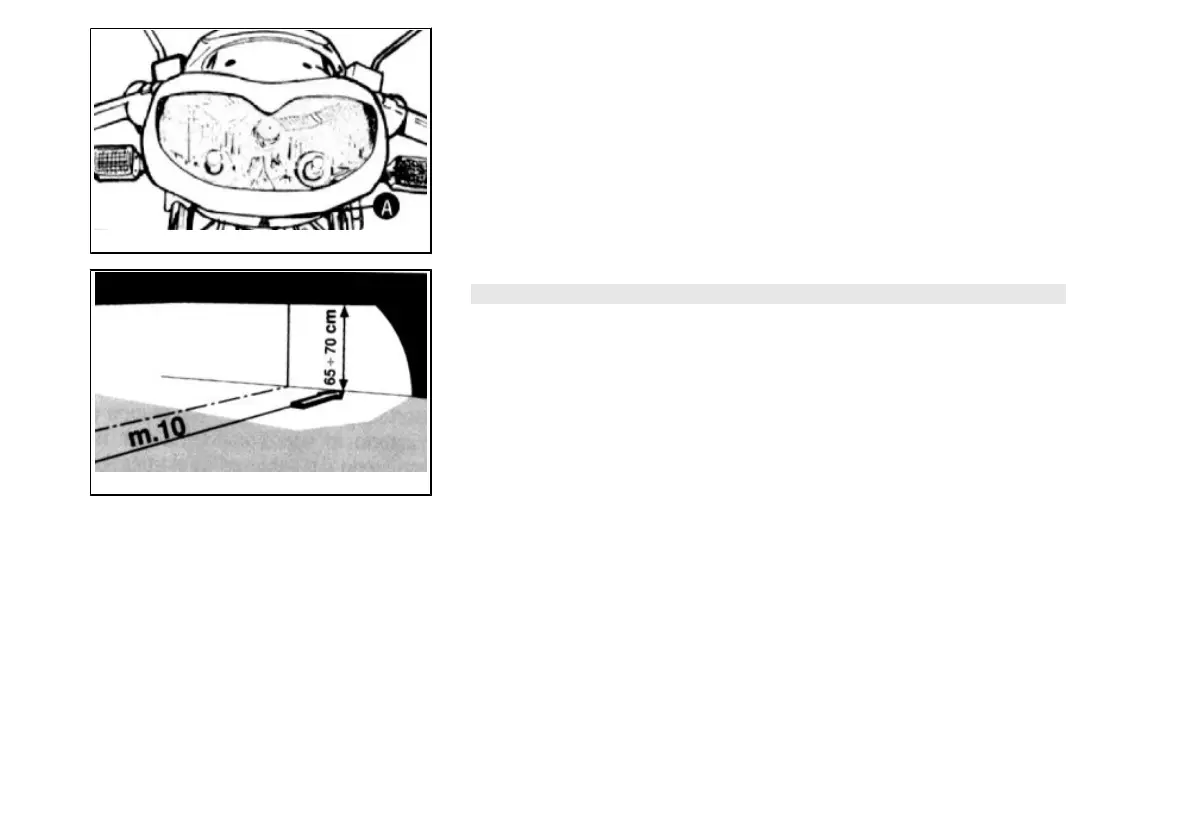

Proceed as follows:
1. Place the vehicle in running order and with the tyres inflated to the prescribed pres-
sure, on a flat surface 10 m away from a white screen situated in a shaded area,
making sure that the longitudinal axis of the vehicle is perpendicular to the screen;
2. Turn on the headlight and check that the borderline of the projected light beam on
the screen is not lower than 9/10 of the distance from the ground to the centre of
vehicle headlamp and higher than 7/10;
3. Otherwise, regulate the headlight by adjusting the screw «A», after removing the
front grille.
N.B.
THE ABOVE PROCEDURE COMPLIES WITH THE EUROPEAN STANDARDS RE-
GARDING MAXIMUM AND MINIMUM HEIGHT OF LIGHT BEAMS. REFER TO THE
STATUTORY REGULATIONS IN FORCE IN EVERY COUNTRY WHERE THE ve-
hicle IS USED.
Front direction indicators
To replace the turn signal light bulbs, remove the lamp with the transparent, by loos-
ening the fixing screw. Carefully push the bulb socket and turn it by 30° to remove it
from its housing. Remove the bulb and replace it. For the refitting, follow the above
operations in the reverse order.
