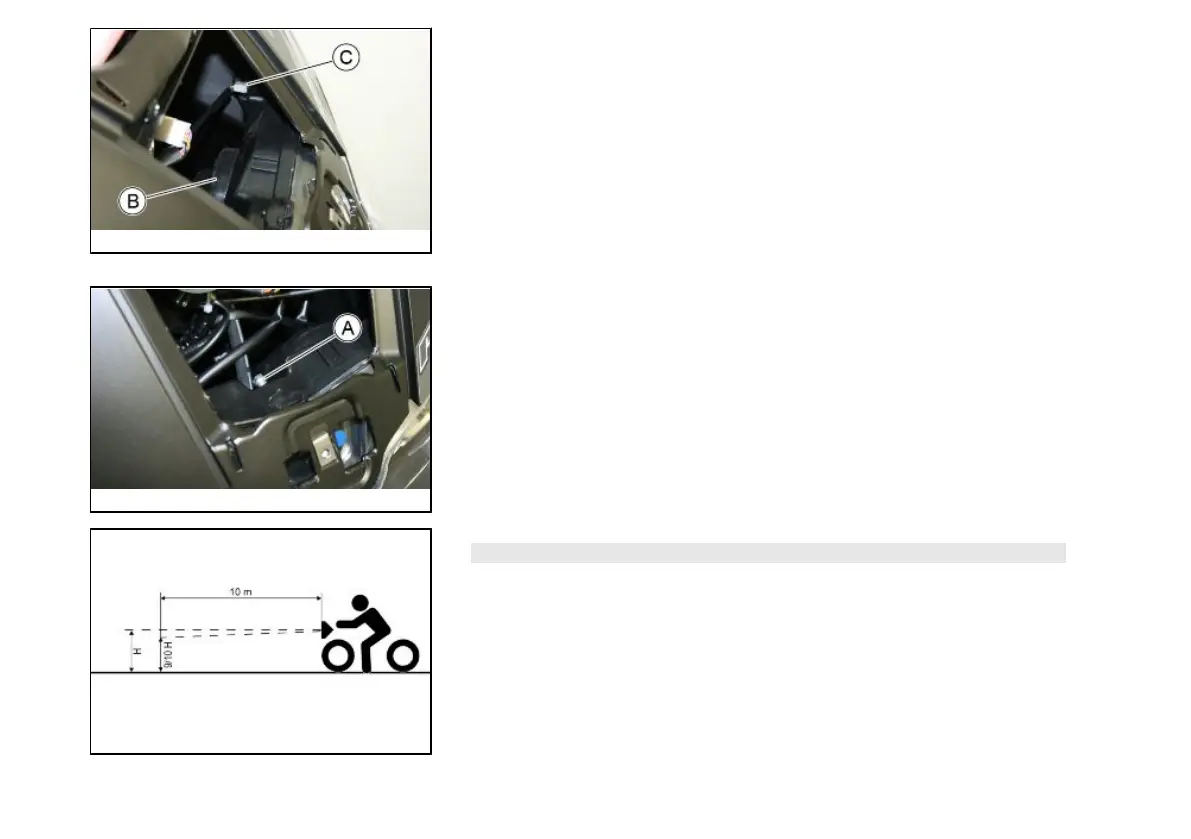

Headlight adjustment (03_29, 03_30)
Proceed as follows:
1. Place the vehicle in running order and with the tyres inflated to the prescribed pres-
sure, on a flat surface 10 m away from a white screen situated in a shaded area,
making sure that the longitudinal axis of the scooter is perpendicular to the screen;
2. Turn on the headlight and check that the borderline of the projected light beam on
the screen is not lower than 9/10 of the distance from the ground to the centre of
vehicle headlamp and higher than 7/10;
3. Otherwise, regulate the headlamp by adjusting the screw "A", which can be reached
after having removed the Piaggio shield cover.
N.B.
THE ABOVE PROCEDURE COMPLIES WITH THE EUROPEAN STANDARDS RE-
GARDING MAXIMUM AND MINIMUM HEIGHT OF LIGHT BEAMS. REFER TO THE
STATUTORY REGULATIONS IN FORCE IN EVERY COUNTRY WHERE THE VE-
HICLE IS USED.
