15
Raising and Lowering The Car
Raising The Car
Use a pressure of 34 bar to raise the car. DO NOT exceed 40 bar of pressure as this will damage the air jack system.
Once the air lance is connected to the car, open the valve on the gas bottle. The air jacks will then lift the car, at
which point the air lance can be removed.
NO WORK SHOULD BE CARRIED OUT UNDERNEATH THE CAR WITHOUT ALL THE SAFETY STANDS CORRECTLY
POSITIONED.

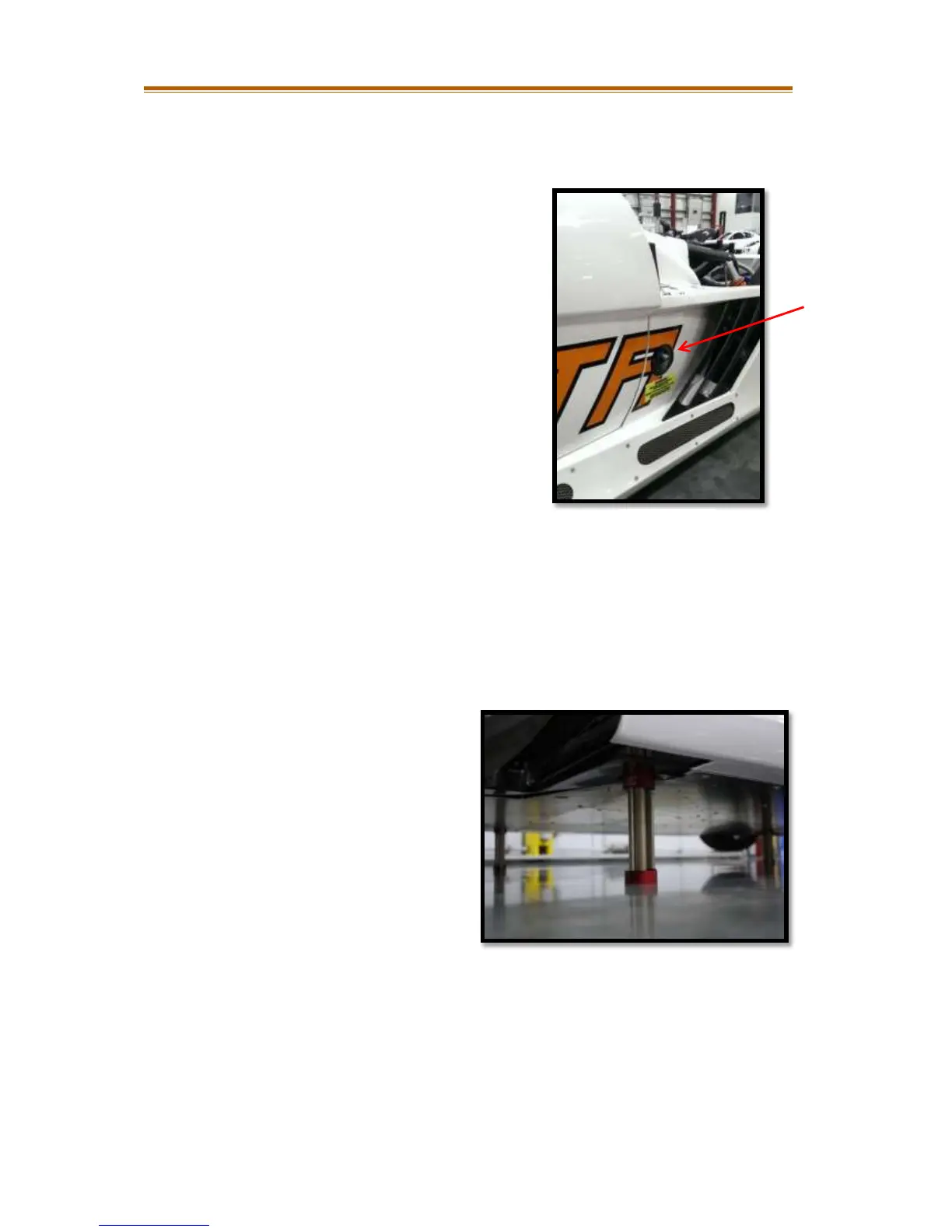

Figure 3.1
To raise the car, first the air lance needs to be
connected to the car. The hook up point is located
on the right hand side, front quarter of the car as
shown in figure 3.1.
To attach the lance correctly, grip the hose just
behind the lance with one hand, with the other hand
hold the outer handle. Engage the lance on the hook
up point and then slide the outer handle forward.
To remove the lance correctly, take the same grip as
when attaching the lance, pull back on the outer
handle until it stops, then pull the whole unit away
from the car.
If the car is being left in the air for any period of
time, safety stands should be placed around
each jack as shown in figure 3.2.
Figure 3.2
