Ginetta G55 GT4 User Manual

19

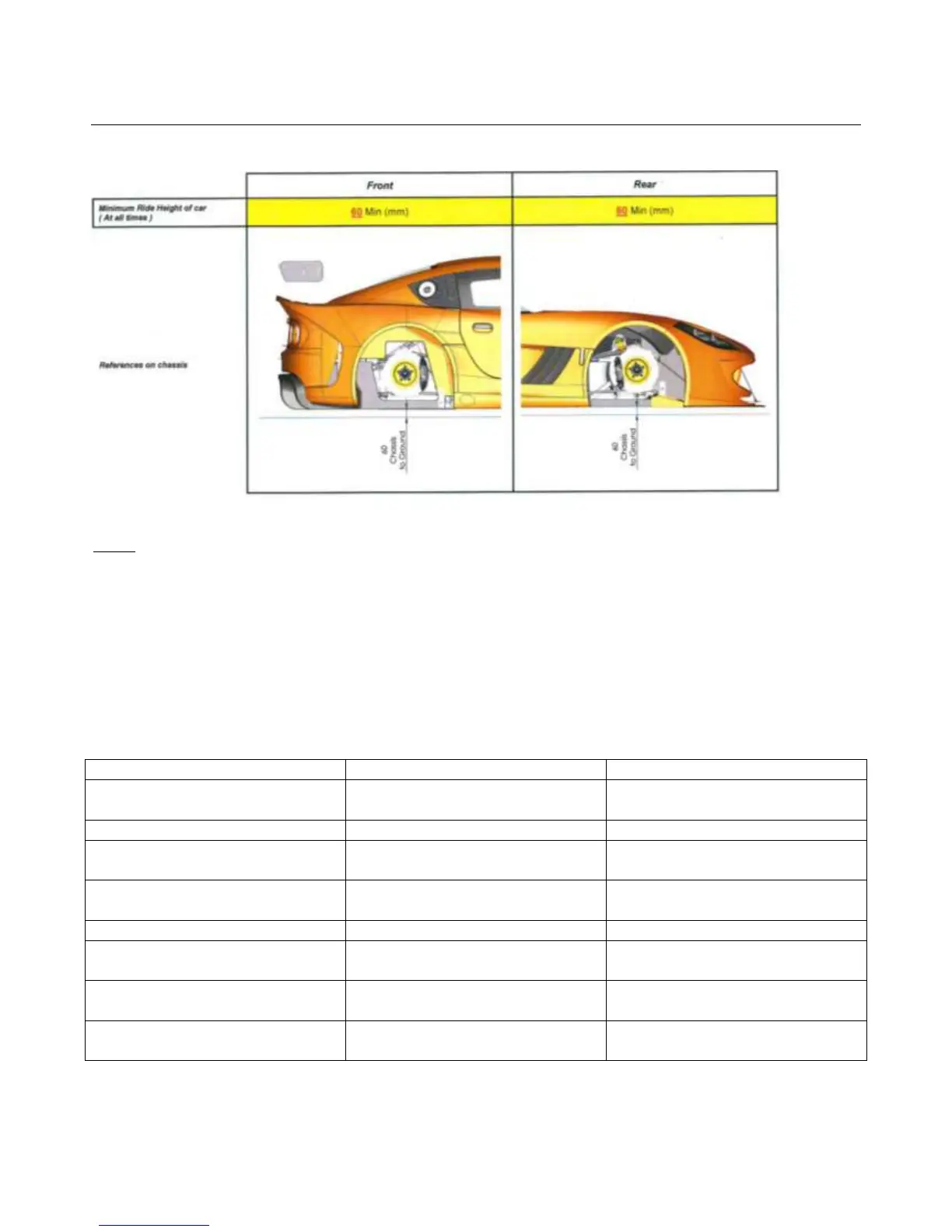

Ride Heights
Note:- This measurement is for set-up use only, and should not be used as a measurement for the championship
regulations minimum ride height.
Set Up Adjustment Details
Front
Rear
Ride Height
1 TURN SPRING PLATFORM = 2.5
MM RIDE HEIGHT
Change 1 TURN SPRING PLATFORM =
2.5 MM RIDE HEIGHT
Camber Change
3 MM SHIM = 0.5 DEGREES
3 MM SHIM = 0.5 DEGREES
Toe Change
¼ TURN TRACK ROD = 2.5 MM TOE
CHANGE @ WHEEL
¼ TURN TOE LINK = 2.5 MM TOE
CHANGE @ WHEEL
Ride Height Change With Camber
Change
1 DEGREE CAMBER CHANGE = 3 MM
RIDE HEIGHT
1 DEGREE CAMBER CHANGE = 3 MM
RIDE HEIGHT
Toe Change With Camber Change
NO CHANGE
NO CHANGE
Anti-roll bar adjustment, hole 1 –
hole 2
STIFFNESS INCREASE = 22.8%
STIFFNESS INCREASE = 17.3%
Anti-roll bar adjustment, hole 2 –
hole 3
STIFFNESS INCREASE = 25.7%
STIFFNESS INCREASE = 19.0%
Anti-roll bar adjustment, hole 3 –
hole 4
STIFFNESS INCREASE = 29.1%
STIFFNESS INCREASE = 20.8%
