INSTALLATION
- 12 -
a

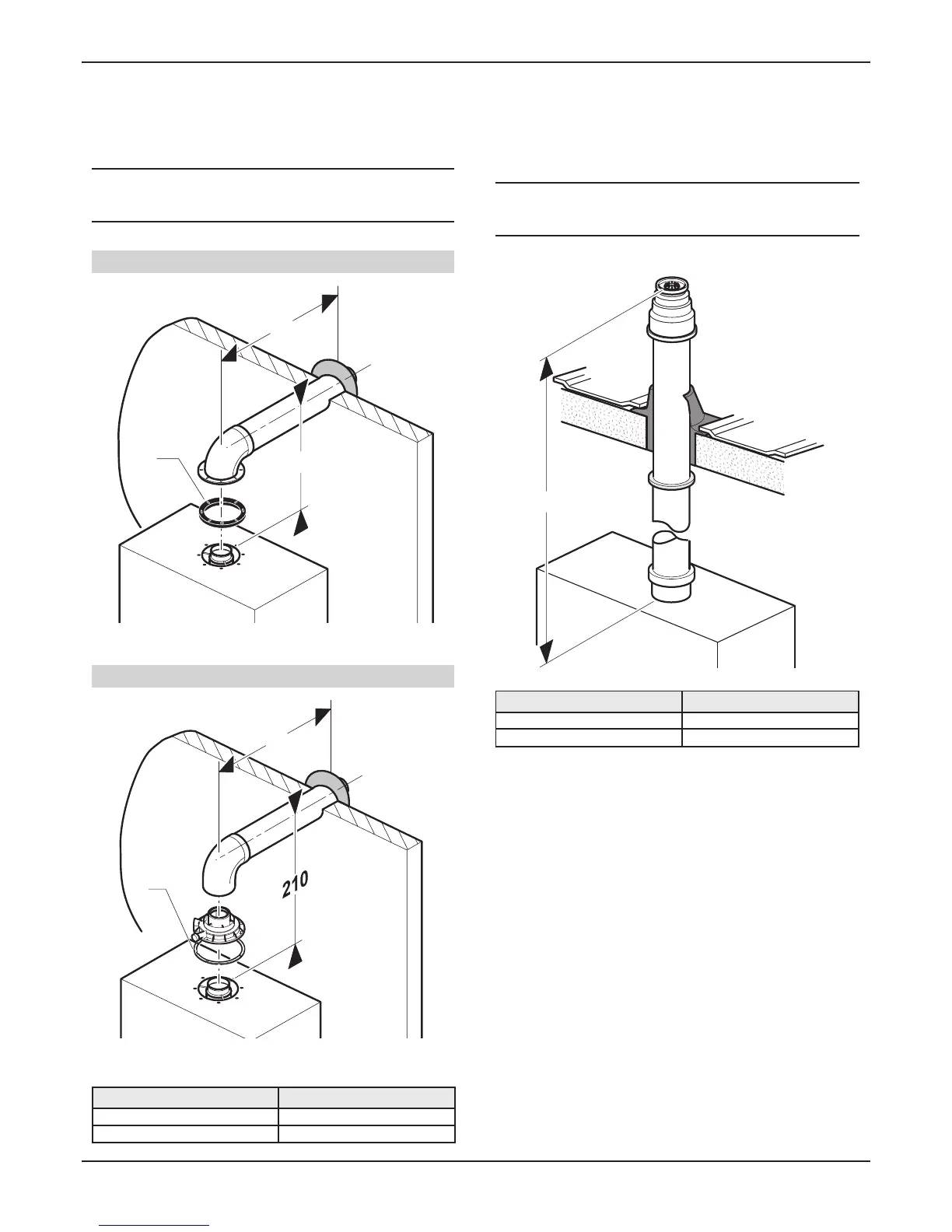

If the terminal is at less than 1.80 m from the
ground, you must install a terminal protection
kit.
Ø 60/100 mm
L
63
1
Ø 80/125 mm
L
1
Ø 60/100 10 m
Ø 80/125 25 m
Each time an additional 90° bend is necessary (or 2 at 45°),
the length (L) must be reduced by 1 m.
a
If the terminal is at less than 1.80 m from the
ground, you must install a terminal protection
kit.
L
Ø 60/100 10 m
Ø 80/125 25 m
Each time an additional 90° bend is necessary (or 2 at 45°),
the length (L) must be reduced by 1 m.
