6 Set-up
16 Installation and maintenance instructions MicraCom 0020289288_02

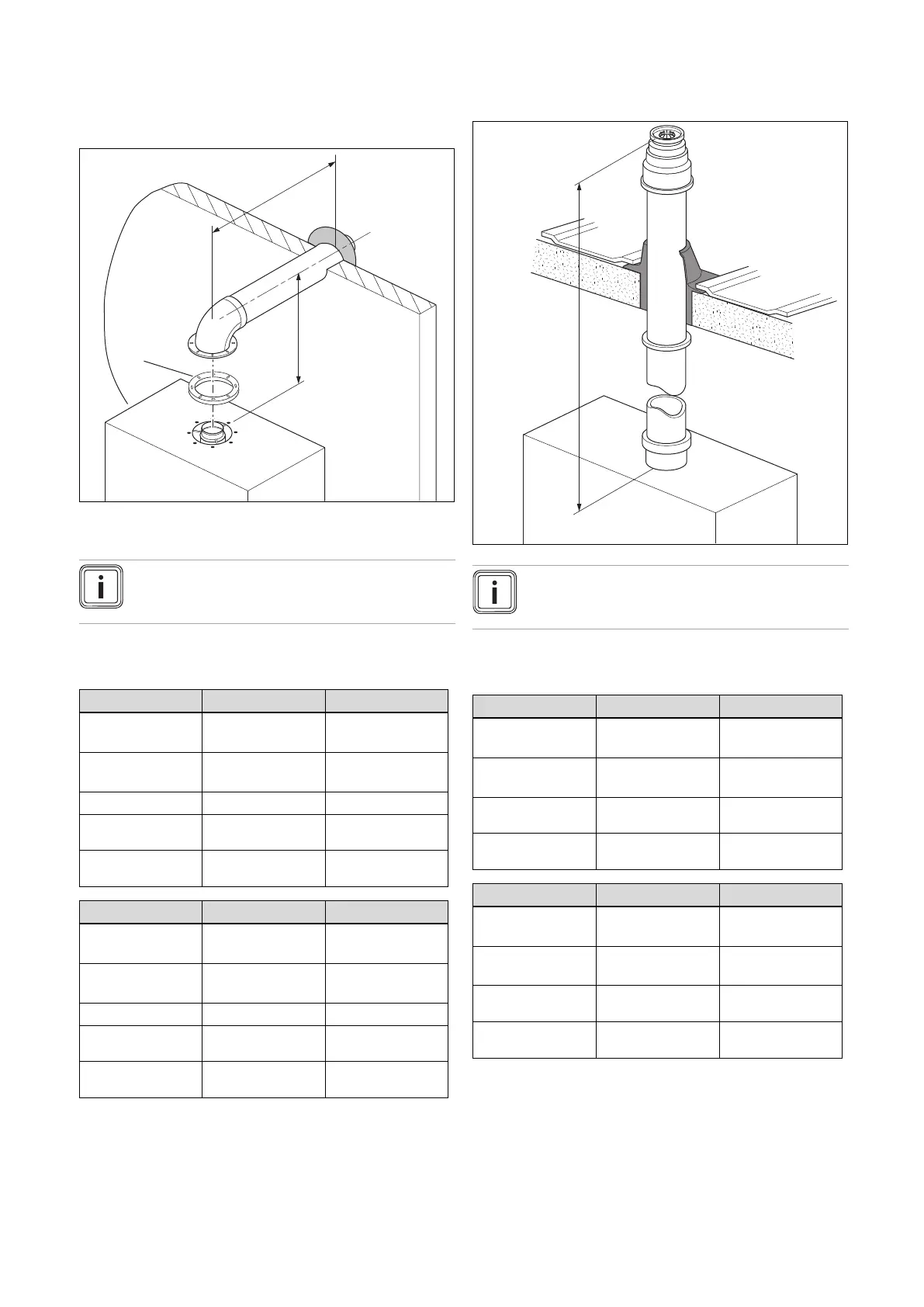

6.5.4 Flue Configuration Description
6.5.4.1 Horizontal Concentric Flue ⌀ 60/100 mm or
⌀ 80/125 mm (C13 type installation)
L
H
1
1 Gasket (fitted)
Note
If the terminal is at less than 1.80 m from the
ground, you must install a terminal protection kit.
Each time an additional 90° bend is necessary (or 2 at 45°),
the length (L) must be reduced (see table below).
⌀ 60/100 24c-AS/1 28c-AS/1
Min. length (L) 0.3 m
including 1 elbow
0.3 m
including 1 elbow
Max. length (L) 9 m
including 1 elbow
9 m
including 1 elbow
Max. height (H) 0.63 m 0.63 m
Equivalence to 1
elbow 90°
1 m 1 m
Equivalence to 1
elbow 45°
0.5 m 0.5 m
⌀ 80/125 24c-AS/1 28c-AS/1
Min. length (L) 0.3 m
including 1 elbow
0.3 m
including 1 elbow
Max. length (L)
16 m
including 1 elbow
20 m
including 1 elbow
Max. height (H) 2.10 m 2.10 m
Equivalence to 1
elbow 90°
2.5 m 2.5 m
Equivalence to 1
elbow 45°
1 m 1 m
6.5.4.2 Vertical Concentric Flue ⌀ 60/100 mm or
⌀ 80/125 mm (C33 type installation)
L
Note
If the terminal is at less than 1.80 m from the
ground, you must install a terminal protection kit.
Each time an additional 90° bend is necessary (or 2 at 45°),
the length (L) must be reduced (see table below).
⌀ 60/100 24c-AS/1 28c-AS/1
Min. length (L) 0.3 m
including 1 elbow
0.3 m
including 1 elbow
Max. length (L) 10 m
including 1 elbow
10 m
including 1 elbow
Equivalence to 1
elbow 90°
1 m 1 m
Equivalence to 1
elbow 45°
0.5 m 0.5 m
⌀ 80/125 24c-AS/1 28c-AS/1
Min. length (L) 0.3 m
including 1 elbow
0.3 m
including 1 elbow
Max. length (L) 16 m
including 1 elbow
20 m
including 1 elbow
Equivalence to 1
elbow 90°
2.5 m 2.5 m
Equivalence to 1
elbow 45°
1 m 1 m
