GME TX6165 - Ctcss;Dcs Global or Independent Selection; Ctcss and Dcs Code Selection

23
TX6165 INSTRUCTION MANUAL
CTCSS/DCS GLOBAL OR INDEPENDENT SELECTION
When utilising CTCSS/DCS there are two settings available, Global (Gbl) which enables CTCSS/DCS for all
channels 1-80, and Independent (Ind) which enables CTCSS/DCS for the selected channel only.
To select CTCSS/DCS Global or independent:
1. Select the required channel.
2. Press and hold the Menu key until the radio beeps. CT Gbl/Ind or DT Gbl/Ind will be displayed
with Gbl or Ind ashing.
3. Press the or keys to select ‘Gbl’ (Global) or ‘Ind’ (Independent).
4. Press the PTT switch to conrm your selection and exit the menu, or briey press the Menu
key to continue to CTCSS/DCS code selection.

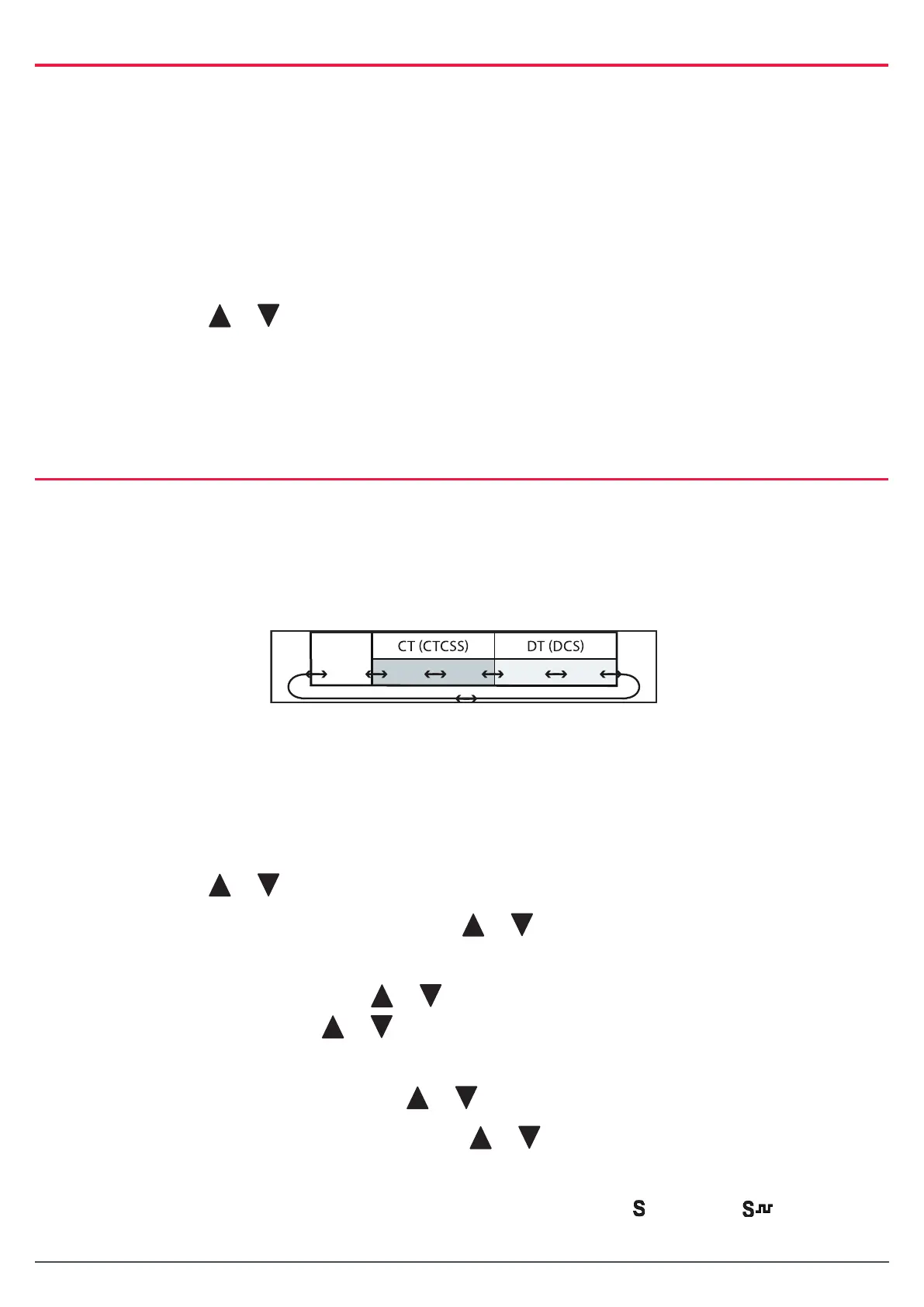

CTCSS AND DCS CODE SELECTION
The radio is tted with both CTCSS and DCS systems. There are 50 CTCSS tones and 104 DCS codes. The
DCS codes and the CTCSS tones are accessed through the same menu (refer the following table). When
CTCSS tones are being selected, ‘CT’ is displayed. To access DCS codes, scroll past CTCSS tone 50 until
‘DT’ is displayed.
To select a CTCSS or DCS code:
1. Select the required channel.
2. Press and hold the Menu key until the radio beeps. ‘CT’ (for CTCSS) or ‘DT’ (for DCS) will be
displayed.
3. Press the or keys to select the required tone/code.
4. To select CTCSS tones 01 to 50 press the or keysys while ‘CT’ is displayed. When a
CTCSS code is selected the icon is displayed.
5. To select DCS codes, hold the or keys to scroll past CTCSS tone 50 until ‘DT’ is
displayed. Now use the or keys to select the required DCS code 001 to 104. When a
DCS code is selected the icon is displayed.
6. To return to CTCSS tones hold the or keys until ‘CT’ is displayed again.
7. To turn the CTCSS/DCS tones o, hold the or keys to step to the end of the code list
until oFF is displayed.
8. Press the PTT switch to conrm and store your selection. The (CTCSS) or (DCS) icon
remains on the display to conrm the code system you have selected.
TX6160 INSTRUCTION MANUAL
24
DUPLEX MODE SELECTION
The Duplex option only appears in the Menu if a repeater channel (1 – 8 or 41 – 48) is selected prior to
entering the menu.
To enable duplex on the selected repeater channel:
1. Select a repeater channel 1 – 8 or 41 – 48 using the
or keys.
2. Press and hold the Menu key until the radio beeps. The
C H AN NE L
31
C H AN NE L
1
C H AN NE L
1
C H AN NE L
31
VE HIC L E
R E P E AT E R
O P E R AT IO N
VE HIC L E
R E P E AT E R
S T AT IO N
Figure 1 - Simple/Duplex Range Comparison
icon will ash.
3. Press the
or keys to toggle ‘on’ (duplex enabled) or ‘oFF’ (duplex disabled) on the
display.
4. Press the PTT switch to store your setting and exit the Menu.
When Duplex is enabled on a repeater channel, the
C H AN NE L
31
C H AN NE L
1
C H AN NE L
1
C H AN NE L
31
VE HIC L E
R E P E AT E R
O P E R AT IO N
VE HIC L E
R E P E AT E R
S T AT IO N
Figure 1 - Simple/Duplex Range Comparison
icon will be displayed on that channel.
CTCSS/DCS GLOBAL OR INDEPENDENT SELECTION
When utilising CTCSS/DCS there are two settings available, Global (Gbl) which enables CTCSS/DCS for all
channels 1-80, and Independent (Ind) which enables CTCSS/DCS for the selected channel only.
To select CTCSS/DCS Global or independent:
1. Select the required channel.
2. Press and hold the Menu key until the radio beeps. CT Gbl/Ind or DT Gbl/Ind will be displayed
with Gbl or Ind ashing.
3. Press the
or keys to select ‘Gbl’ (Global) or ‘Ind’ (Independent).
4. Press the PTT switch to conrm your selection and exit the menu, or briey press the Menu
key to continue to CTCSS/DCS code selection.
CTCSS AND DCS CODE SELECTION
The radio is tted with both CTCSS and DCS systems. There are 50 CTCSS tones and 104 DCS codes. The
DCS codes and the CTCSS tones are accessed through the same menu (refer the following table). When
CTCSS tones are being selected, ‘CT’ is displayed. To access DCS codes, scroll past CTCSS tone 50 until
‘DT’ is displayed.
TX6160 Instrucon Manual
14 June 2018
© 2018 Standard Communicaons Pty Ltd trading as GME. All rights reserved.
25
50158
Content
Using the Menu
• To access the menu, press and hold the Menu key unl the radio beeps. Menu opons
will appear in the order listed above.
• To step to the next menu item, press the Menu key again.
• To change opons in selected menu, press the or keys.
• To store your selecon and exit menu, press the PTT switch.
Duplex Mode Selecon
The Duplex opon only appears in the Menu if a repeater channel (1 – 8 or 41 – 48) is selected prior
to entering the menu.
To enable duplex on the selected repeater channel:
1. Select a repeater channel 1 – 8 or 41 – 48 using the or keys.
2. Press and hold the Menu key unl the radio beeps. The icon will ash.
3. Press the or keys to toggle ‘on’ (duplex enabled) or ‘oFF’ (duplex disabled)
on the display.
4. Press the PTT switch to store your seng and exit the Menu.
When Duplex is enabled on a repeater channel, the icon will be displayed on that channel.
CTCSS/DCS Global or Independent Selecon
When ulising CTCSS/DCS there are two sengs available, Global (Gbl) which enables CTCSS/DCS for
all channels 1-80, and Independent (Ind) which enables CTCSS/DCS for the selected channel only.
To select CTCSS/DCS Global or independent:
1. Select the required channel.
2. Press and hold the Menu key unl the radio beeps. CT Gbl/Ind or DT Gbl/Ind will be
displayed with Gbl or Ind ashing.
3. Press the or keys to select ‘Gbl’ (Global) or ‘Ind’ (Independent).
4. Press the PTT switch to conrm your selecon and exit the menu, or briey press the
Menu key to connue to CTCSS/DCS code selecon.
CTCSS and DCS Code Selecon
The radio is ed with both CTCSS and DCS systems. There are 50 CTCSS tones and 104 DCS codes.
The DCS codes and the CTCSS tones are accessed through the same menu (refer the following table).
When CTCSS tones are being selected, ‘CT’ is displayed. To access DCS codes, scroll past CTCSS tone
50 unl ‘DT’ is displayed.
OFF 01 50 001 104
