TX6165 INSTRUCTION MANUAL
CONTROLS
This section provides gures and a table that describes various parts of the TX6165 radio.

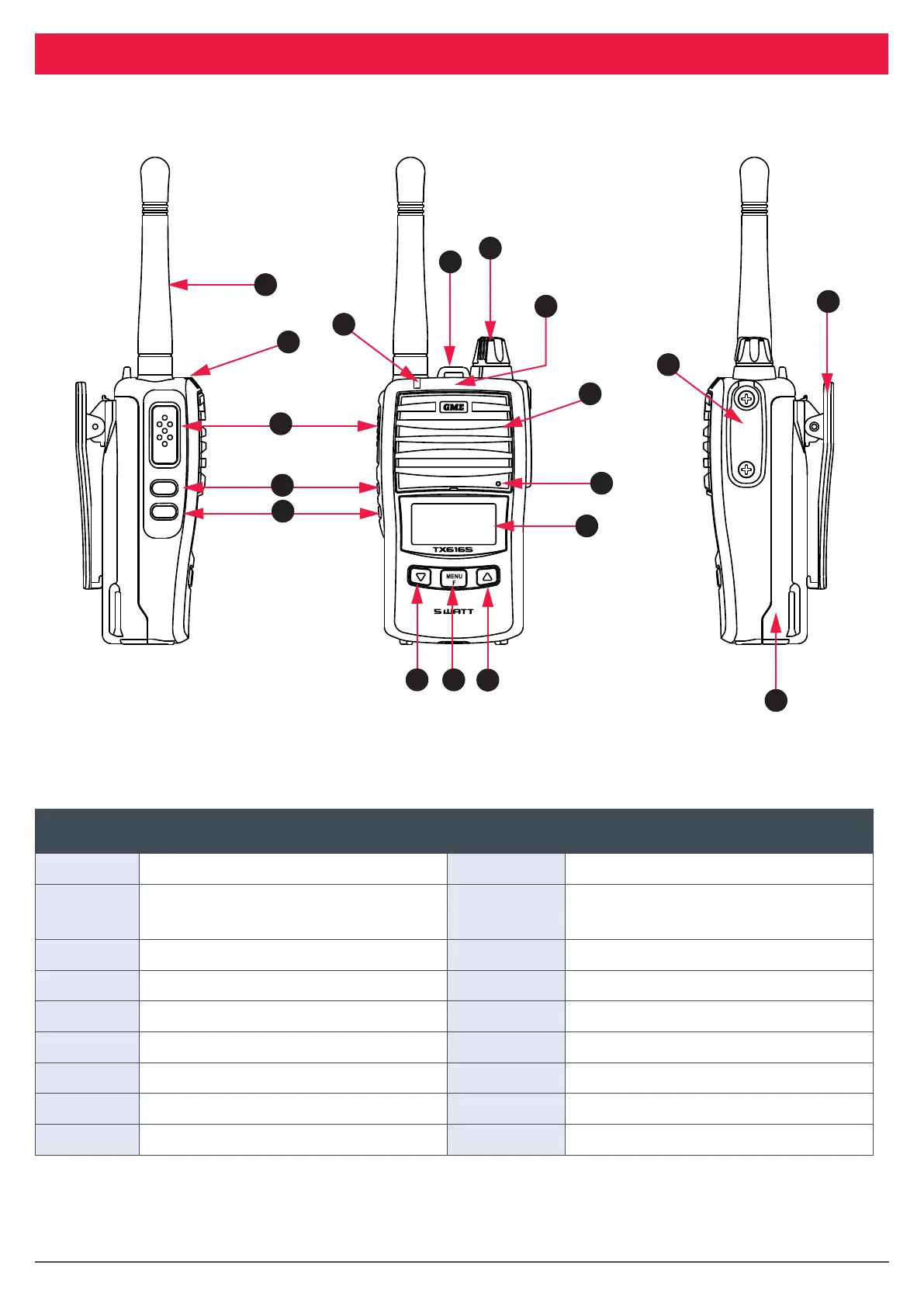

The table that follows is a numbered description of the parts of the TX6165 radio, as labeled in the
diagram above.
Label No. Description Label No. Description
1 Antenna 10
Microphone
2
Squelch/LED Torch Dual/Triple
Watch Key
11 LCD Display
3
PTT (Push-to-talk) Switch
12
Channel Up Key
4
Programable/Scan/Scan Channel Key
13
Menu/Function Key
5
Priority Channel/Keylock/Silent Key
14
Channel Down Key
6
Indicator LED
15
Accessory Jack
7
Lanyard Mount
16
Belt Clip
8
On/O Switch and Volume Control
17
Battery
9 Speaker 18
Torch
PRO
PRI
SCAN
LOCK
MIC
2
7
1
3
4
5
6
8
9
10
11
12
13
14
15
17
16
18
