TX667 Instruction Manual
12

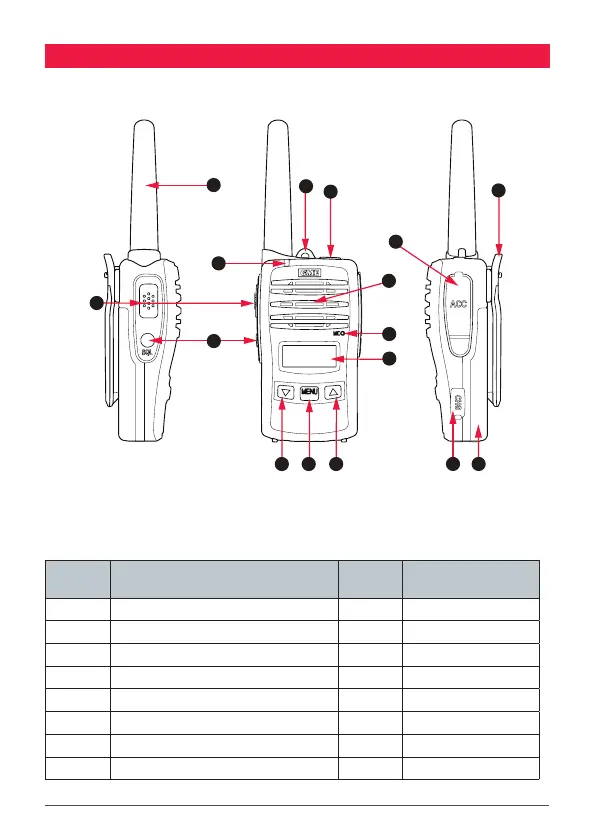

CONTROLS
This section provides gures and a table that describes various parts of the TX667
radio.
The table that follows is a numbered description of the parts of the TX667 radio,
as labeled in the diagram above.
Label
No.
Description
Label
No.
Description
1 Antenna 9 LCD Screen
2 PTT (Push to Talk) Switch 10 Accessory Jack
3 Squelch/Silent/Memory Key 11 Belt Clip
4 Indicator LED 12 Battery Cover
5 Lanyard Mount 13 USB Charge Socket
6 On/O Switch 14 Up/Scan Key
7 Speaker 15 Menu/Function Key
8 Microphone 16 Down/Lock Key
Indicator
LED
PTT
(Push
to Talk)
Switch
Squelch/Silent/
Memory Key
4
3
2
4
5
6
1
7
8
9
10
15 14
13 12
11
16
2
Antenna
Lanyard
Mount
On/O Switch
Speaker
Microphone
LCD Screen
Accessory Jack
Belt Clip
Battery Cover
USB Charge
Socket
Up/Scan
Key
Down/Lock
Key
Menu/
Function Key
