CONTROL GUIDE
Located at the back left of the
machine applies power to the
laminator. The control panel display
will illuminate when position
marked “l” is pushed. The off
position, marked “O”, removes
power from the laminator.
B. CONTROL PANEL DISPLAY:
(Figure 4) Illuminates when the
laminator is plugged in and POWER
ON/ OFF is in the on, (I), position.
Displays settings for top heater,
bottom heater, speed, Job, mode
and ready/wait/ positioning
indicator.
ROLLER POSITION INDICATOR:
Displays the current main roller
position. In figure 7, the roller is
shown in the “Release” position.
Refer to Roller Handle for more
information.
READY/ WAIT INDICATOR:
“READY” appears when actual
temperature is equal to (+/- 5) set
temperature. “WAIT“ appears
when actual temperature is lower
than the set temperature. “WAIT”
appears when actual temperature
is higher than the set temperature.
POSITIONING INDICATOR:
“Positioning...” appears in place
of the ready/ wait indicator any
time the main rollers are traveling in
an upward or downward motion.
C. CONTROL PANEL: (Figure 6)
MASTER DIAL :
Increases (+)
or decreases (-) the numeric value
for the selected setting when
display actual temperature of top
and bottom main rollers.
Top Temp. :
When pressed,
permits increasing or decreasing of
the top temperature by turning the
MASTER DIAL
and is
indicated on the control panel
display. Range is 0
O
C
- 150
O
C).
Bottom Temp. :
When
pressed, permits increasing or
decreasing of the bottom tempera-
ture by turning the
MASTER DIAL
and is indicated on the control
panel display. Range is 32
o
F -
0
O
C - 150
O
C.

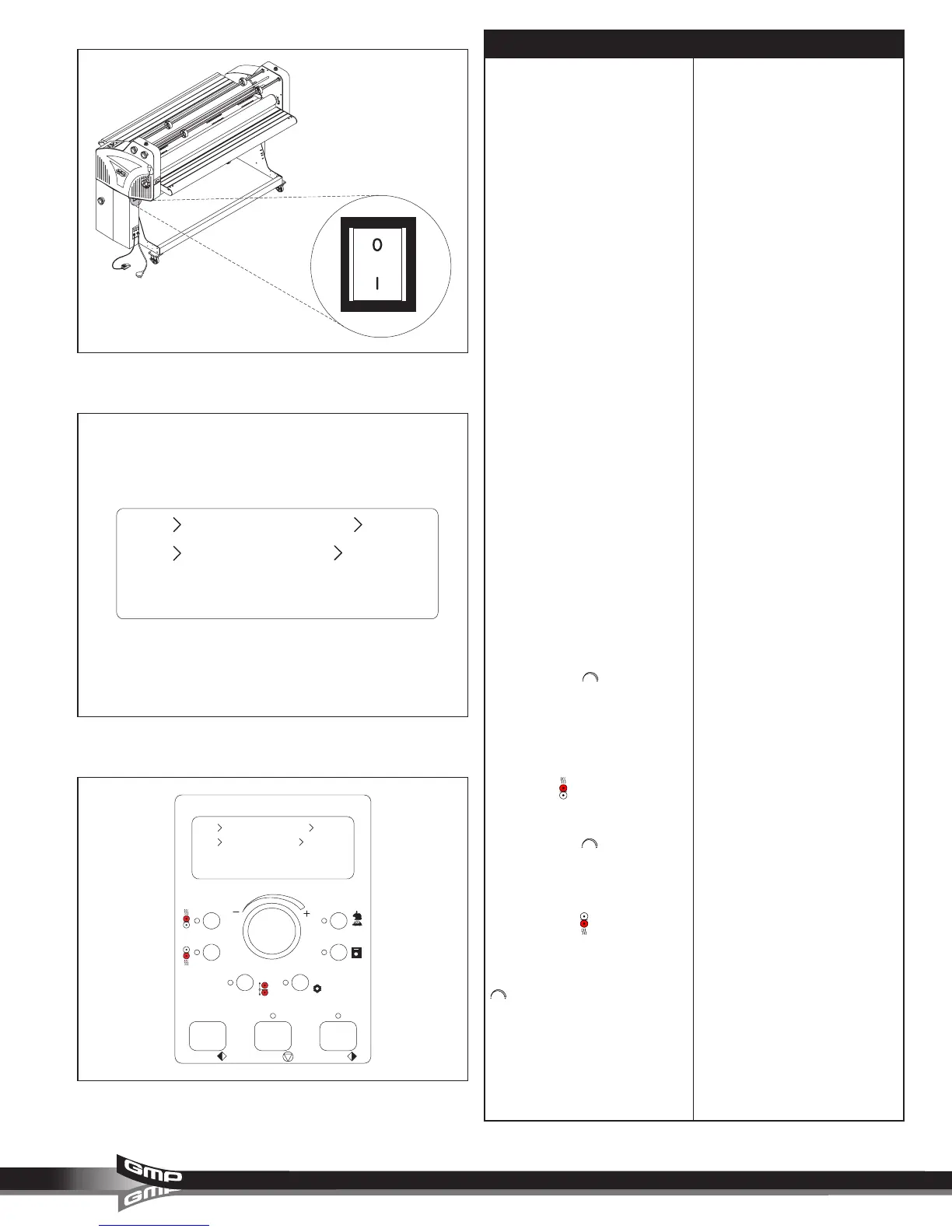

Fig. 4
Fig. 5
Fig. 6
Release
WAIT
TOP
JOB
SPEED0℃
BOT0℃
03
01
Release
WAIT
TOP
JOB
SPEED0℃
BOT0℃
03
01
Top Temp.
Rev. Stop Run
Bottom Temp.
Speed
Job
Press/Release Cooling
