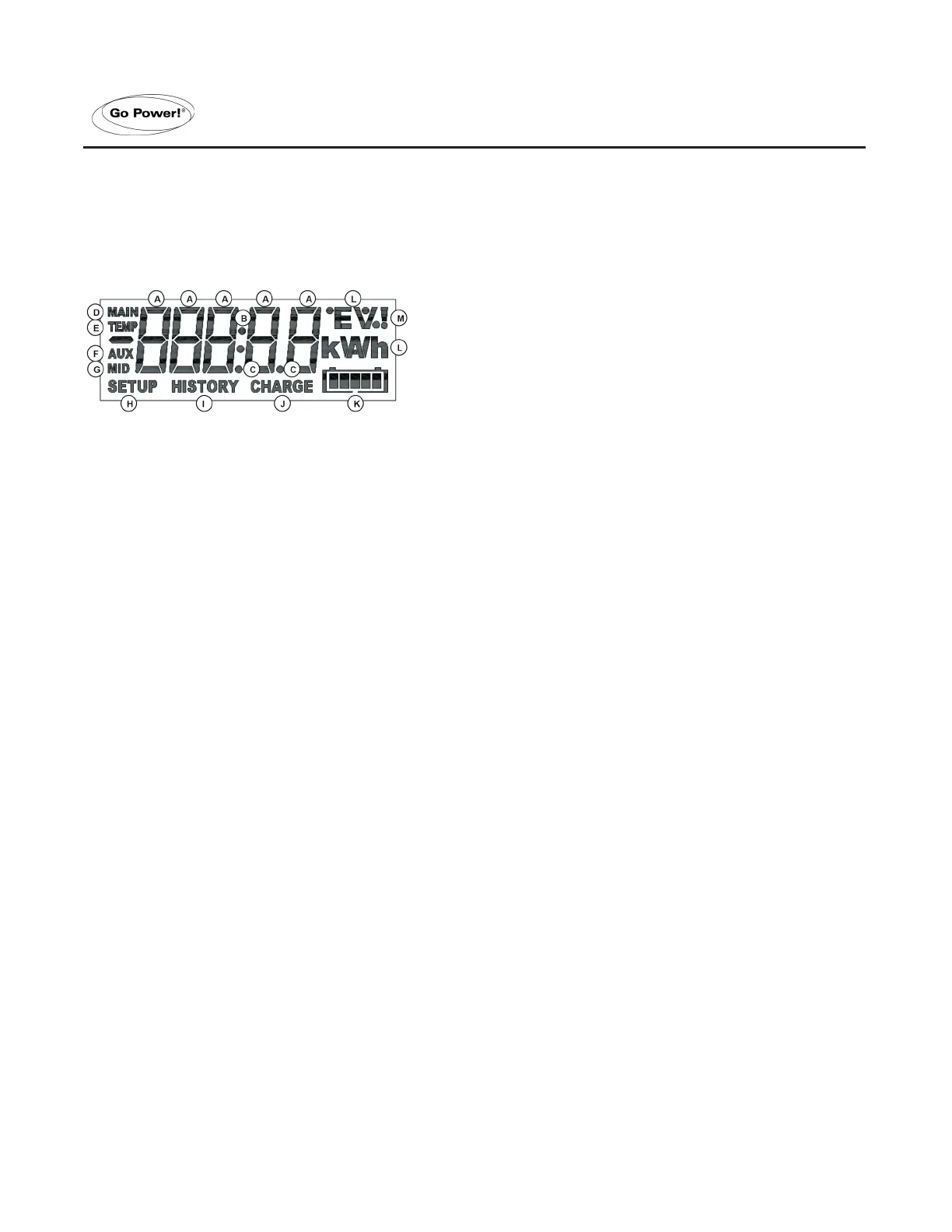

Overview of the GP-BMK-50 display.
A: The value of the selected item is displayed with these digits
B: Colon
C: Decimal separator
D: Main battery voltage icon
E: Battery temperature icon
F: Auxiliary voltage icon
G: Mid-point voltage icon
H: Set-up menu active
I: History menu active
J: Battery needs to recharged (solid) or GP-BMK-50 is not synchronized (blinking
together with K)
K: Battery state of charge indicator (blinks when not synchronized)
L: Unit of the selected item (e.g. W, kW, kWh, h, V, %, A, Ah, °C, °F)
M: Alarm indicator
Scrolling
The GP-BMK-50 features a scrolling mechanism for long texts. The scroll speed can be changed by modifying the
setting scroll speed in the settings menu. See section 4.2.4, parameter 51.
