BlueSense Module
GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49 431 58080-0 Fax: -58080-11
Page 4 / 16
www.go-sys.de info@go-sys.de
G O S y s te m ele k tro n ik G m b H
G O S ys t e m e l e ktr o nik G m b H 24 10 8 K ie l Te l.:0 4 3 1 /5 80 8 00
F a x 5 8 0 8 0 1 1 E m a i l : b lu eb o x @ g o - s ys . d e In te rn et : w w w . g o-s y s.d e
Ty p e : M e s s u m f o r m e r
A n s c h lu s s w e r t e :
A rt . N r. : 4 8 6 M 0 0
2 3 0 V
S N : 1 23 4 1 5 / 1 8
1 Overview
This user manual describes a BlueSense Module.
The BlueSense Module
• receives the signals of the connected sensors,
• generates there from measurement values,
• transduces the measurement values into analogue current values (4 – 20 mA)
1
,
• transmits the measurement values via CAN-bus
2
to a BlueBox,
• switches relays by overrun or underrun of settable alarm values
3
,
Connectable sensors and measuring inputs:
• Conductivity: measuring principle: inductive 0 – 120 mS/cm | 0 – 4000 µS/cm
with integrated temperature sensor: measuring principle: NTC 0 to 80°C
• Temperature: measuring principle: NTC -5 to +80°C
Standard temperature sensor 83k3NTC 25°C ≙ 83 kΩ
• Dissolved oxygen: measuring principle: galvanic cell 0 – 20 mg/l
• Dissolved oxygen: measuring principle: fluorescence 0 – 25 ppm
• pH glass electrode pH 3 – pH 13
• Ion-selective electrode
• Turbidity submersible: scattered light 90°, wave length 860 nm 0 – 3000 FNU
• Turbidity flow through: scattered light 90°, wave length 860 nm 0 – 100 FNU
• ORP -2000 to +2000 mV
• Current input, resistance 50 Ω 4 – 20 mA
• Voltage input 0 – 5 V | 5 – 50 V
• All established sensors with current or voltage outputs, e.g. Cl, ClO
2
, NH
4
, etc.
The number of sensors that can be connected is determined by the delivered configuration.
There are two configurations:
• 1 Control parameter = 1 analogue input
One sensor is connected. One control parameter is measured and where applicable the tempera-
ture as an associated parameter.
• 2 Control parameters = 2 analogue inputs
Two sensors are connected. Two control parameters are measured and where applicable the
temperature for each sensor as associated parameters.

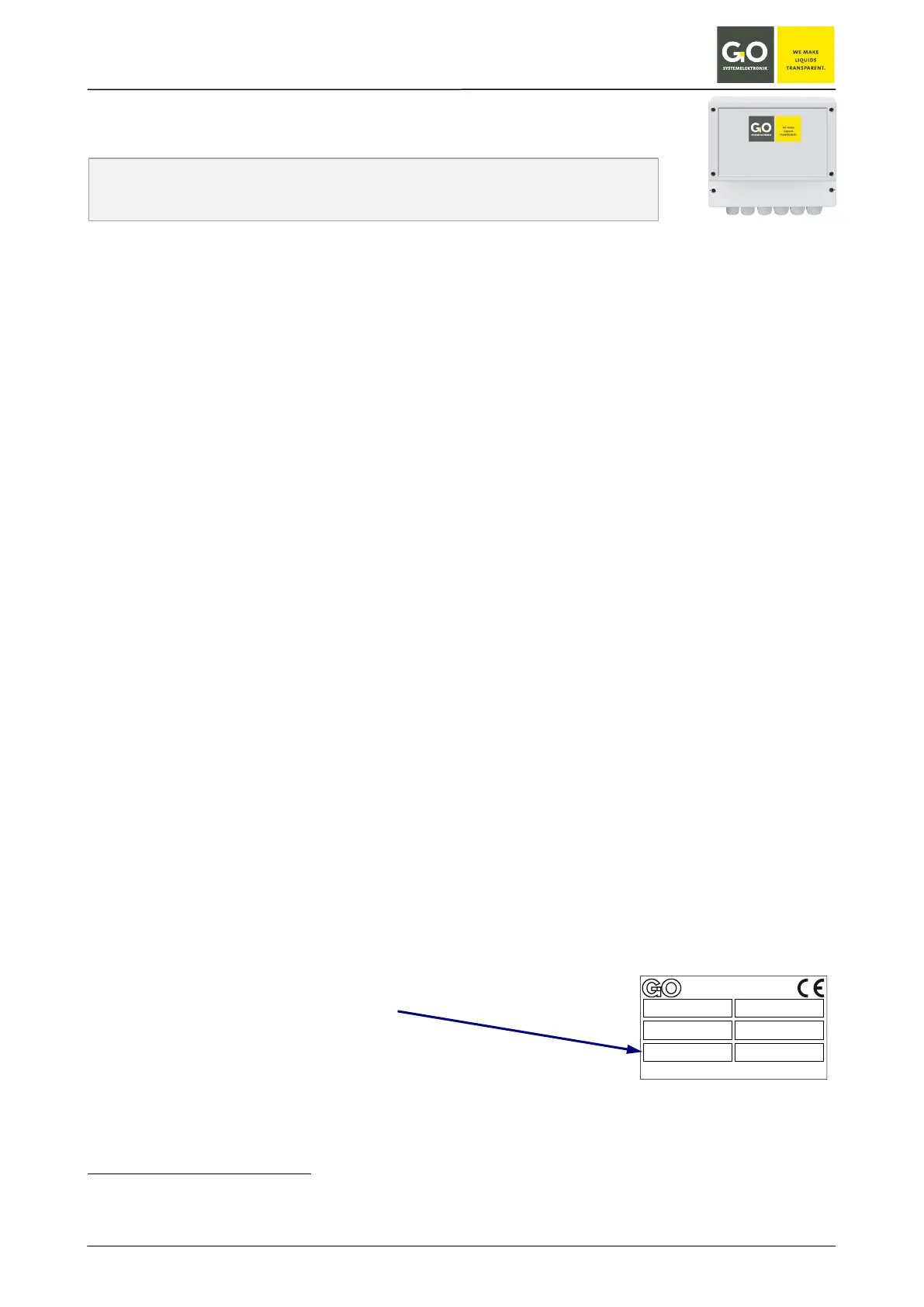

To determine if your BlueSense Module has 1 or two 2 control parameters
please refer to the shipping note, the serial number of the BlueSense Module
is on the right hand side of the housing.
The BlueSense Module has 4 relays:
• 2 relays with a switching capacity of 24 V / 0.5 A (only low-voltage)
• 2 relays with a switching capacity of 230 VAC / 2 A or 24 VDC / 6 A
1
optinal
2
CAN-bus speed is 50 kbit/s
3
Adjustable with the AMS software as part of the BlueBox PC Software from GO Systemelektronik.
In contrast to the BlueSense Transducer the BlueSense Module can only operate together with
a BlueBox. The retrieving of the data and the configuration is done on a BlueBox or with the
BlueBox PC Software.
