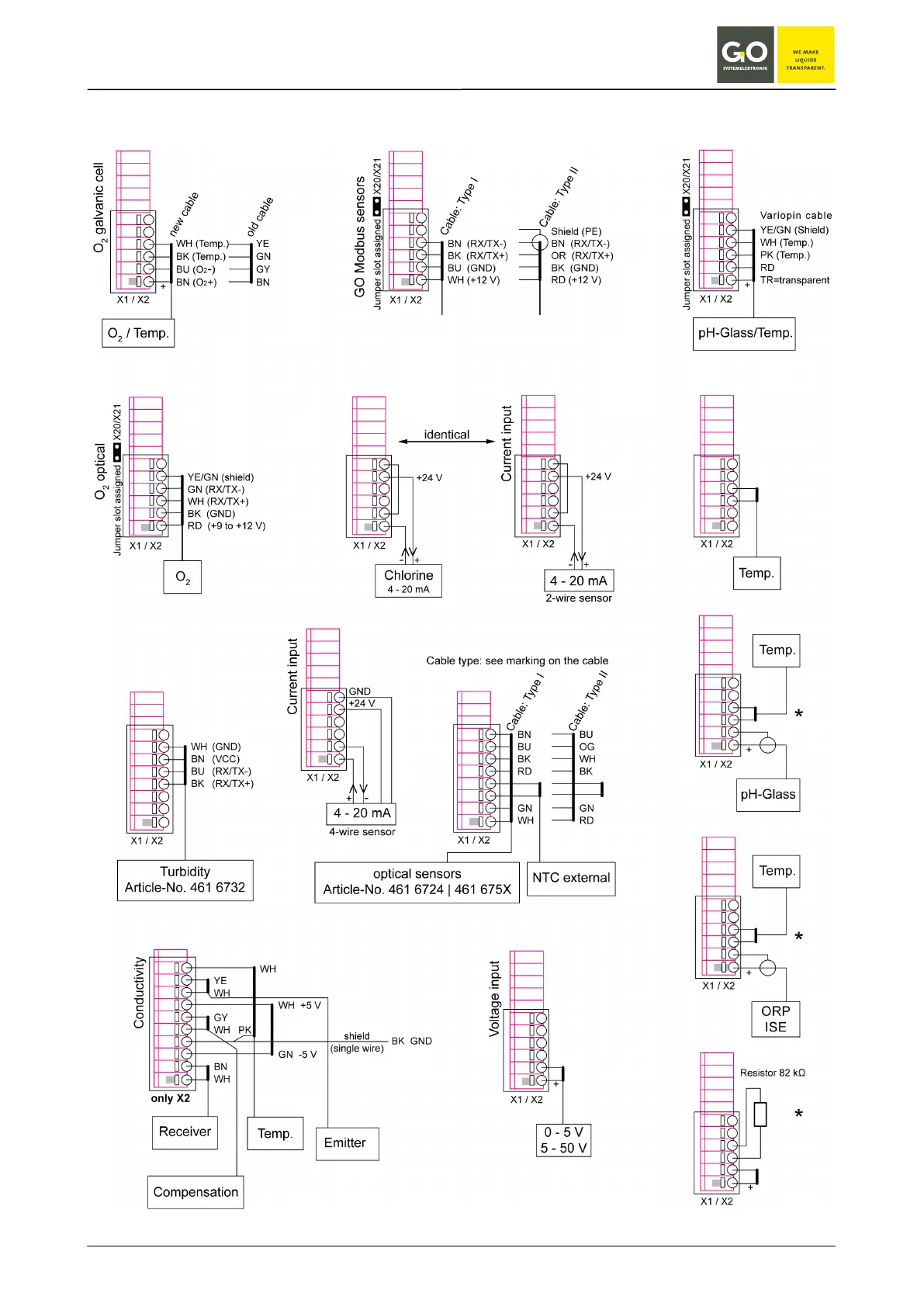

2.4 Sensor Terminal Connection Diagram
* If no temperature sensor is
connected here, the open input
must be closed with a resistor of approx. 82 kΩ.
