DT2 / DT4 series User Manual
6-3. Labels with black marks
If you are using black-mark label stock that has the printer's maximum feed width, the
printer may not recognise the black marks because they are outside the sensor range.
When using label stock with black marks, you should therefore observe the following
restrictions:

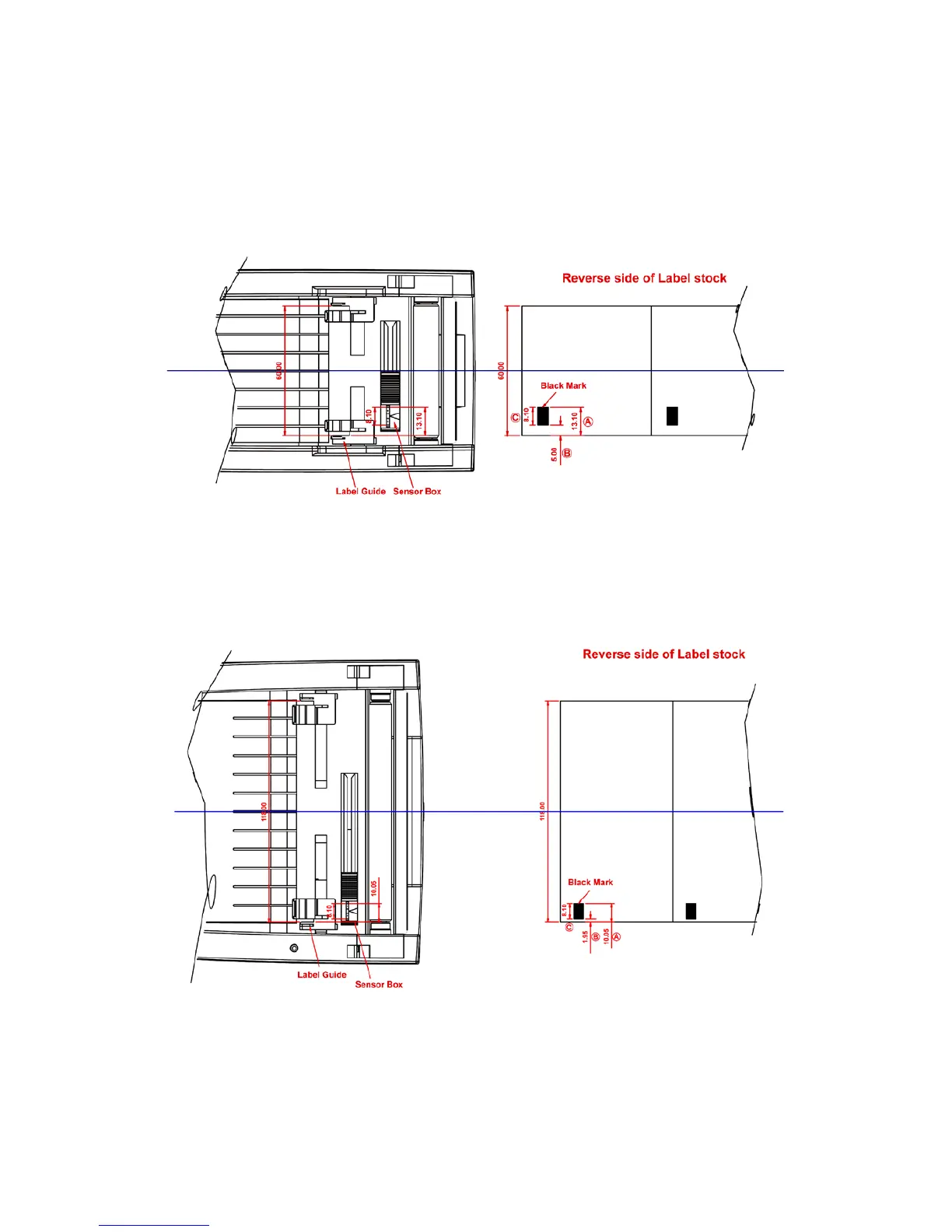

DT2
For 60 mm wide label stock, the black marks should have the following positions and
sizes:
 A > 13.1 mm high
 B < 5mm high
 C > 8.1 mm high
DT4
For 118 mm wide label stock, the black marks should have the following positions and
sizes:
 A > 10.05 mm high
 B < 1.95 mm high
 C > 8.1 mm high
