Godex RT700 User Manual

6
2 Printer Setup

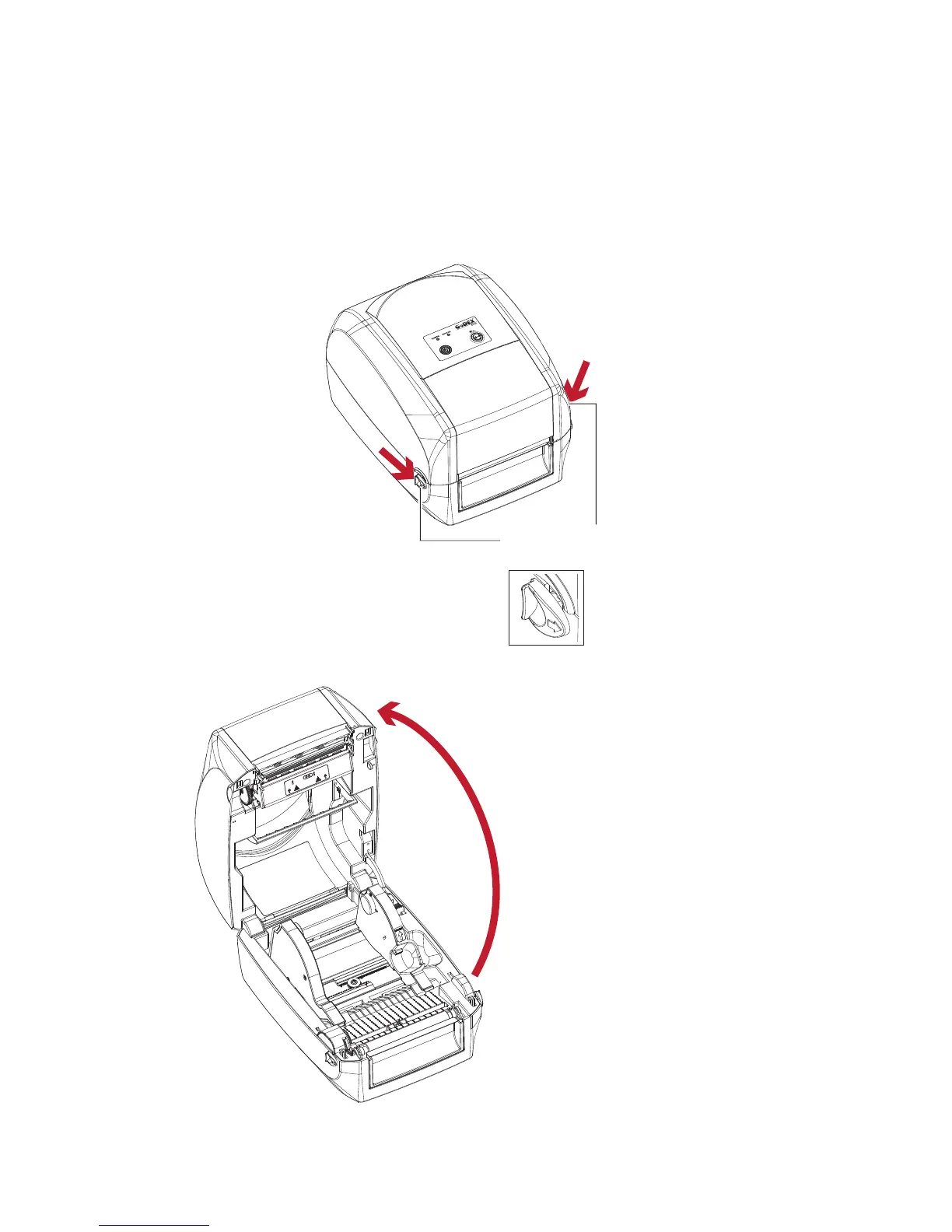

2.1 Open the Printer
Open the Printer Cover and the Printing Mechanism
Place the printer on a flat surface. Open the printer cover by pulling the cover release catches on both sides of the
printer and lift the printer cover.
006
Pull the catches toward the direction
COVER RELEASE CATCHES
Pull the catches for opening the printer cover
Pull the catches toward the direction
The printing mechanism is lifted up
with the printer cover

Godex RT700 Specifications

General

Color	-
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI
Maximum print height	1727 mm
Maximum printing width	108 mm
Display	LED
Product color	Black
Wi-Fi	No
Ethernet LAN	Yes
USB 2.0 ports quantity	1
Connectivity technology	Wired
Flash memory	8 MB
Internal memory	16 MB
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN13, EAN8, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Windows code pages supported	1250, 1251, 1252, 1253, 1254, 1255, 1257
Core diameter	25.4 mm
Media thickness	0.06 - 0.2 mm
Maximum label width	110 mm
Maximum label length	300 m
Maximum roll diameter	68 mm
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	30 - 85 %

Weight and Dimensions

Depth	280 mm
Width	210 mm
Height	186 mm
Weight	2700 g
