5 Accessories
046
4. Remove the platen :

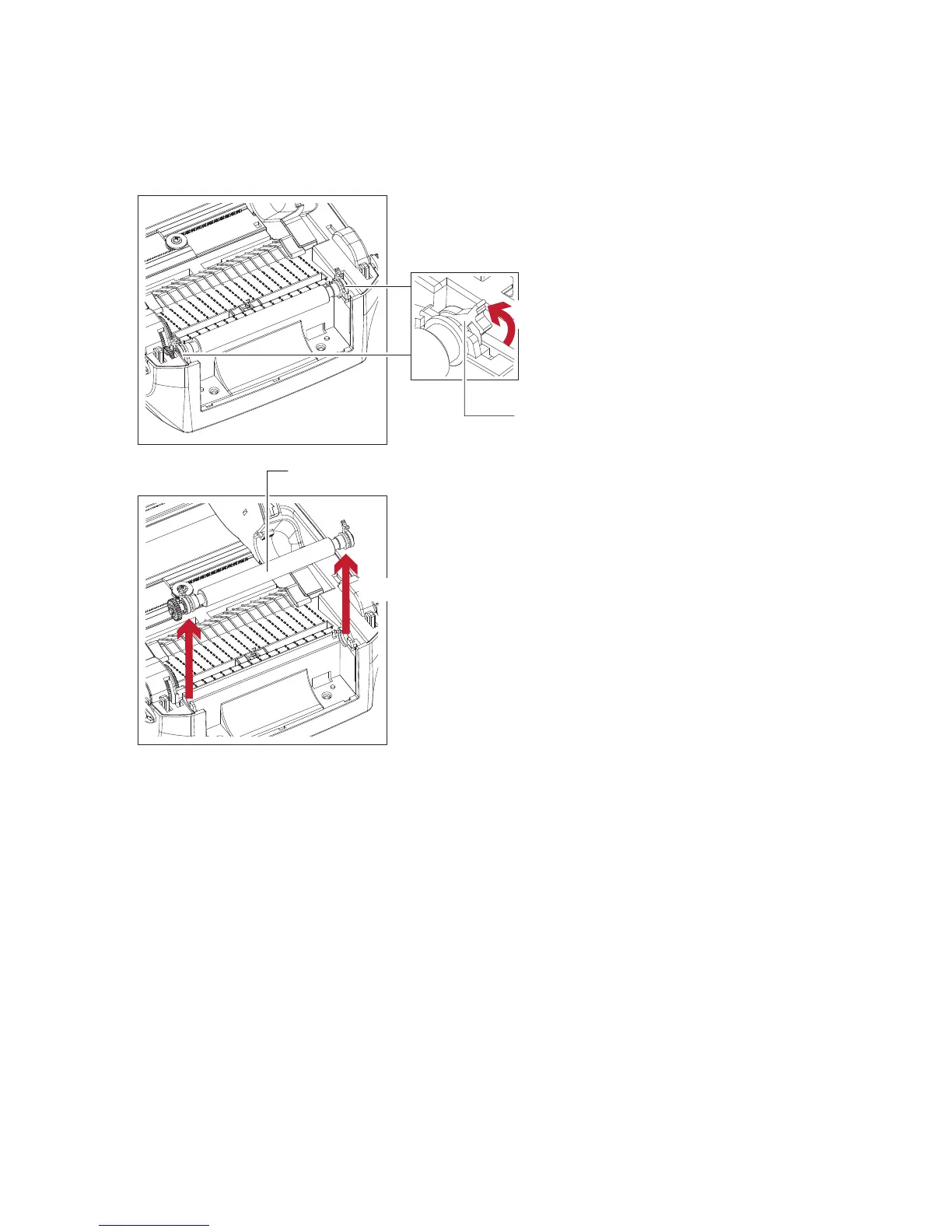

Lift up the release clips on both sides of the platen to release and pull upward the platen.
CLIP
Release the clip
5. Ribbon loading :
Please see the Section 2.2 for further information about Loading the Ribbon.
6. Label loading
Please see the Section 2.3 for further information about Loading the Label Roll Module.
Pull up the platen module
PLATEN MODULE
