1 Barcode Printer

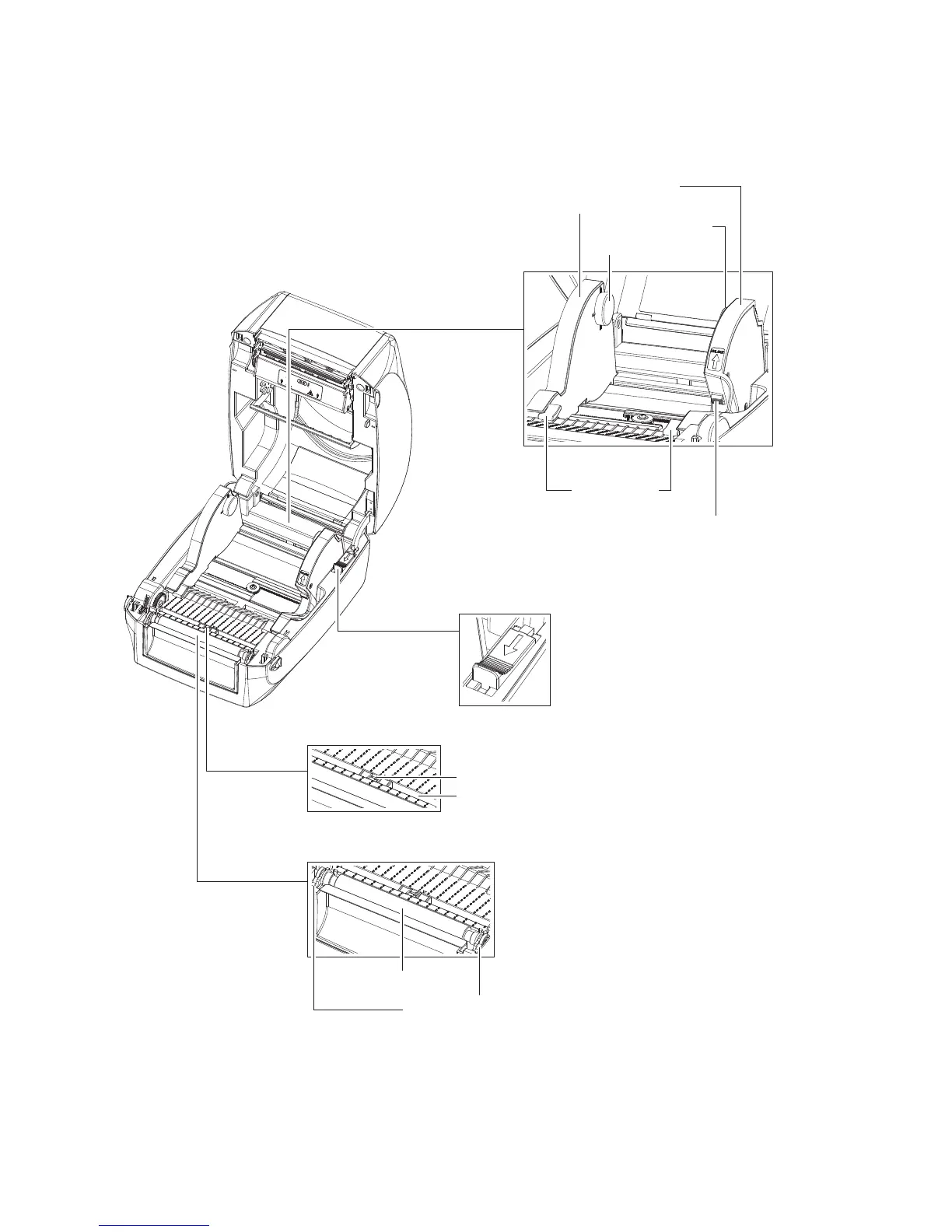

The Internal View of Printer
004
RELEASE CATCH
Release catch for closing
the printer cover
LABEL SENSOR
MODULE
GUIDE TRACK
LABEL SENSOR
PLATEN MODULE
PLATEN
PLATEN LOCKERS
LABEL
SUPPLY
MODULE
RELEASE CATCH
Release catch for opening
the label supply hub
LABEL SUPPLY HUB
Set of 2
LABEL GUIDE
Set of 2
LABEL GUIDE PLATE
Set of 2
