2. Preparation of the tool
Danger - 2.1 Exchange of the mandrels
Make sure that you remove the battery from the riveting tool before replacing the mandrel
and nosepiece, otherwise there is a risk of injury! Select the appropriate mandrel with
corresponding nosepiece that match the size of the blind rivet nut. The procedure for

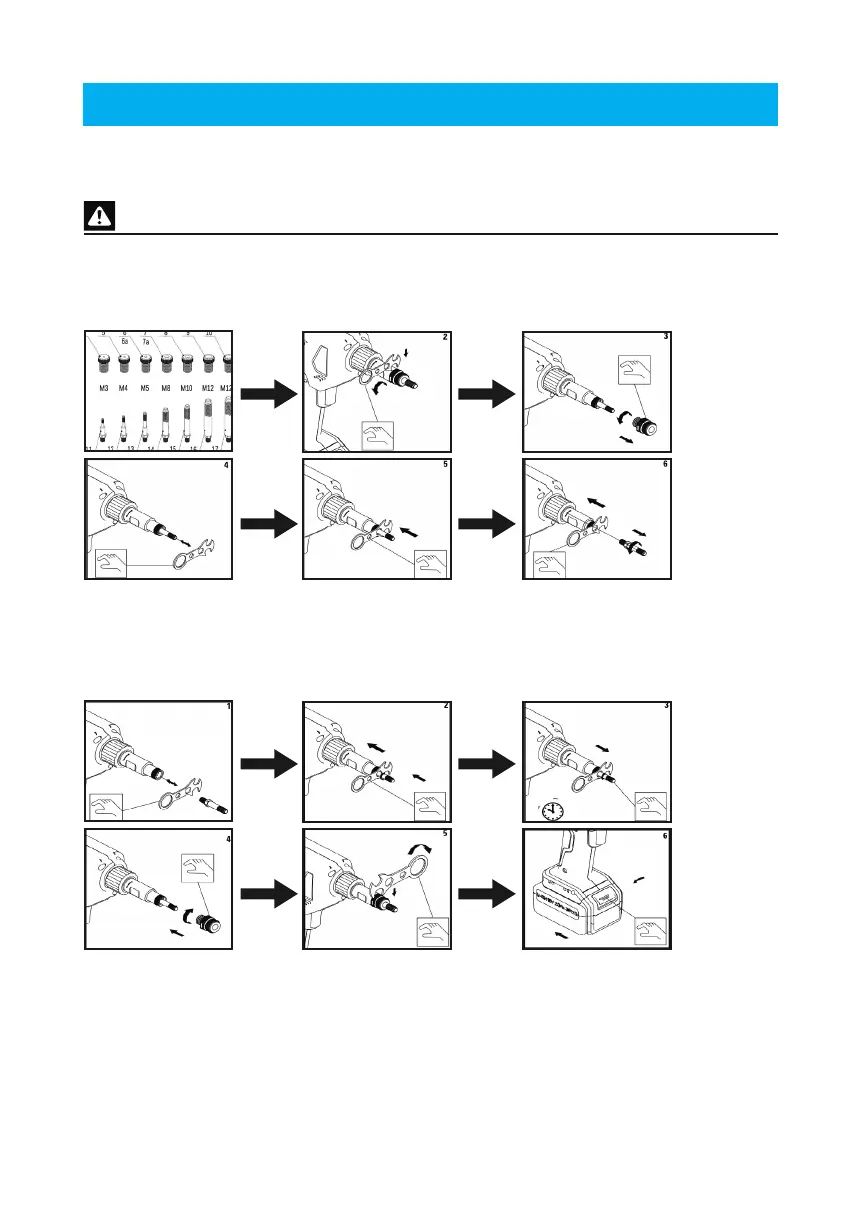

replacing the components is shown in the following illustration:
Before operating the riveting tool, please read the following important instructions carefully.
Make sure that the battery has been removed from the tool as shown in gure ① In the
order shown above: ② loosen the lock nut with the wrench, then ③ unscrew the threaded
sleeve. ④ Guide the round hole of the wrench onto the threaded mandrel. ⑤ Now, use the
wrench to depress the sleeve in the direction of the arrow. ⑥ While depressing the sleeve
unscrew the threaded mandrel.
While making sure the battery is still removed from the tool, ① align the round hole of the
wrench with the mandrel. ② Press the sleeve down in the direction of the arrow and hold in
place. ③ While depressing the sleeve, the mandrel is screwed in a clockwise direction by
hand until the hexagonal part of the mandrel is ush with the sleeve once released. ④ The
nosepiece is screwed on and ⑤ the counter nut is tightened with the wrench. ⑥ Last, the
battery is inserted onto the tool.
