Golden Eagle Talon - Optional Thermostat

OptionalThermostat

Anoptionalthermostatmayhelpyoumaintaina
constanthousetemperatureautomatically.The
controlpanelcanbesetuptwowaystooperate
yourstoveinthermostatmode.
THERMOSTATINSTALLATION

 AMILLIVOLTTHERMOSTATISREQUIRED.
 Unplugstovefrompoweroutlet.
 Removecontrolboardfromstove.

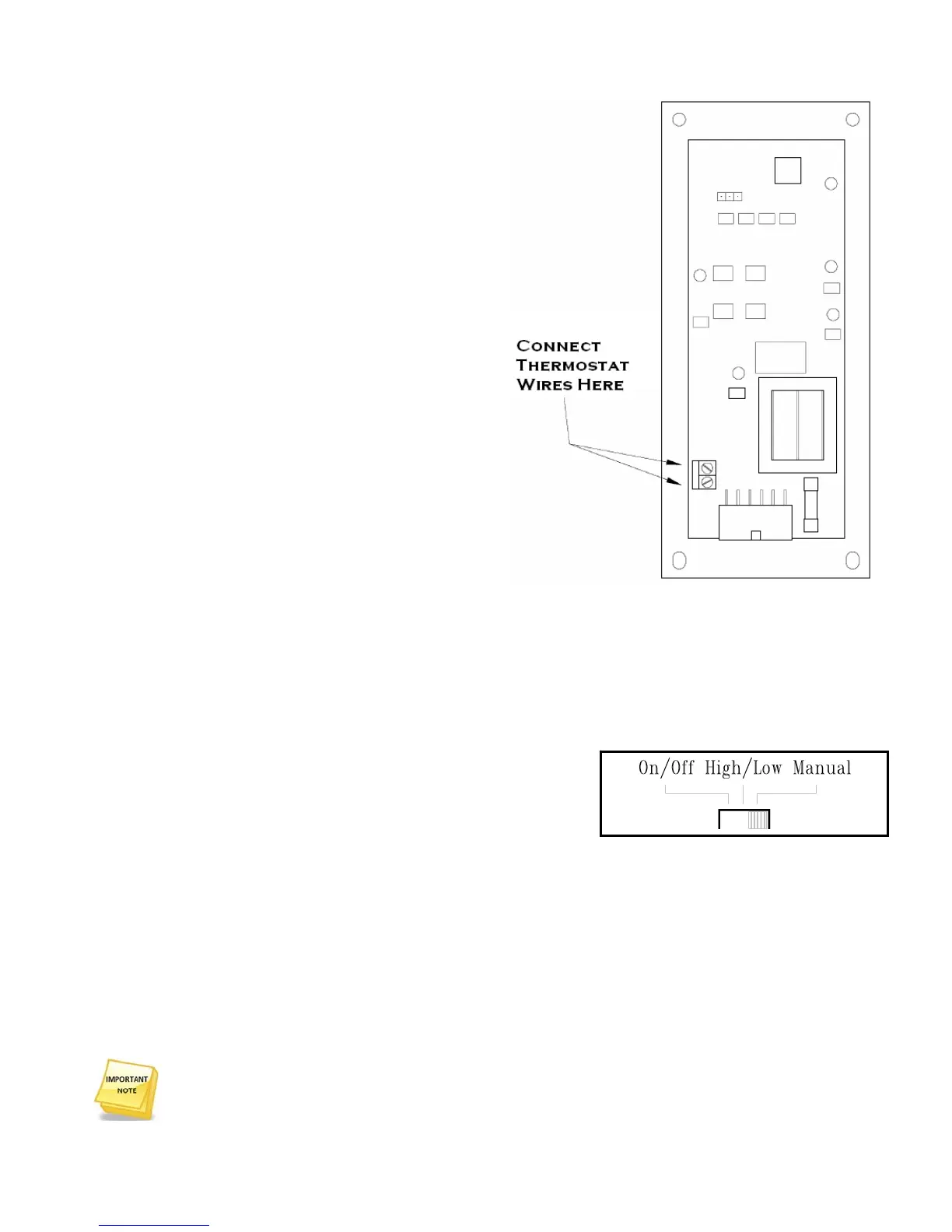

 Thetwothermostatwiresconnecttothe
terminalblockonthelowerleftsideoftheback
ofthecontrolboard.(Seefigure12)
 Insertthewiresintheterminalsideandtighten
thetwoscrews.

MODESOFOPERATION

TOSWITCHBETWEENANYOFTHETHREEMODES
THESTOVEMUSTBESHUTOFF,THENEWMODE
SELECTED,ANDTHESTOVERESTARTED.

MANUALMODE
 USETHISMODEEXCLUSIVELYIFYOUDONOTCONNECTANOPTIONALTHERMOSTAT
 Inthismodethestovewilloperateonlyfromthecontrolpanelasdetailedinthe“OPERATION”
sectionofthisowner’smanual.
HIGH/LOWTHERMOSTATMODE
 Whenengagedinthismodethestovewillautomatically
switchbetweentwosettings.Whenwarmenough,itwill
switchtothe#1orlowsetting.Theroomairblowerwillalso
slowtoitslowestspeed.
 TheHeatLevelAdvancesettingonthebargraphwillstay
whereitwasinitiallyset.Whenthehousecoolsbelowthethermostatsetting,thestovewill
switchtothefeedrateoftheheatleveladvancesetting.
ON/OFFTHERMOSTATMODE
 Inthismodewhenthehomeiswarmenoughthestovewillshutoff.Thefanswillcontinuetorun
untilthestovecools.
 Whenthehomecoolsbelowthethermostatsetting,thestovewillautomaticallyrestartandrun
atthelastfeedratesetting.

Whenin“high/low”or“on/off”thermostatmode–
 Setthe
heatleveltothe#3setting.
 Donotoperatethestovehigherthanthe#3setting.
 Setdampercontrolrodapproximately¼”to½”out.Thiswillvarydependingonyour
installation.Observestovesoperationandadjustdamperasnecessary
Figure12
