OPERATION
Theblowersandautomaticfuelsupplyarecontrolledfromapanelontheleft‐handsideofthestove. 
Thecontrolpanelfunctionsareasfollows.
ButtonControls
ON/OFFSWITCH

 Whenpushedthestovewillautomaticallyignite.Noother
firestarterisnecessary.Theigniterwillstayonforatleast10and
upto15minutes,dependingonwhenProofofFireisreached.
Thefireshouldstartinabout5minutes.
 ThegreenlightlocatedabovetheOn/Offbutton(inthe
On/Offbox)willflashduringtheignitionstart‐upperiod.(See
figure12)
 TheHeatLevelAdvanceisinoperableduringtheignitionstart
period.WhenthegreenlightcontinuouslystaysontheHeatLevel
Advancecanbeadjustedtoachievethedesiredheatoutput.

Ifthestovehasbeenshutoff,andyouwanttore‐start
itwhileitisstillwarm,the“on/off”buttonmustbeheld
downfor2seconds.

FUELFEEDBUTTON

 Whenthe“FuelFeed”buttonispushedandhelddownthe
stovewillfeedpelletscontinuouslyintotheburnpot.
 Whilethestove’saugersystemisfeedingpelletsthegreen
light(inthe“FuelFeed”box)willbeon.(Seefigure11)



DONOTUSETHEFUELFEEDBUTTON
DURINGNORMALOPERATIONBECAUSEIT
COULDSMOTHERTHEFIREANDLEADTOADANGEROUSSITUATION.


HIGHFANSWITCH

 Theroomairfanspeedvariesdirectlywiththefeedrate.The“HIGHFAN”switchoverridesthis
variablespeedfunction.Itwillsettheroomairblowerspeedtohighatanyfeedratesetting.
 Whenthe“HIGHFAN”buttonispushedtheroomairfanwillswitchtoitshighestsetting.
 Whenthisbuttonispushedagaintheroomairfanwillreturntoitsoriginalsettingbasedonthe
HeatLevelAdvancesetting.

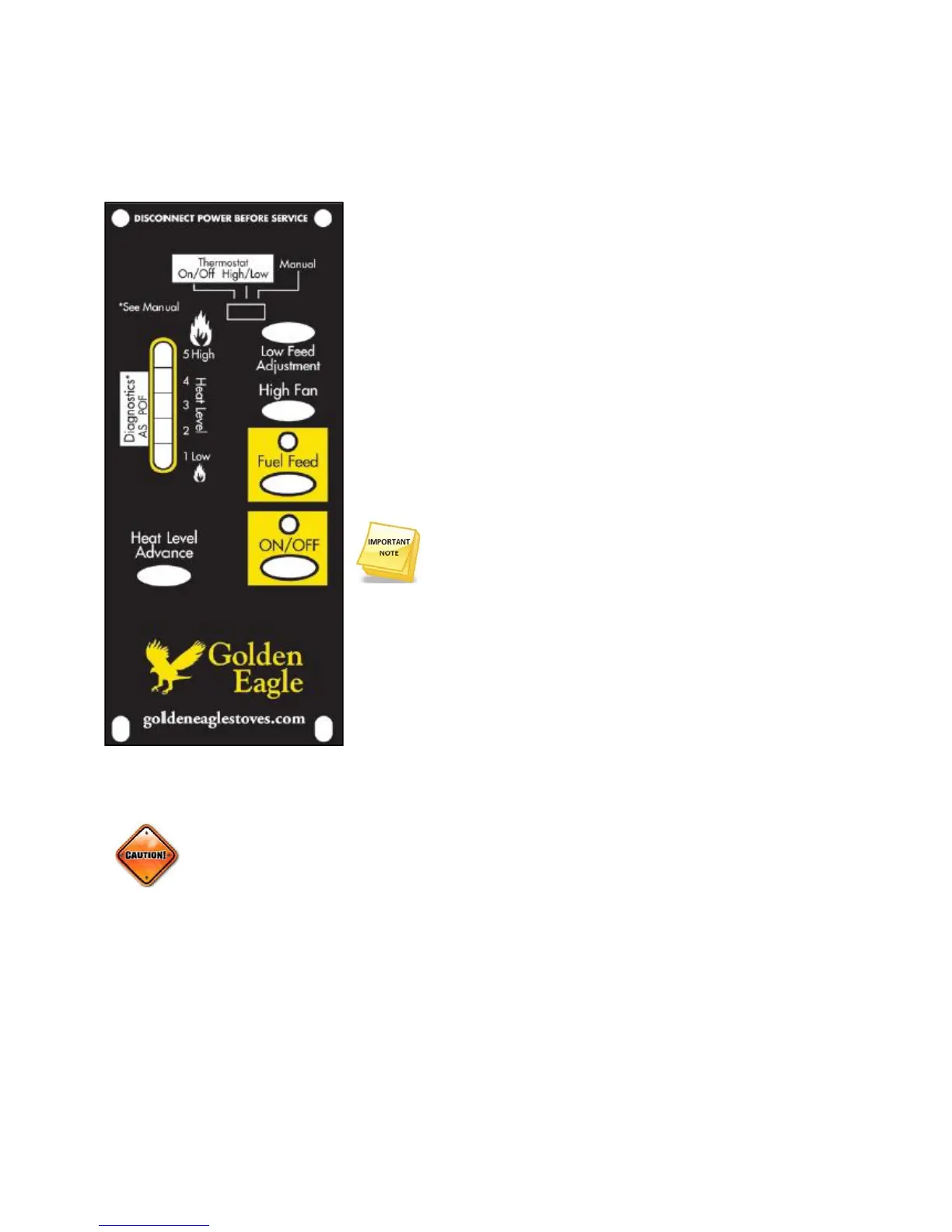

Figure11
