INSTALLATIONTHROUGHSIDEOFMASONRYCHIMNEY

(Refertofigure10)



1. Positionthestove,adheringtothe

clearancesinFigure1.Markthe

centeroftheholewherethepipe

istopiercethemasonrychimney.

2. Itwillbenecessarytobreakout

themasonryaroundthelocation

ofthepipecentermark.Usea4‐

inchdiameterholefor3‐inchpipe

and5‐inchdiameterholefor4‐

inchpipe.

3. Measureandbuildchimneytop

plate.Cutoutholesforchimney

pipe,andifusedtheoutsideair

pipe.

4. Installtheteeonthebottomof

theverticalpipesystemandlower

itdownthechimneyuntilthe

centerbranchoftheteeislevel

withthecenteroftheholeinthe

masonry,asshowninFigure10.

5. Installandsealthetopplatefrom

step3withnon‐hardeningmastic.

Slipthestormcollaroverthepipe,

andwhileholdingthepipeattheproperelevation,affixthecollarwithaminimumofthree¼”

stainlesssteelsheetmetalscrews.Sealalljointsandseamsaroundthecollar.

6. Connectthehorizontalpipebypushingitthroughtheholeinthemasonryandliningitupwith

thebranchinthetee.Pushthepipeintotheteewhiletwistingittolockitintothetee.

7. Ifdesired,oncethehorizontalpipeisinplace,thespacebetweenthepipeandmasonrymaybe

filledwithhigh‐temperaturegrout.

8. Installthetrim

collar.Anadjustablepipelengthandadaptermaybeneededtofinishthe

connectiontothestove.



FOLLOWYOURVENTPIPEMANUFACTURERSINSTRUCTIONSREGARDINGALLASPECTS

OFVENTINSTALLATIONANDCLEARANCES.



Followguidelinesforequivalentventlength.





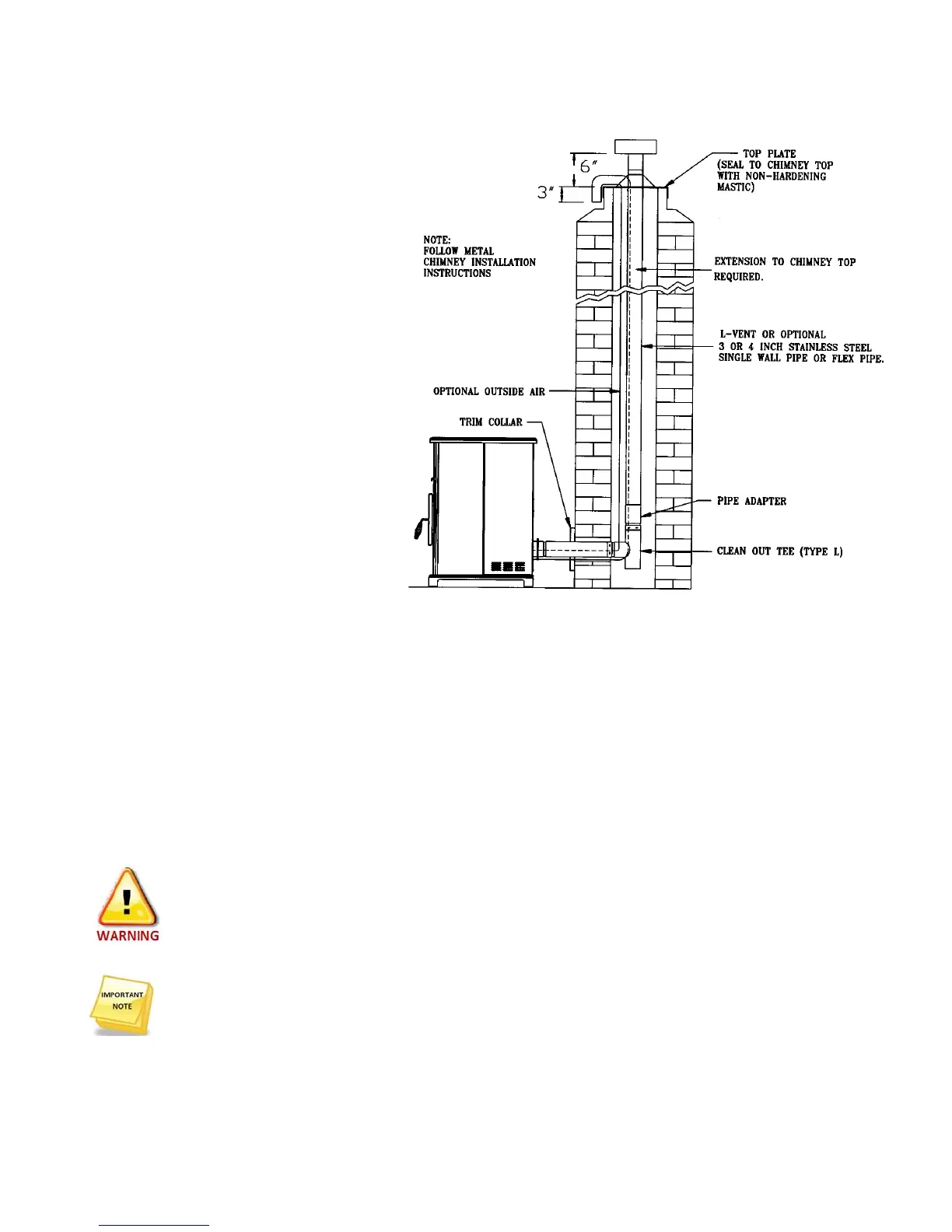

Figure10
